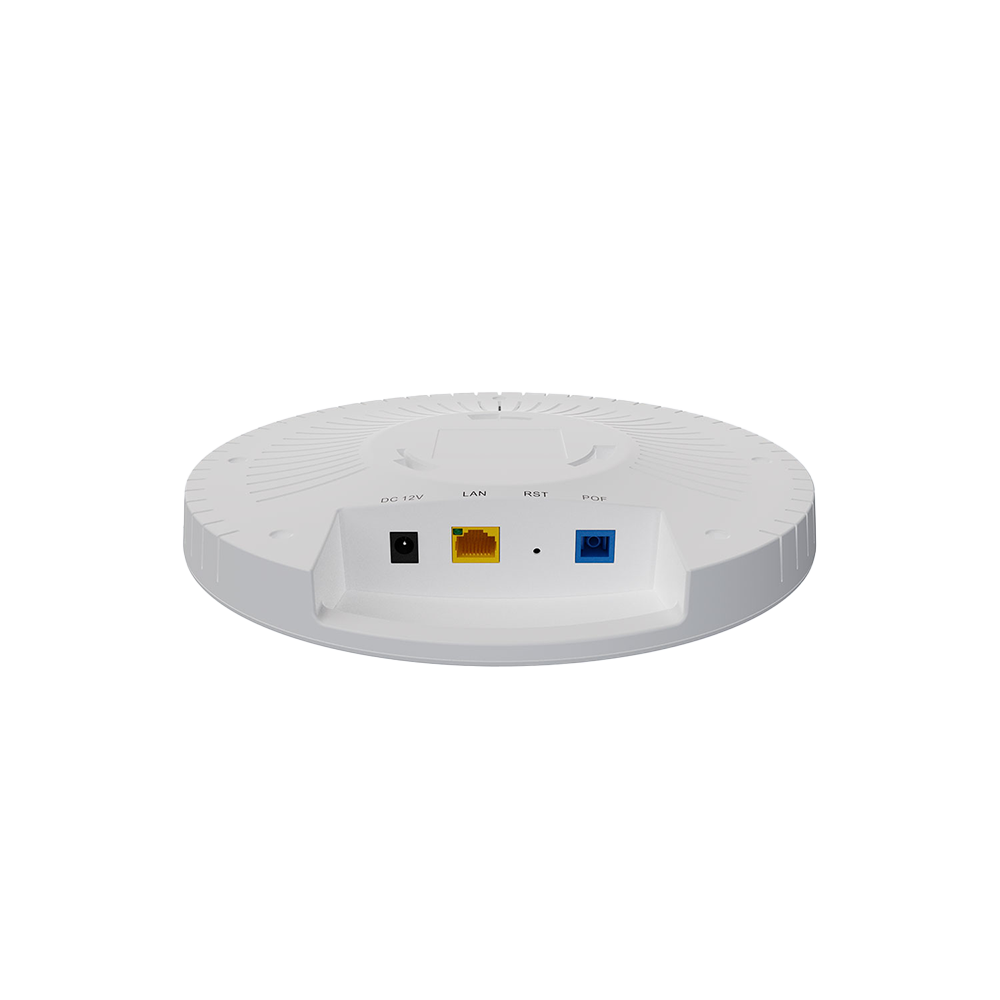

V2801AX30C-A 1XPON(PoF) + 1GE + WiFi6 Ceiling Installation ONT
1XPON(PoF)+1GE+WiFi6 Ceiling Installation ONT
Model: V2801AX30C-A
Spec: 1*XPON(PoF)+1*GE+WiFi6
Weight: 400g
| Hardware Parameter | |
| Dimension | 240mm*240mm*48mm(L*W*H) |
| Net weight | 400g |
| Working condition | Working temp: -10~+55°C
Working humidity:5~95%(non-condensing) |
| Storing condition | Storing temp: -40~+70°C
Storing humidity:5~ 95% (non-condensing) |
| Power adapter | Local power supply:DC 12V, 1A;
PoF power supply:DC 14~60V; |
| Power supply | ≤12W |
| Interface | 1GE+WiFi6 |
| Indicators | PON/LOS, LAN |
| Button | Reset |
| Installation | Ceiling installation |
| Interface Parameter | |
| PON Interface | l 1XPON port(EPON PX20+ and GPON Class B+)
l SC single mode, SC/UPC connector l Support PoF l TX optical power: 0～+4dBm l RX sensitivity: -27dBm l Overload optical power: -3dBm(EPON) or -8dBm(GPON) l Transmission distance: 20KM l Wavelength: TX 1310nm, RX1490nm |
| User Interface | 1*GE, Auto-negotiation,RJ45 ports |
| WLAN Interface | l Compliant with IEEE802.11b/g/n/ac/ax
l 2402 Mbps on 5GHz and 574Mbps on 2.4 GHz l 2.4GHz: 2*2, 5GHz: 3*3; 5*4dBi Internal antennas l Maximum number of connected devices:64 |
| Function Data | |
| Multicast | l IGMP v1/v2/v3, IGMP snooping
l IGMP Proxy l MLD v1/v2 snooping l MLD Proxy |
| Wireless | l Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11b/g/n/ax 2.4GHz
l WiFi Encryption:WPA/WPA2/WPA3(personal), WPS2.0 l Support MU-MIMO & OFDMA l Support Multiple SSID l Support hidden SSID l Support Mesh |
| QOS | l Support 4 queues
l Support SP, WRR, 802.1P and DSCP |
| L2 | l Support 802.1D&802.1ad bridge, 802.1Q VLAN |
| L3/L4 | l Support IPv4, IPv6 and IPv4/IPv6 dual stack
l Support DHCP/PPPOE/Static IP l Support Static route,NAT l Support DMZ, ALG,UPnP l Support Virtual Server l Support DNS Client and DNS Proxy l Support DDNS |
| Security | l Support local access control
l Support IP/MAC filtering, URL filtering l Support Anti-DoS attack function l Support loop detection l Support Parental control function |
| System
Function |
l Support NTP (Network Time Protocol)
l Support scheduled device restart l Support Ping and Traceroute diagnosis l Support Iperf speed measurement function l Support WLAN packet capture |
