GPS Tracker

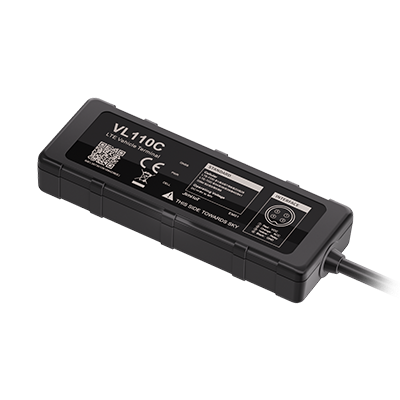

VL110C – LTE Vehicle Terminal
The VL110C is a compact 4G LTE Vehicle GNSS Terminal designed for the management of vehicles of all types. The wide 9-90V input voltage range is compatible with almost all vehicles. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases. It is a perfect tracker for a wide range of use cases -stolen vehicle recovery and the management of motorcycles, passenger cars, and light commercial vehicles.
50.99 €
Koha e arritjes së produktit : 21/06/2025 - 23/06/2025
LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback.
Remote Cut-Off (Fuel/Power)
Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.
9-90V Operating Voltage
Wide operating voltage range is suitable for a huge variety of vehicles, including industrial equipment, scooters, golf carts, and more.
Vehicle Battery Protection
Disconnect from the vehicle’s power supply and operate on its internal battery when the device detects the vehicle battery drops to a critical level.
IP65 Water & Dust Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
GNSS/LTE Jamming Detection
Issue an alarm, trigger a relay for fuel and power cutoff control after the device detects GNSS/LTE jamming (configurable via commands).
| Positioning & Location | |
| Technology | GPS, BDS, GLONASS, LBS |
| Accuracy | <2.5m CEP |
| Tracking sensitivity | –165dBm |
| Acquisition sensitivity | –148dBm |
| TTFF (open sky) | Avg. hot start ≤ 2sec Avg. cold start ≤ 38sec |
| Cellular | |
| Technology | LTE Cat 1 & GSM |
| Frequency |
|
| Power | |
| Battery | 270mAh/3.7V industrial-grade Li-Polymer battery |
| Input voltage | 9–90VDC |
| Power consumption | Standby: <5mA |
| Operating environment | |
| Operating temperature | –20°C to +70°C |
| Operating humidity | 5% to 95%, non-condensing |
| IP rating | IP65 |
| Physical specification | |
| Dimensions | 94(L)*34(W)*15(H)mm |
| Weight | 44g |
| Interface | |
| LED indication | GNSS (Blue), Cellular (Green), Power (Red) |
| SIM | Nano-SIM |
| Digital I/Os | 1*ACC, 1*Relay |
| Analog I/Os | N/A |
| Voltage detection | 0-90V (±0.3V) |
| Data storage | 3000+ GNSS data entries |
| USB | Type-C (for firmware upgrade) |
| Microphone | N/A |
| No. of relays | N/A |
| GNSS antenna | Internal |
| Bluetooth antenna | N/A |
| Serial ports | N/A |
| Feature | |
| Sensors | Accelerometer |
| Scenarios | Vehicle movement alert, Speeding alert, Geo-fence entry/exit, Vehicle battery detection, LTE jamming detection, GPS jamming detection |
| Driving behavior analysis (DBA) | Harsh acceleration, Harsh braking, Harsh cornering, Collision |
| Bluetooth | N/A |
| Configuration support | SMS, PC Tools, Tracksolid Pro, Type-C |
| Certification | CE/FCC/RoHS |
