GPS Tracker

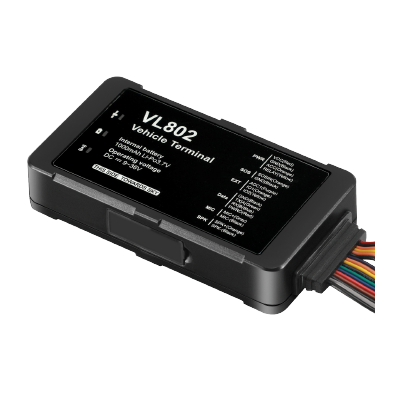

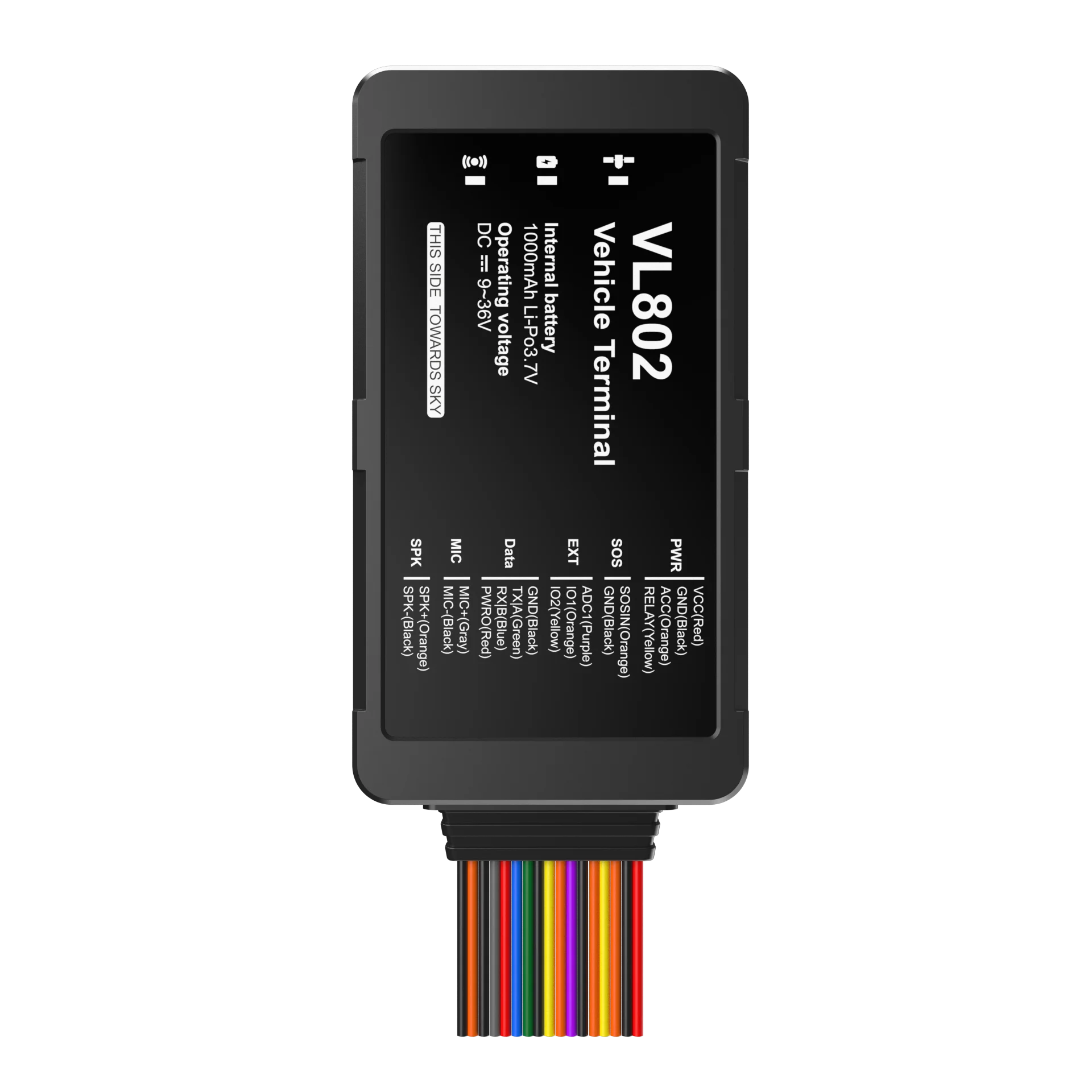

VL802 – LTE Vehicle Terminal
The VL802 is an advanced 4G GPS tracker designed to manage industrial and commercial fleets ranging from passenger cars and trucks to buses. This device’s two-way communication can help fleet managers improve driver management strategies. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases, and the suite of event-triggered alerts helps fleet managers monitor the status of their fleet in real time. With RS485 interface and various other I/Os for peripherals, this powerful device can be customized to streamline your operations and boost efficiency.
77.94 €
Koha e arritjes së produktit : 21/06/2025 - 23/06/2025
LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback.
Two-way Communication
Hands-free communication with your employee instead of using the phone!
Remote Listen-in
Inconspicuous mic allows for remote audio monitoring of the environment around the device.
Panic Button
Contact dispatch or emergency support with a discreet, in-cabin SOS button.
Ignition Detection
Constantly detect the ACC/ignition status of the vehicle.
Remote Cut-Off (Fuel/Power)
Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.
Bluetooth Configuration
Fast and simple device configuration via app for iOS and Android.
Multiple Alerts
Instant alerts for atypical events such as impounding, geo-fence entry/exit, abnormal vibration, speeding, etc.
| GNSS | |
| Positioning system | GPS+BDS+LBS |
| Positioning accuracy | ＜2.5m CEP |
| Tracking sensitivity | -162dBm |
| Acquisition sensitivity | -160dBm |
| TTFF (open sky) | Avg. hot start ≤1sec Avg. cold start ≤32sec |
| Cellular | |
| Communication network | LTE Cat 1/GSM |
| Frequency | VL802-E: LTE-FDD: B1/B3/B7/B8/B20/B28 LTE-TDD: B34/B38/B39/B40/B41 GSM: 850/900/1800/1900MHzVL802-L: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28 GSM: 850/900/1800/1900MHz |
| Power | |
| Battery | 1,000mAh/3.7V industrial-grade Li-Polymer battery |
| Input voltage | 9-36VDC |
| Interface | |
| LED indication | GNSS (Green), Cellular (Blue), Power (Red) |
| SIM | Micro-SIM |
| Data storage | 16+16MB |
| Digital inputs | ACC, SOS |
| Digital outputs | Relay |
| Configurable I/O | 2 special I/Os can be configured as extra digital inputs or outputs |
| Analog detect | Support 0-5V |
| Physical specification | |
| Dimensions | 105 x 56 x 22mm |
| Weight | 120g |
| Operating environment | |
| Operating temperature | –20℃ to +70℃ |
| IP rating | IP65 |
| Feature | |
| Sensors | Accelerometer |
| Scenarios | SOS alert, Speeding alert, Abnormal vibration alert, Fatigue driving alert |
