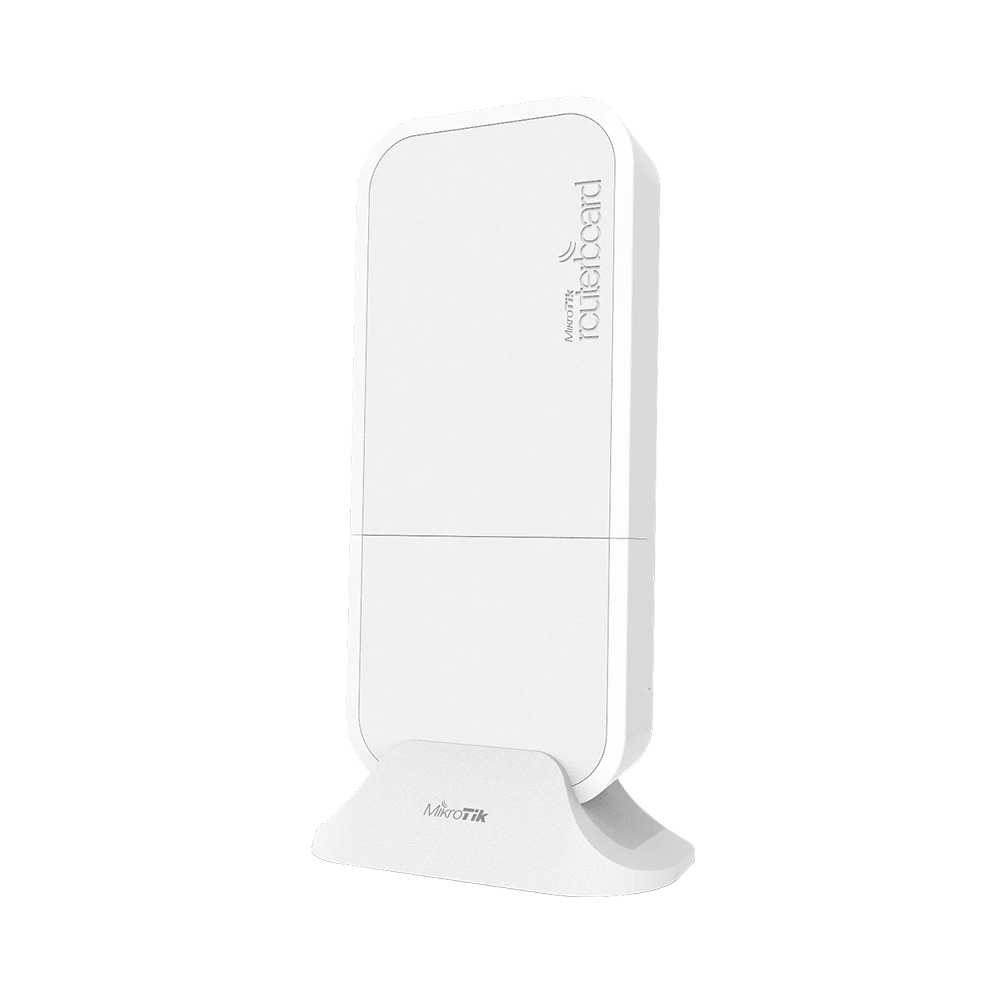

wAP ac
91.76 €
wAP ac with 720MHz CPU, 64MB RAM, 1x Gbit LAN, built-in 2.4Ghz 802.11b/g/n Dual Chain wireless, built-in 5GHz 802.11an/ac Tripple Chain wireless, RouterOS L4, white outdoor enclosure, PSU, PoE injector, International version
Përshkrim
Specifications
| Details | |
|---|---|
| Product code | RBwAPG-5HacT2HnD |
| Architecture | MIPSBE |
| CPU | QCA9556 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | 185 x 85 x 30 mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40 to 50C |
Powering
| Details | |
|---|---|
| Max Power consumption | 12W |
| PoE in | 802.3af/at |
| PoE in input Voltage | 11-57 V |
| Number of DC inputs | 1 (PoE-IN) |
Wireless
| Details | |
|---|---|
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz chip model | QCA9556 |
| Wireless 5 GHz number of chains | 3 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 2 |
| Wireless 5 GHz chip model | QCA9880 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 25 | -95 |
| 11MBit/s | 25 | -90 |
| 6MBit/s | 25 | -95 |
| 54MBit/s | 23 | -80 |
| MCS0 | 25 | -95 |
| MCS7 | 22 | -74 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 25 | -96 |
| 54MBit/s | 25 | -81 |
| MCS0 | 25 | -96 |
| MCS7 | 24 | -77 |
| MCS9 | 23 | -72 |
