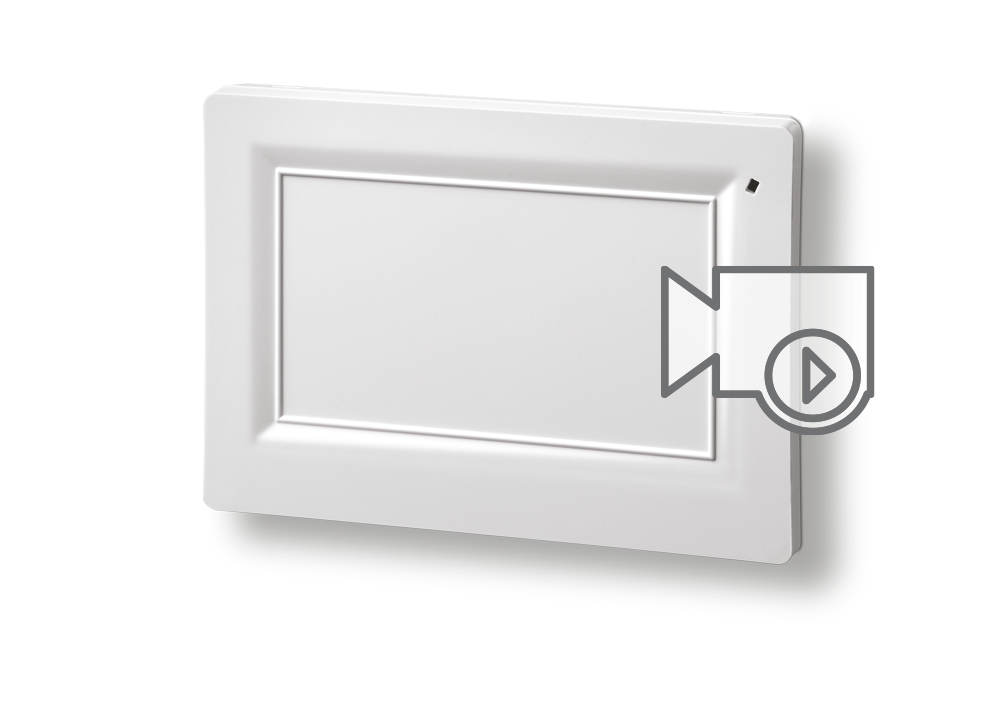

Xsat WS 4 Video IMQ-Incert
Bidirectional wireless zone module (expansion/repeater) for video and non video detectors
– Wireless technology: bidirectional dual FM antenna GFSK FM 868 Mhz
– Connection: RS485 serial
– Terminals: 2 programmable in/out
– Frames memory: up to 125 video events complete with 10 frames each
– Image speed: 100Kbit / s (about 25 ‘’ full upload)
– Power supply and consumption: 13.8 Vdc, 45 mA max
– Dimensions (LxWxH): 129,5 x 16 x 92,5 mm
– Compatibility: XTREAM, CAPTURE, RAPTOR and bidirectional devices WS 4 and WS 4 VIDEO serie
CERTIFICATION IMQ-INCERT EN 50131 Grade 2
With RAPTOR system:
– Bidirectional wireless device repeater: up to 125 radio sensors (not for sirens and remote controls)
With XTREAM / CAPTURE system:
– Wireless devices: 32 wireless detectors, 64 remote controls, 1 wireless siren, 32 smart home modules
