Fiber Splicer
Showing all 4 results
-
Fiber Optic Tool Kit & Splicer, Fiber Optics, Fiber Splicer
FTTH Fusion Splicer
Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.
> We has been dedicated to R & D, manufacturing fusion splicer from 2010, and successfully obtained 5 patents for the fusion slicer research. KOS-01 is our latest developed product. It is more concise and smaller in size and has obtained 2 patents for its new technologies.KOS-01
SKU: n/a -
Fiber Splicer

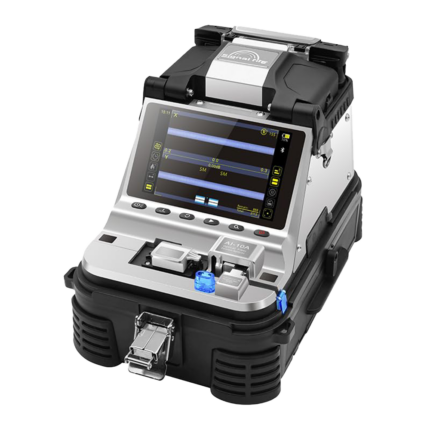

Optical fiber fusion splicer AI 10A
- With 5-inch 800X480 high-resolution screen, is up to 300 times focus magnifications, making it easy to observe the fiber with naked eyes;6s fast splicing 15s fast heating,the working efficiency increased by 50% compared to ordinary splicing machines.
- 3 In 1 Fiber Holder suit for SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable;Splice Loss:0.025dB(SM)、0.01dB(MM)、0.04dB(DS/NZDS);Fiber diameter:Cladding Diameter：80-150μm、Coating Diameter：100-1000μm;Fiber Cleave Length:Coating less than 250µm：8-16mm、Coating less than 250-1000µm:16mm.
- Built-In power meter (Wavelength 850nm/1300nm/1310nm/1490nm/1550nm/1625nm); Built-in Visual Fault Locator:Power:15mw,2hz flashing And Constantly Bright Mode.
- Configure it on the phone app,splicing is easy to operate.10 Languages to switch freely :English,french,Russion,Italian,Portuguese,Polish,Spanish,Thai,Arabic. splicing record storage, synchronize to the phone, the server to cloud storage unlimited.
- It is especially suitable for optical fiber and cable projects, maintenance scientific research, railway, petrochemical, electric power, military and public security and other communications fields.
SKU: 9382 -
Fiber Splicer

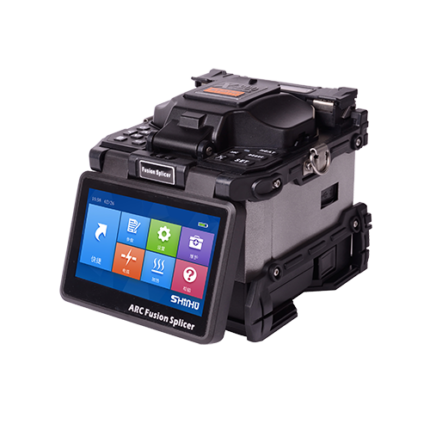

Optical fiber fusion splicer SHINHO X-900
- 6 motors accurate core alignment
- Identifying fiber types automatically
- Upgraded CPU with 30% power saving
- 6 seconds typical splicing and 16 seconds heating
- Automatic & real-time ARC & fiber position calibration
- Industrial design, anti-shock, anti-dust & waterproof
- Real-time heating temperature monitoring
- Suitable for bare fiber, patch cords, drop cable etc.
SKU: 9381
