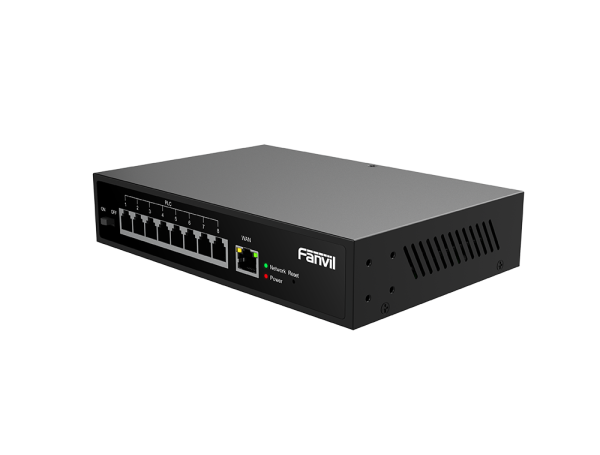

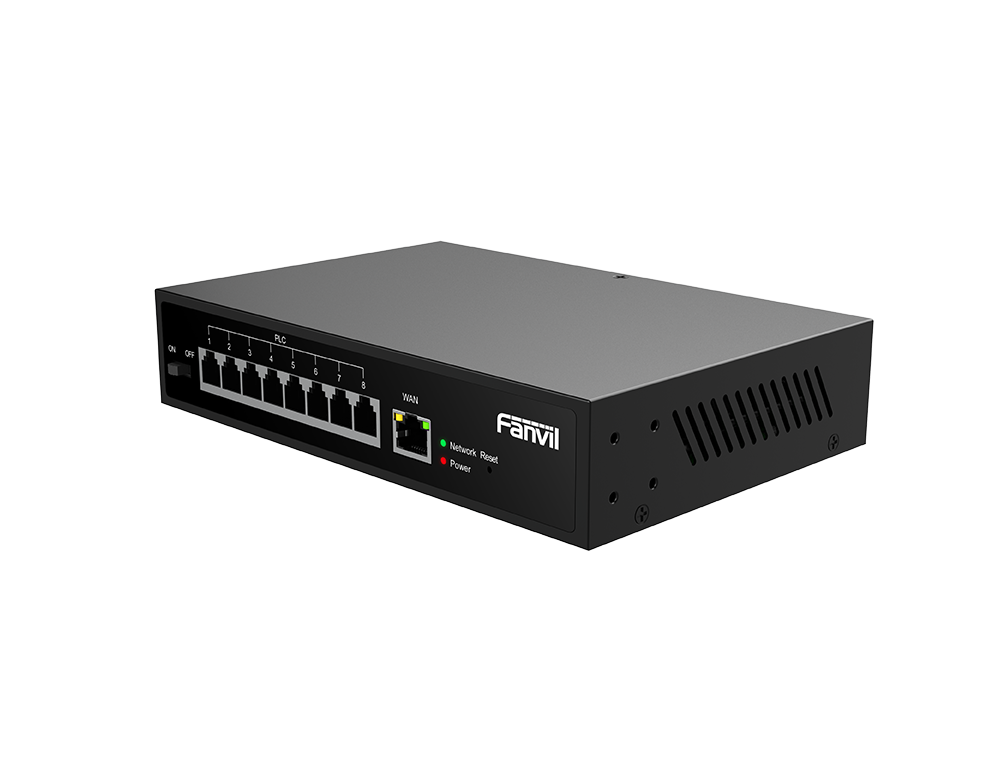

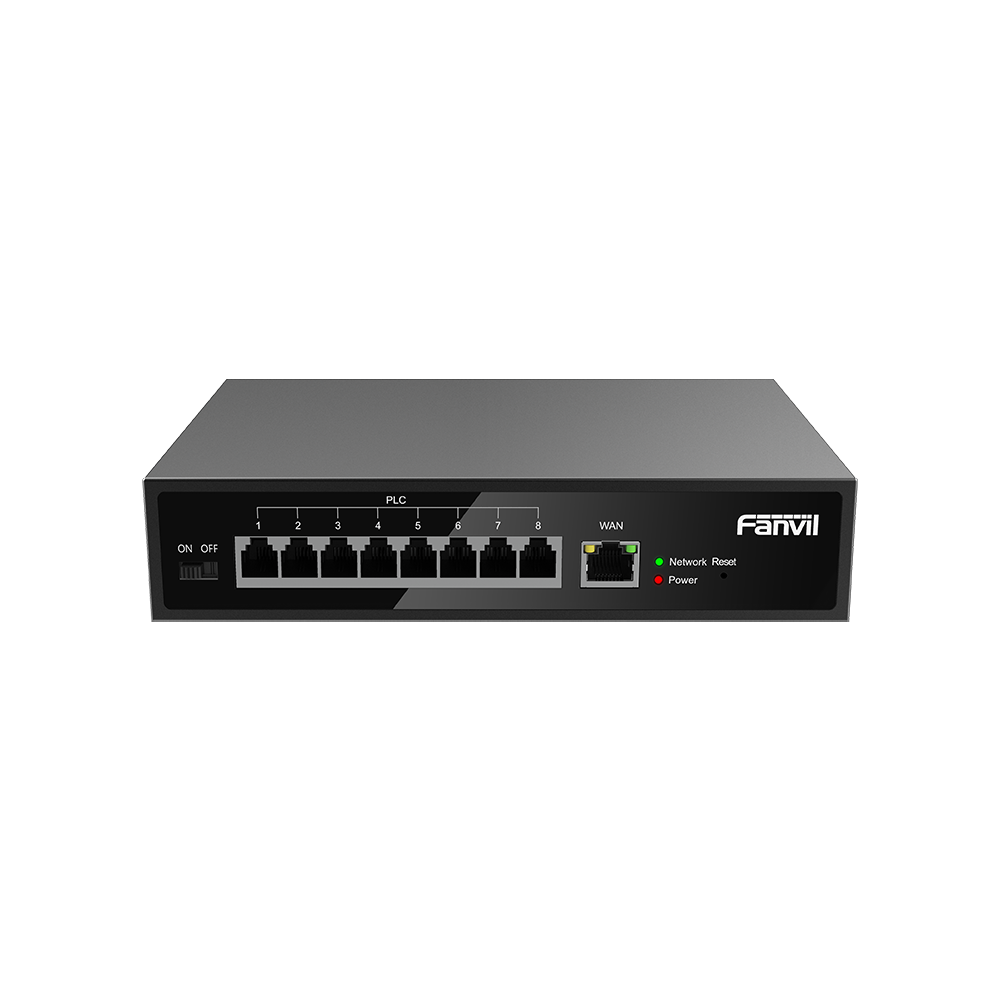

2-wire PoE Switch PN8
Fanvil PN8 is a 2-wire PoE switch featuring a unique design that facilitates the reuse of existing wires. It requires no cumbersome installation or wiring, simply plug it in and it’s ready to use. This not only saves installation time but also significantly reduces overall wiring costs. This innovative feature makes PN8 an ideal choice for quick and efficient deployment in existing infrastructure, providing users with a more convenient and cost-effective experience.
153.00 € 168.30 €
-Plug and play. Support network and power supply for 2-wire
devices, with a transmission distance of up to 300 meters
-Reuse existing wires (PSTN & AWG cables) to save wiring costs
-Cascade via Ethernet cables for a more stable transmission
-Built-in power adapter, supports 100~240V wide voltage input
-Built-in mode switch (Network&power supply / Network supply
only)
Specifications
Scenario Office, Community, Hotel, Renovation of an old building
Body Galvanized steel
Color Gunmetal
Network Interface Uplink Port (RJ45 * 1)
2-Wire Interface 8 * RJ11 interface, network and power supply to Fanvil 2-wire devices
Reset 1
Device Power Switch 1
Status Indicator Lights
Power indicator light (Red)
Network indicator light (Green)
Power 100V-240V input, max 80W output
Transmission Distance
300 meters
CAT 5e, 20AWG, RVV 2*0.5
Working Temperature -20℃~+50℃
Storage Temperature -20℃~+70℃
Installation Wall-mounted/Flush-mounted
Weight 11.33KG
Qty/CTN 10 PCS
Package
PN8 * 1
Power connection cable * 1
Accessories package * 1
Product Size（LWH） 195*130*40mm
Box Size（LWH） 310×66×156mm
