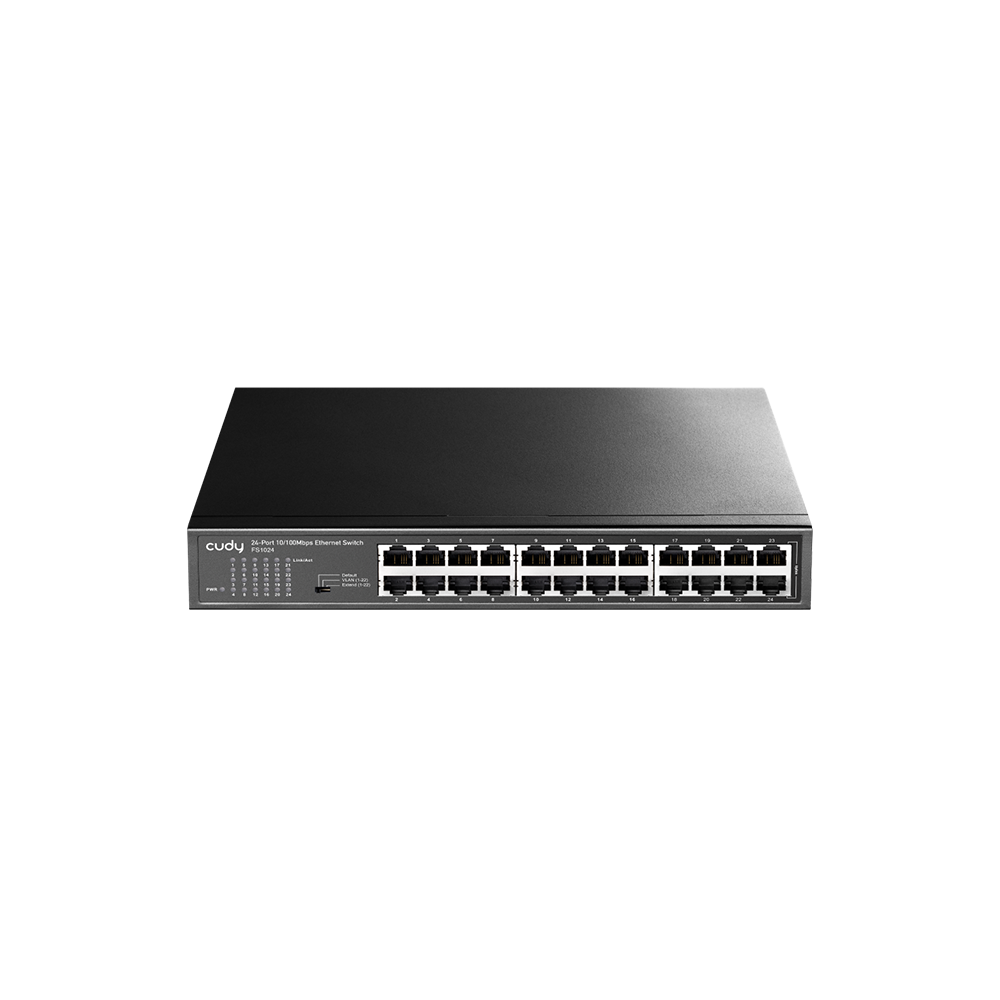

24-Port 10/100 Mbps Ethernet Switch (FS1024)

24-Port 10/100 Mbps Ethernet Switch (FS1024)

FS1024

42.04 €

Koha e arritjes së produktit : 29/03/2025 - 31/03/2025

A 24-FE switch with VLAN/Extend functions, and a fanless cooling system.

  •  24× Fast Ethernet Ports
  •  Default/VLAN/Extend Modes
  •  Extend for 250 Meters Transmission
  •  VLAN for Clients Isolation
  •  270×182×44 mm (10.63×7.17×1.73”)
Category:
Model Version FS1024 1.0
Interfaces 10/100 Mbps RJ45 Ports 24
Extend Mode Ports #1~#22
VLAN Mode Ports #1~#22
LED
  • Power
  • Link/ACT of Each Ethernet Port
Power Input AC Inlet
Physical Buttons VLAN/Default/Extend DIP Switch
Performance Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
MAC Address Table 8192
Max Switching Capacity 4.8 Gbps
Max Forwarding Rate 3.57 Mpps
Jumbo Frame 2 KB
Packet Buffer 2 Mbit
Power Basic Power Saving True
Power Methods AC
AC 90-260V~, 50/60Hz
Max Power Consumption 3.0W
Idle Power Consumption 1.6W
Switching 802.3 Protocols
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3x Flow Control
Reliability Grounding Methods
  • Three-Prong Plug
  • Grounding Point
EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Mechanical Dimension 270×182×44 mm
10.63×7.17×1.73 inches
Product Weight 997.0 g (35.17 oz.)
Casing Material Metal
Installation
  • Desktop
  • Rackmount via Brackets
Package Content
  • FS1024
  • Power Cord
  • Installation Guide
  • Mounting Kit
Ordering Information Retail Package Dimension 367×245×84 mm
14.45×9.65×3.31 inches
Retail Package Weight EU: 1675.0 g (59.08 oz.)
Units per Carton 5
Carton Net Weight EU: 8.4 kg (18.52 lbs)
Carton Gross Weight EU: 9.2 kg (20.28 lbs)
Carton Dimension 38×44×26.5 cm
14.96×17.32×10.43 inches
