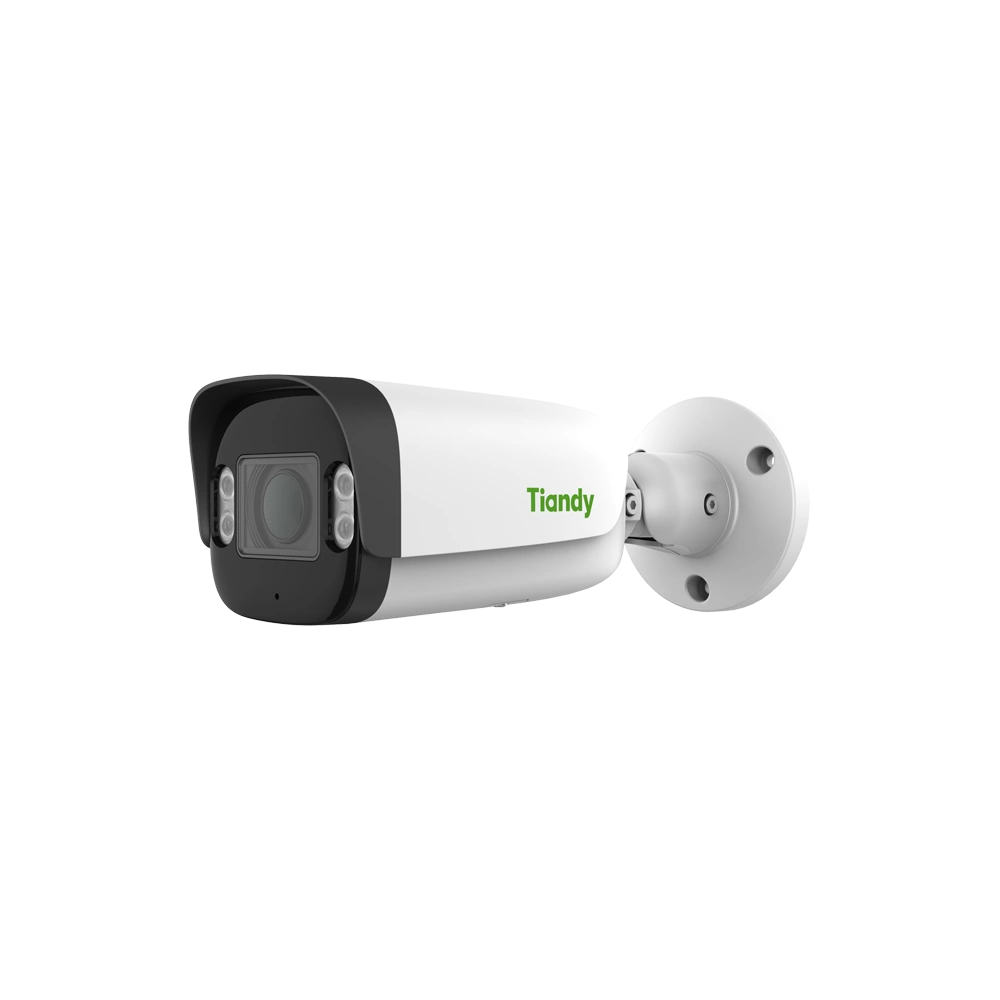

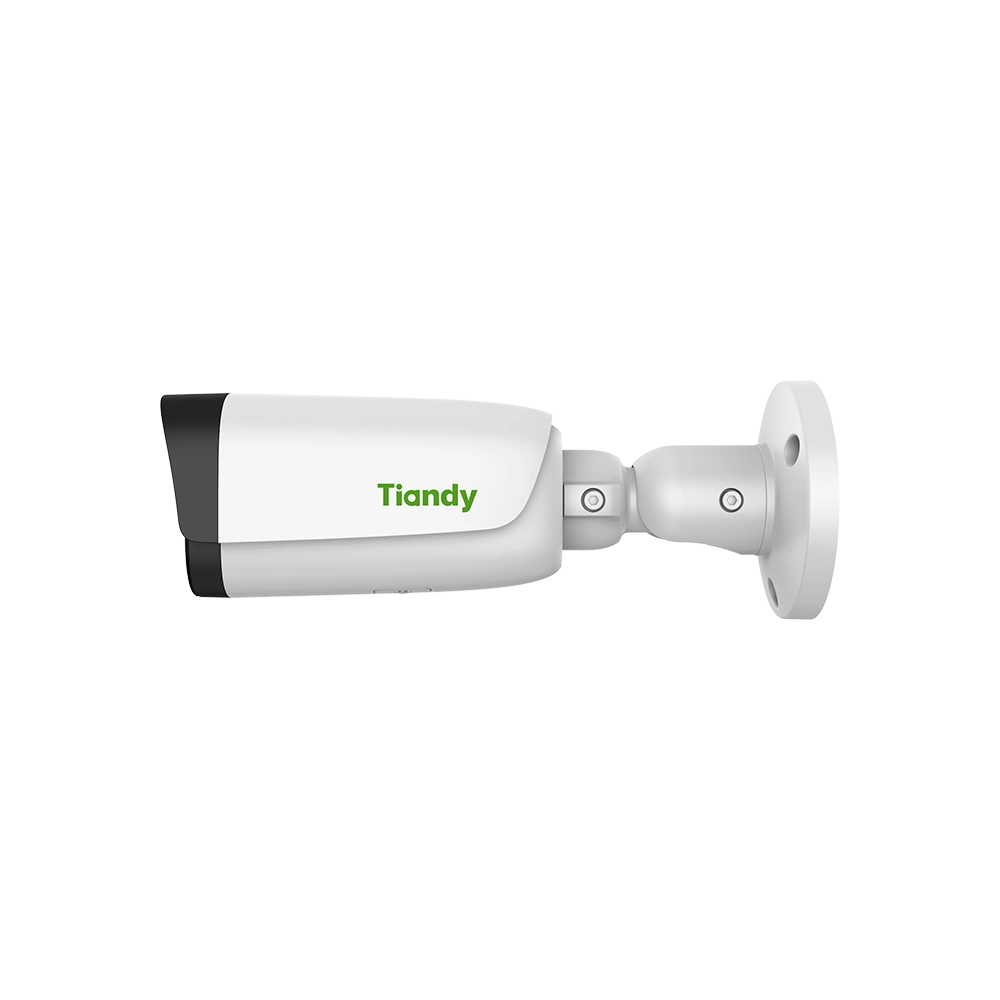

5MP Fixed Color Maker Bullet Camera (TC-C35US 3LRA-4)
Përshkrim
Kjo kamerë IP 5MP me lente 4mm ofron detaje të larta në distanca të gjata, falë DORI deri në 80 metra, WDR 120dB dhe analitikës inteligjente për njerëz dhe automjete. Me IR deri në 80m, ndriçim me dritë të bardhë, ruajtje microSD deri në 512GB dhe mbrojtje IP67, është zgjidhje ideale për monitorim profesional të ambienteve të jashtme dhe perimetrave kritikë.
Specifications
| Category | Specification |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Minimum Illumination | Color: 0.002 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR |
| Shutter Time | 1s – 1/100000s |
| Day & Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | 120 dB |
| Signal-to-Noise Ratio | >39 dB |
| Angle Adjustment | Pan: 0–360° / Tilt: 0–90° / Rotate: 0–360° |
| Lens Type | Fixed focal lens |
| Focal Length | 4 mm |
| Lens Mount | M12 |
| Aperture | F1.6 (Fixed) |
| Field of View | H: 91° / V: 46.4° / D: 107° |
| DORI Distance | Detect: 80 m / Observe: 31.5 m / Recognize: 16 m / Identify: 8 m |
| IR LEDs | 4 |
| IR Distance | Up to 80 m |
| White LEDs | 4 |
| White Light Distance | Up to 15 m |
| Video Compression | S+265 / H.265 / H.264B / H.264M / H.264H |
| Video Bit Rate | 32 kbps – 6 Mbps |
| Audio Compression | G.711A / G.711U / ADPCM_D |
| Audio Sampling Rate | 8 kHz / 32 kHz / 48 kHz |
| Maximum Resolution | 5 MP (3072 × 1728 @ 30 fps) |
| Main Stream | PAL: 25 fps / NTSC: 30 fps (multi-resolution) |
| Sub Stream | PAL/NTSC up to 30 fps |
| BLC / HLC | Yes / Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto / Semi-Auto / Manual / Presets |
| ROI | 8 rectangular static areas |
| OSD | Up to 48 characters per region |
| Privacy Mask | 4 static black areas |
| Defog | Yes |
| General Alarms | Motion Detection, Mask Alarm |
| Exception Alarms | Disk Full, Disk Error, IP Conflict, Network Disconnection |
| Linkage Method | Recording, Capture, Notify Surveillance Center |
| Video Analytics | Human & Vehicle Classification, Tripwire, Perimeter |
| Behavior Analysis Rules | 2 rules per scene |
| ANR | Yes |
| Network Protocols | RTSP, HTTP/HTTPS, TCP/UDP, SNMP, DHCP, DNS, IPv4, SSH, FTP |
| System Compatibility | ONVIF (Profile S/T/G), SDK, CGI, Milestone |
| Remote Connection | ≤ 2 users |
| Client Software | Easy7 VMS |
| Mobile Client | EasyLive Plus |
| Network Interface | 1× RJ-45 (10/100 Base-T) |
| Built-in Microphone | Yes |
| Reset Button | Yes |
| On-board Storage | microSD / microSDHC / microSDXC up to 512 GB |
| RTC | Yes |
| Operating Temperature | -35°C to 65°C |
| Operating Humidity | ≤95% RH |
| Power Supply | DC 12V ±25%, Max. 8W / PoE IEEE 802.3af, Max. 9W |
| Protection | Surge 4000V, ESD 6000V, IP67 |
| Dimensions | 239 × 90 × 90 mm |
| Package Dimensions | 280 × 125 × 140 mm |
| Gross Weight | 1.147 kg |
