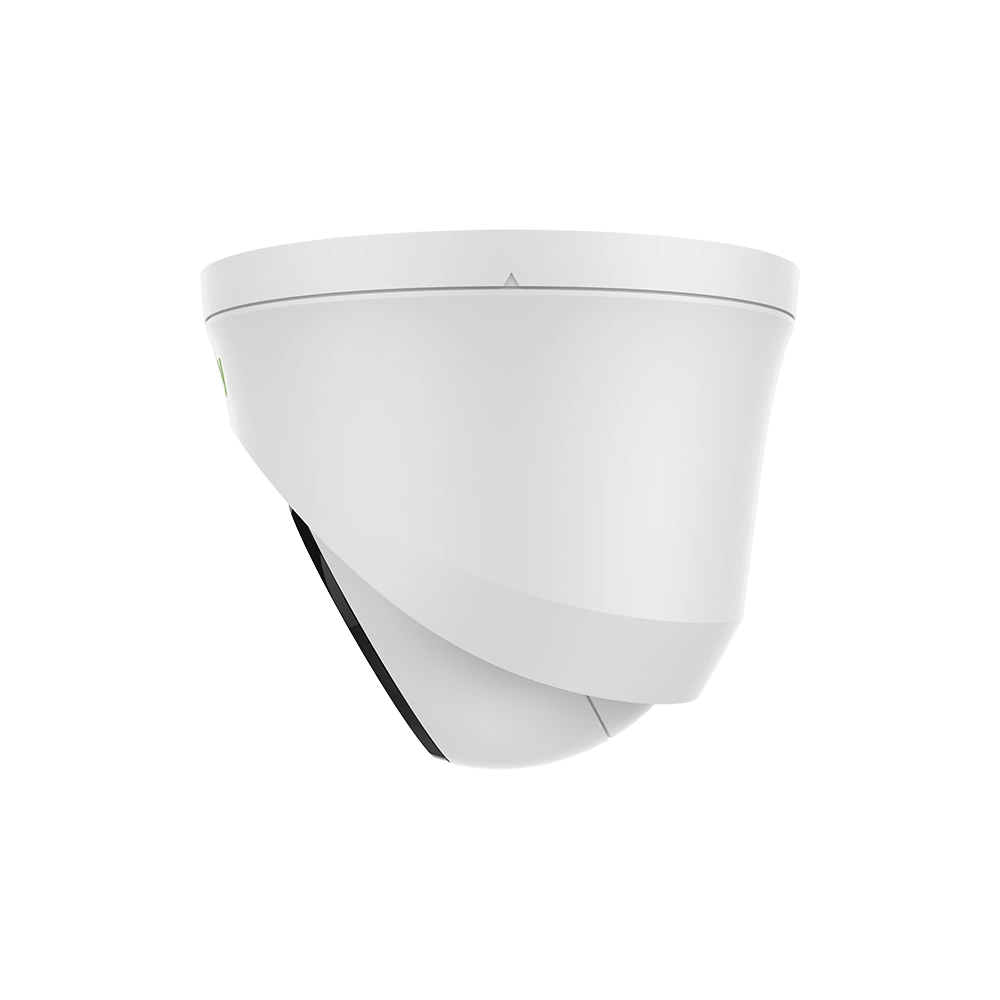

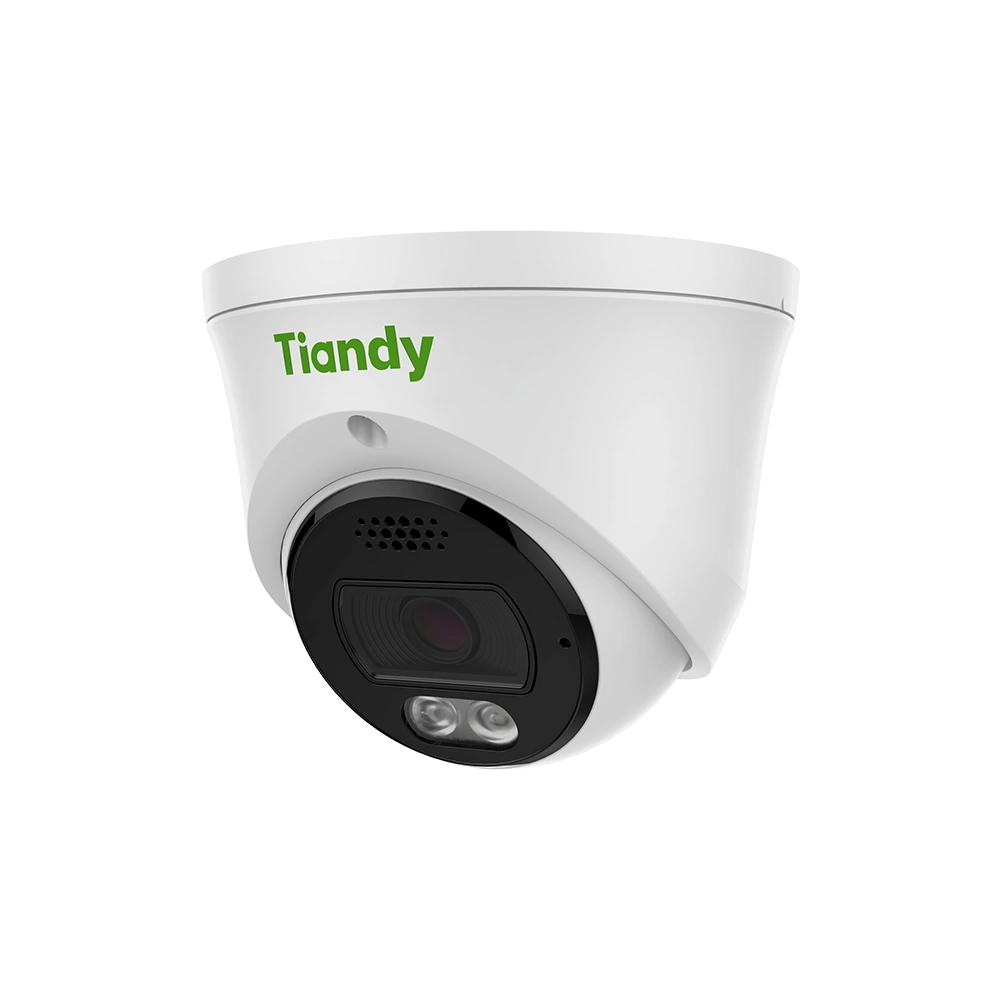

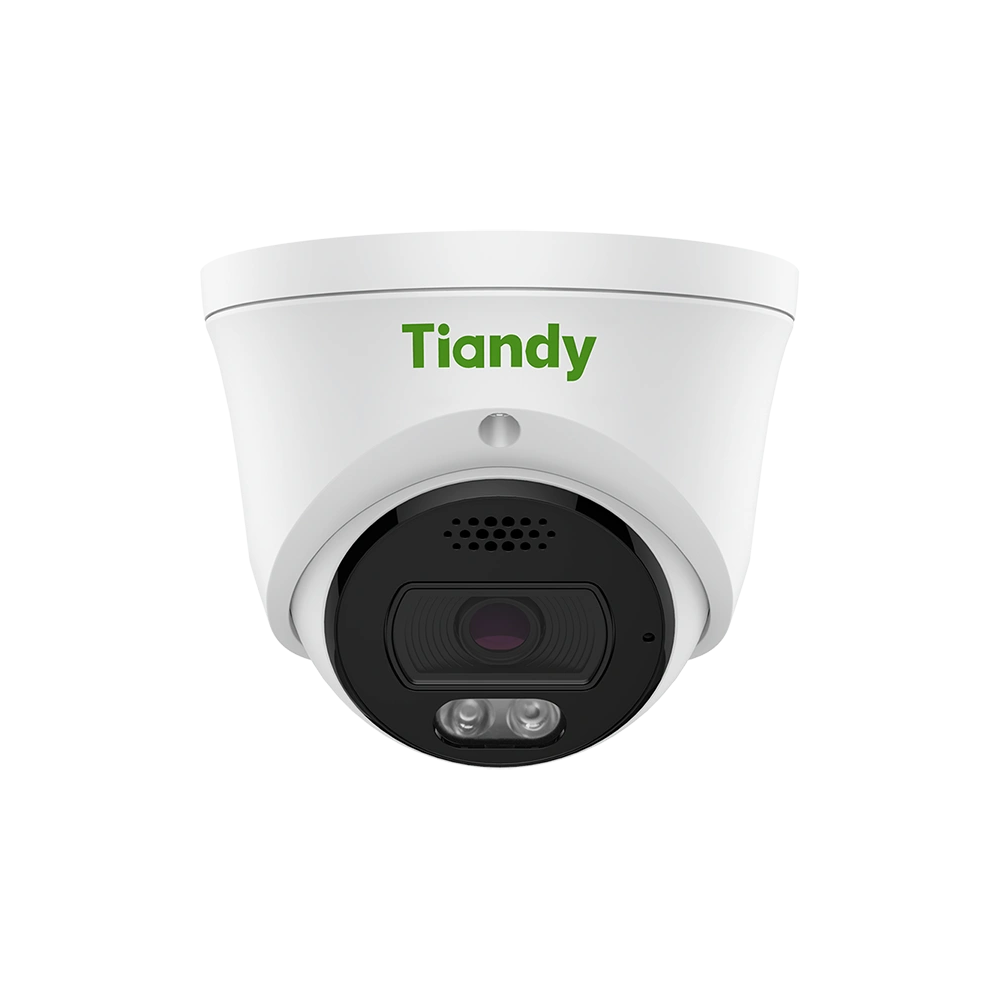

8MP Fixed Color Maker Turret Camera (TC-C38XS 3LRA-28)
156.95 €
Përshkrim
Kjo kamerë IP 8MP me lente 2.8mm ofron rezolucion ultra të lartë 4K, kënde të gjera shikimi dhe analitikë inteligjente për njerëz dhe automjete. Falë WDR 120dB, IR Smart, ruajtjes microSD deri në 512GB dhe mbrojtjes IP67, është ideale për monitorim profesional të ambienteve të jashtme, perimetrit dhe objekteve me kërkesa të larta sigurie.
Specifications
| Category | Specification |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Minimum Illumination | Color: 0.002 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR |
| Shutter Time | 1s – 1/100000s |
| Day & Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | 120 dB |
| Signal-to-Noise Ratio | >42 dB |
| Angle Adjustment | Pan: 0–340° / Tilt: 0–75° / Rotate: 0–360° |
| Lens Type | Fixed focal lens |
| Focal Length | 2.8 mm |
| Lens Mount | M12 |
| Aperture | F1.6 (Fixed) |
| Field of View | H: 100.5° / V: 56.5° / D: 113.0° |
| DORI Distance | Detect: 77 m / Observe: 30.5 m / Recognize: 15.5 m / Identify: 7.5 m |
| IR LEDs | 2 |
| IR Distance | Up to 30 m |
| White LEDs | 2 |
| White Light Distance | Up to 15 m |
| Video Compression | S+265 / H.265 / H.264B / H.264M / H.264H / Motion JPEG |
| Video Bit Rate | 32 kbps – 16 Mbps |
| Audio Compression | G.711A / G.711U / ADPCM_D / AAC_LC |
| Audio Sampling Rate | 8 kHz / 32 kHz / 48 kHz |
| Maximum Resolution | 8 MP (3840 × 2160 @ 20 fps) |
| Main Stream | PAL/NTSC up to 30 fps (multi-resolution) |
| Sub Stream | PAL/NTSC up to 30 fps |
| Third Stream | Supported |
| BLC / HLC | Yes / Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto / Semi-Auto / Manual / Presets |
| ROI | 8 rectangular static areas |
| Corridor Mode | Yes |
| OSD | Up to 127 characters, multi-region |
| Picture Overlay | 1 × BMP image (200 × 200) |
| Privacy Mask | 4 static black areas |
| Defog | Yes |
| General Alarms | Motion Detection, Mask Alarm |
| Exception Alarms | Voltage, Disk Error, IP/MAC Conflict, Network Error |
| Linkage Methods | Email, Sound, Recording, Capture, Alarm Notification |
| Video Analytics | Human & Vehicle Classification, Tripwire, Perimeter |
| Behavior Analysis Rules | Up to 8 rules per scene |
| ANR | Yes |
| Network Protocols | RTSP, RTMP, HTTP/HTTPS, TCP/UDP, SNMP, DHCP, DNS, IPv4/IPv6, PPPoE, SSH, FTP/SFTP |
| System Compatibility | ONVIF (Profile S/T/G/M), SDK, CGI, Milestone |
| Remote Connection | ≤ 2 users |
| Client Software | Easy7 VMS |
| Mobile Client | EasyLive Plus |
| Network Interface | 1× RJ-45 (10/100 Base-T) |
| Built-in Microphone | Yes |
| Reset Button | Yes (Built-in) |
| On-board Storage | microSD / microSDHC / microSDXC up to 512 GB |
| RTC | Yes |
| Operating Temperature | -35°C to 65°C |
| Operating Humidity | ≤95% RH |
| Power Supply | DC 12V ±25%, Max. 7W / PoE IEEE 802.3af, Max. 8.5W |
| Protection | Surge 4000V, ESD 6000V, IP67 |
| Dimensions | 117 × 117 × 96 mm |
| Package Dimensions | 140 × 140 × 120 mm |
| Gross Weight | 0.638 kg |
