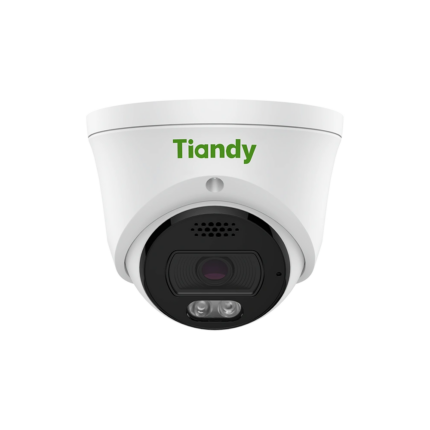

8MP Motorized Color Maker Dome Camera (TC-C38MS 3LHA-27135)
Përshkrim
Kjo kamerë IP profesionale 8MP me lente motorike 2.7–13.5 mm ofron rezolucion 4K Ultra HD, zmadhim fleksibël dhe mbulim të gjerë për distanca të mëdha. Falë WDR 120dB, Smart IR, ndriçimit të fuqishëm me IR dhe dritë të bardhë deri në 50 m, si dhe analitikës inteligjente për njerëz dhe automjete, është ideale për perimetra, zona industriale, parkingje dhe ambiente me siguri të lartë. Me IP67 & IK10, është e përshtatshme edhe për kushte të rënda të jashtme.
Specifications
| Category | Specification |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Minimum Illumination | Color: 0.002 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR |
| Shutter Time | 1s ~ 1/100000s |
| Day & Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | 120 dB |
| Signal-to-Noise Ratio | >42 dB |
| Angle Adjustment | Pan: 0–345° / Tilt: 0–90° / Rotate: 0–350° |
| Lens Type | Motorized |
| Focal Length | 2.7 – 13.5 mm |
| Lens Mount | Φ14 |
| Aperture | F1.6 (Fixed) |
| Field of View | H: 106.7°–31.5° / V: 57.3°–17.8° / D: 130.9°–34.8° |
| DORI Distance | Detect: 77–331 m / Observe: 30.55–131 m / Recognize: 15.5–66 m / Identify: 7.5–33 m |
| IR LEDs | 18 |
| IR Distance | Up to 50 m |
| IR Wavelength | 850 nm |
| White LEDs | 18 |
| White Light Distance | Up to 15 m |
| Video Compression | S+265 / H.265 / H.264B / H.264M / H.264H / Motion JPEG |
| Video Bit Rate | 32 kbps – 16 Mbps |
| Audio Compression | G.711A / G.711U / ADPCM_D / AAC_LC |
| Audio Sampling Rate | 8 kHz / 32 kHz / 48 kHz |
| Maximum Resolution | 8 MP (3840 × 2160 @ 20 fps) |
| Main Stream | PAL: up to 25 fps / NTSC: up to 30 fps |
| Sub Stream | Supported |
| Third Stream | Supported |
| BLC / HLC | Yes / Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto / Semi-Auto / Manual / Presets |
| ROI | 8 static areas |
| Corridor Mode | Yes |
| OSD | Up to 127 characters, multi-region |
| Picture Overlay | 1 × BMP (200 × 200, 24-bit) |
| Privacy Mask | 4 areas |
| Defog | Yes |
| General Alarms | Motion Detection, Mask Alarm, Alarm Input |
| Exception Alarms | Voltage, Disk Error, IP/MAC Conflict, Network Issues |
| Linkage Methods | Email, Sound, Recording, Capture, Alarm Output |
| Video Analytics | Human & Vehicle Classification, Tripwire, Perimeter |
| Behavior Analysis Rules | 8 |
| ANR | Yes |
| Protocols | RTSP, RTMP, HTTP/HTTPS, TCP/UDP, SNMP, DHCP, DNS, IPv4/IPv6, FTP, SFTP |
| Compatibility | ONVIF (Profile S/T/G/M), SDK, CGI, Milestone |
| Remote Connection | ≤ 2 users |
| Client Software | Easy7 VMS |
| Mobile App | EasyLive Plus |
| Network Interface | 1× RJ-45 (10/100 Base-T) |
| Audio I/O | 1× In / 1× Out |
| Alarm I/O | 1× In / 1× Out |
| Built-in Microphone | Yes |
| Reset Button | Yes (Built-in) |
| Local Storage | microSD up to 512 GB |
| RTC | Yes |
| Operating Temperature | -35°C ~ 65°C |
| Power Supply | DC 12V ±25%, Max. 8W / PoE IEEE 802.3af, Max. 9W |
| Protection | Surge 4000V, ESD 6000V, IP67, IK10 |
| Dimensions | 143 × 143 × 123 mm |
| Gross Weight | 1.138 kg |
