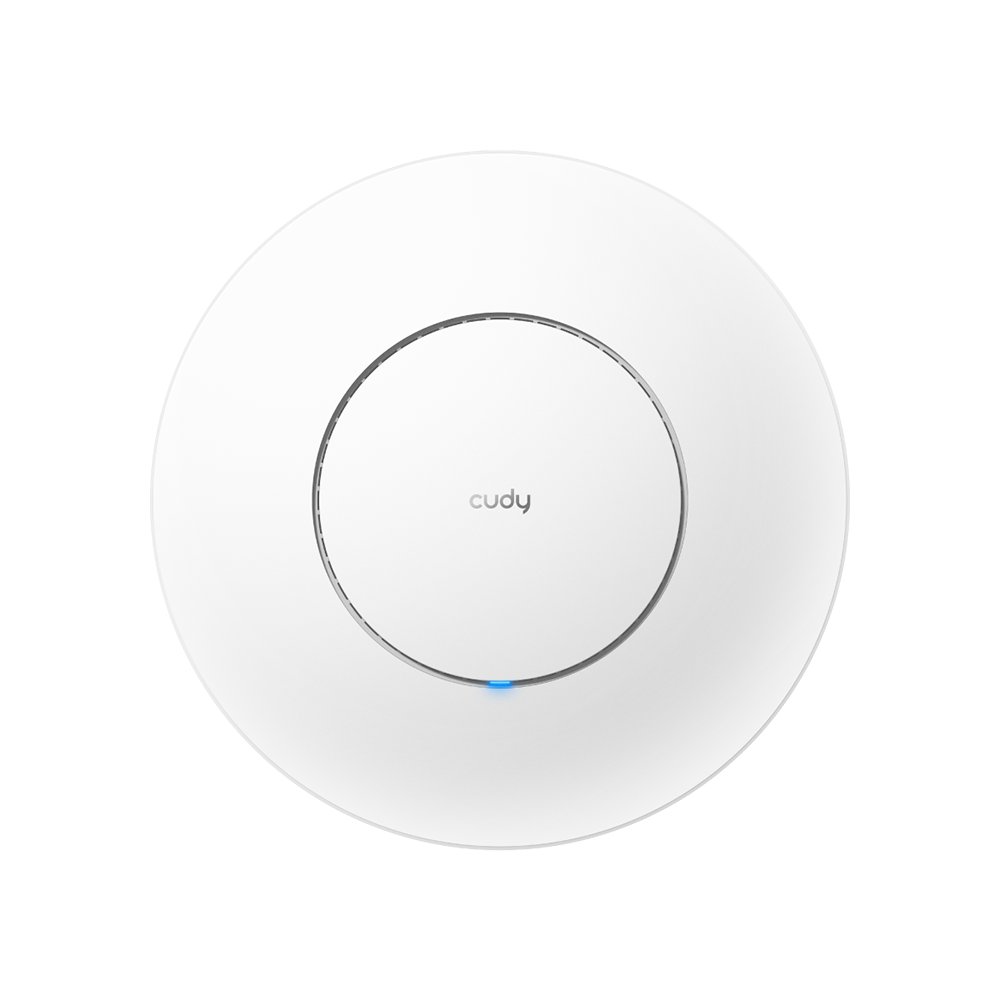

AC1200 Wi-Fi Access Point (AP1200)
37.94 €
AP1200
Përshkrim
- 4-Stream Dual-Band Wi-Fi 5
- 867 Mbps + 300 Mbps Wi-Fi 1
- 1× Fast Ethernet Port (PoE In)
- 802.3at/af, Passive PoE, DC
- Covers 100m² (1,100 ft²) 2
- 50 Connected Devices 3
Hardware Specification
| Specification | Details |
|---|---|
| Model Version | AP1200 1.0 |
| CPU | 580 MHz Single-Core CPU |
| Flash / ROM | 16 MB (128 Mbit) NOR |
| RAM | 128 MB (1 Gbit) DDR2 |
| Wi-Fi Standard | Wi-Fi 5 (802.11ac) |
| 5 GHz Speed | 867 Mbps |
| 2.4 GHz Speed | 300 Mbps |
| 5 GHz Streams | 2T2R (2×2 MIMO) |
| 2.4 GHz Streams | 2T2R (2×2 MIMO) |
| Wi-Fi Antennas | 4× Internal |
| FEM / PA / LNA | 5 GHz: 2× Internal2.4 GHz: 2× Internal |
| Beamforming | Yes |
| Max Wireless Range | Up to 170 m (open space) |
| Wall Performance | 2× wooden walls (<10 cm)1× concrete wall (<20 cm) |
| Ethernet Ports | 1× 10/100 Mbps RJ45 |
| Ethernet Notes | Supports PoE powering |
| LED Indicator | System |
| Physical Button | Reset |
| Power Interfaces | DC JackPoE via Ethernet |
| Power Methods | DCPassive PoE802.3at/af PoE |
| Power Input | DC: 12V ⎓ 1APassive PoE: 24V ⎓PoE: 802.3at / af |
| Power Adapter | AP1200: No adapter in boxAP1200P: 24V Passive PoE adapter included |
| Max Power Consumption | 12 W |
| Idle Power Consumption | 2.5 W |
| ESD Protection | Contact: 4 kVAir: 8 kV |
| Operating Temperature | 0 ℃ ~ 40 ℃ |
| Storage Temperature | -40 ℃ ~ 70 ℃ |
| Operating Humidity | 10% ~ 90% RH (non-condensing) |
| Storage Humidity | 5% ~ 90% RH (non-condensing) |
| Certifications | FCC, CE |
| Installation | Wall-mountCeiling-mount |
| Dimensions | Ø231.9 × 57.1 mm |
| Product Weight | 370.5 g |
| Package Content | AP1200Mounting KitInstallation Guide |
| Retail Package Dimension | 283 × 238 × 68 mm |
| Retail Package Weight | 720.3 g |
| Units per Carton | 20 |
| Carton Dimension | 580 × 375 × 495 mm |
| Carton Net Weight | 14.4 kg |
| Carton Gross Weight | 15.5 kg |
Software Specification
| Category | Specification | Details |
|---|---|---|
| Wireless | Wi-Fi Standards | Wi-Fi 5 (802.11ac) |
| Max Wi-Fi Modulation | 256-QAM | |
| Wi-Fi Efficiency | MU-MIMO (5 GHz only) | |
| Max Capacity | 128 devices | |
| Recommended Clients | Up to 50 | |
| Max Channel Width | 80 MHz | |
| Wi-Fi Security | WPA / WPA2 / WPA3 | |
| Guest Network | 2.4 GHz, 5 GHz | |
| WPS | Yes | |
| Operation Modes | Modes Supported | Wi-Fi RouterAccess PointRange ExtenderWISPClient |
| Mesh | Mesh Technology | Cudy Mesh |
| Mesh Backhaul | Wireless BackhaulWired Backhaul | |
| Multi-Band Backhaul | Yes | |
| WAN | WAN Connection Modes | DHCPStatic IPPPPoEPPTPL2TP |
| QoS | Traffic Control | Per-User Rate Limiting |
| DHCP | DHCP Functions | Address ReservationDHCP Client ListDHCP Server |
| IP Support | IP Versions | IPv4 / IPv6 |
| IPv6 | IPv6 Protocols | RelayDynamic (SLAAC/DHCPv6)Static (Fixed IP)Passthrough464XLATMAP-EDS-Lite |
| IPTV / VLAN | VLAN Features | BridgeTag VLANVoIP VLANIPTV VLAN |
| TTL | TTL Customization | ExtendSpoofCustom |
| IGMP | Multicast | IGMP ProxyIGMP Snooping |
| Forwarding | Port Management | Port ForwardingPort TriggeringUPnPDMZ |
| Firewall | Security | SPI FirewallDoS ProtectionBlock PING |
| ALG | Application Layer Gateway | IPSecL2TPPPTPFTPTFTPH323SIPRTSP |
| Utilities | Captive Portal | Yes |
| VPN Server | Supported VPNs | WireGuardOpenVPNIPsecZerotierPPTPL2TP |
| VPN Client | Supported VPNs | WireGuardOpenVPNIPsecZerotierPPTPL2TP |
| DNS | DNS Options | DNS over TLSManual DNSRebind ProtectionOverride Client DNS |
| DoT Providers | CloudflareGoogleQuad9Custom | |
| System | Wake on LAN | Yes |
| Online Detection | Yes | |
| Management | Device Management | Wi-Fi Time ScheduleMAC FilterIP/MAC Binding |
| Per-Device Control | Internet On/OffVPN On/OffOnline Time ScheduleDevice Rename | |
| Content Control | Filters | Domain FilterIP Filter |
| Control Methods | Local Control | Web Configuration PageMobile App |
| Remote Control | HTTPS Config PageMobile AppTR069 / TR098 / TR111 / TR143 / TR181 | |
| Firmware | Upgrade Methods | Local UpdateOTA (App)Online Update |
| Reliability | System Tools | Timed RebootBackup & Restore |
| Diagnostics | Diagnostic Tools | DiagnosisPingTracerouteNSLookupSystem Log |
| Languages | UI Languages | English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese, Traditional Chinese |
| Dashboard | Panels | Internet StatusMesh StatusDevices ManagementWAN / LAN StatusWISP StatusWi-Fi StatusVPN StatusDHCP Server StatusSystem Version |
| Charts | Mesh TopologyInternet SpeedWISP SpeedWi-Fi Speed | |
| Failover | Internet Failover Sequence | WAN → WISP |
