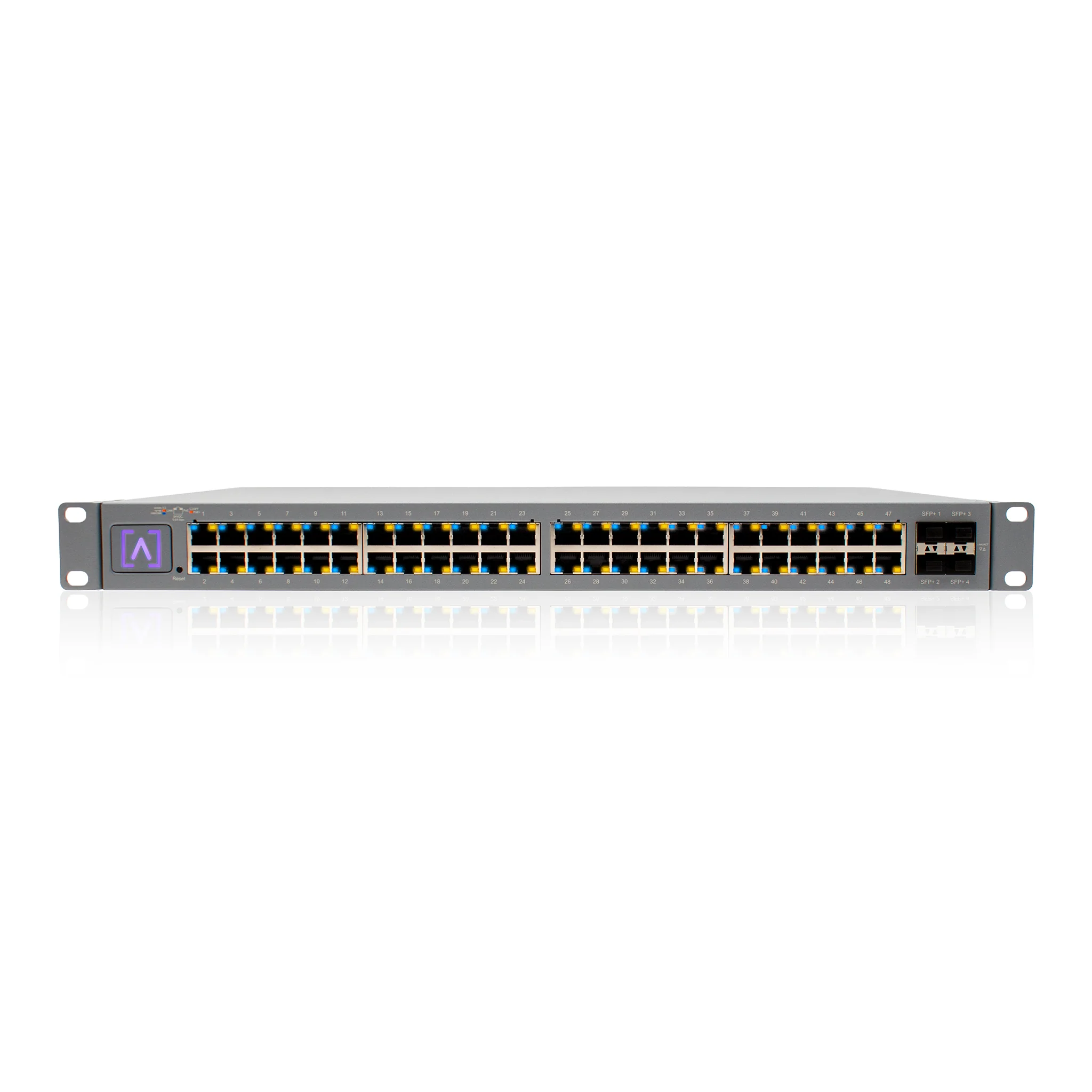

Altalabs 48-Port Enterprise Switch With Full POE ( S48-APOE)
1 162.80 €
Alta Labs newest switch offering, the S48-APOE,
is designed to deliver maximum performance
in enterprise, commercial, corporate, hotels,
restaurants, resorts, entertainment venues,
Pro AV, MDU (Multi-Dwelling Units), and any
environment requiring high-performance
connectivity and PoE+ flexibility. The S48-
APOE features full PoE+ Power over Ethernet
connectivity on all 48 ports as requested by our
customers. A powerful 740 W PoE budget to allow
you the flexibility to power a multitude of network
devices. It includes (16) 2.5 Gbps and (32) 1 Gbps
Ethernet ports. 4 SFP+ ports provide up to 10 Gbps
connectivity. The S48‑APoE is a fully managed
rackmountable switch and includes Bluetooth
functionality for seamless device setup
MECHANICAL
Dimensions 440 x 310 x 44 mm (17.32 x 12.20 x 1.73")
Weight 4.99 kg (11 lbs)
Material Type SGCC
Material Finish Powder coat - Matte
Color Metalic gray
PORTS
Interface ports (32) 10/100/1000 Mbps,
(16) 10/100/1000/2500 Mbps
SFP/SFP+ (4) SFP+
Switching Capacity 240 Gbps
Non-blocking Throughput 120 Gbps
Forwarding Rate 178.6 Gbps
PoE Budget/Max 740 Watts
PoE Supply 30 Watts per port
Per Port PoE (48) 802.3at PoE+
Non-PoE Ports None
LEDS
PoE Orange
Network Orange: 10/100, Blue: 1000/2500 Gbps
SFP/SFP+ Blue: 1 Gbps
White: 10 Gbps
HARDWARE
Packet Buffer 16 Mbit
Mac Table Size 32K
Energy Efficient Ethernet Yes
Management Factory reset button
Band 2.4 GHz (For Bluetooth Setup)
Bluetooth Version BLE
Total Power 6 dBm EIRP
Gain 2 dBi
POWER
Idle Power Consumption 15 Watts
Max Power Consumption w/o PoE 68 Watts
Max Power Consumption Full PoE 890 Watts
Output PoE+, 54VDC, 0.6A Max.
Power Supply Universal AC, 100 - 240VAC 50-60Hz Internal
RJ45 Port Surge Protection 12kV for ESD - contact, 25kV for ESD - Air
ENVIRONMENTAL
Mounting Rackmount, Wallmount
Operating Temperature -5 to 50° C (23 to 122° F)
Operating Humidity 10 to 90% Noncondensing
IP Rating None
EMI Rating Class A with 3 dB Margin
Cooling Fan Yes
Compliance TAA Compliant
Certifications CE, FCC, IC
