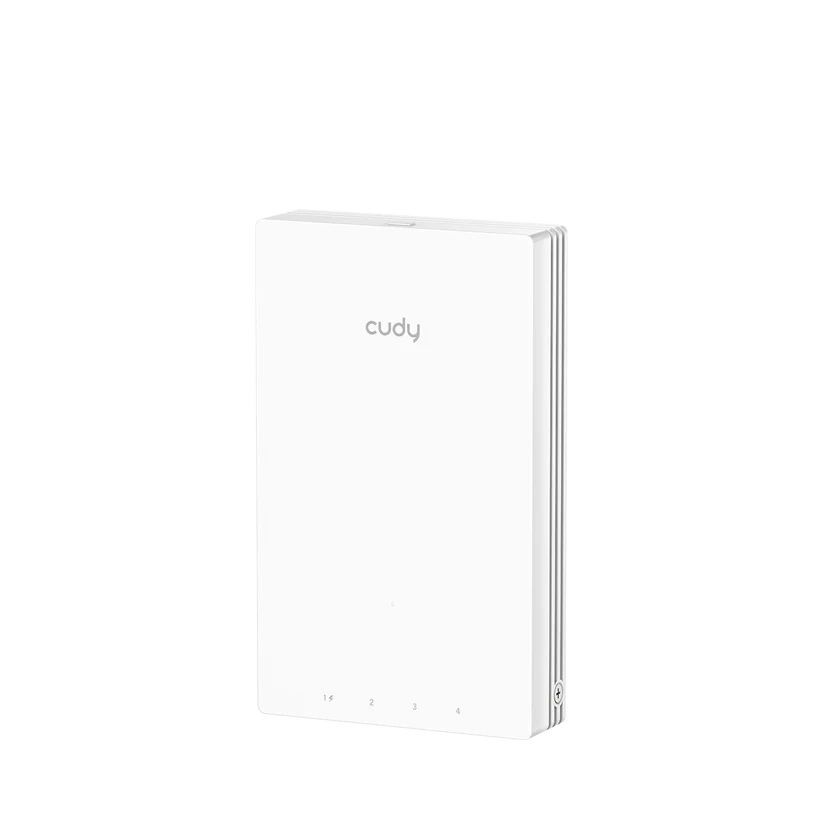

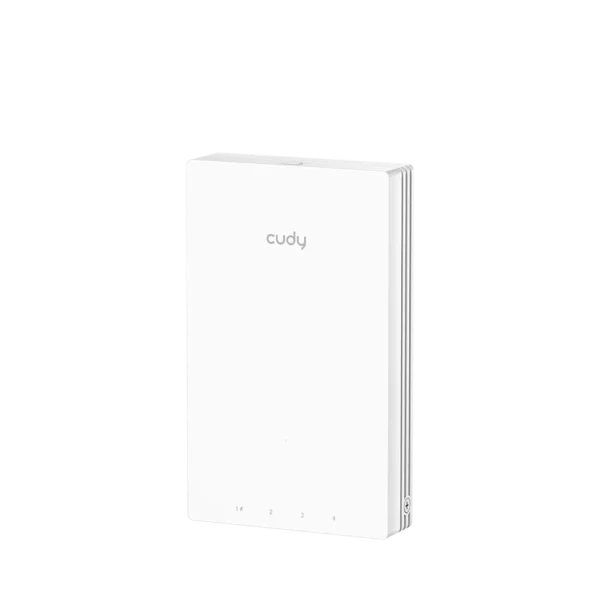

AC1200 Wall-Plate Access Point (AP1300 Wall)

AC1200 Wall-Plate Access Point (AP1300 Wall)

A wall-mounted WiFi AP with a built-in 5-GbE switch ideal for covering a room or ensuite in hospitality environments. One PoE output allows for connecting an IP phone or other PSE-enabled devices.

  •  4-Stream Dual-Band Wi-Fi 5
  •  867 Mbps + 300 Mbps Wi-Fi 1
  •  1× GbE PoE In, 1× GbE PoE Out, 3× GbE
  •  802.3at/af, Passive PoE
  •  PoE Passthrough
  •  Watchdog, Schedule Reboot
  •  Covers 60 m² (650 ft²) 2
  •  40 Connected Devices 3

Model Version AP1300 Wall 1.0
CPU CPU Details 880 MHz Dual-Core CPU
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 128 MB (1 Gbit) DDR3
Wireless 5 GHz Wi-Fi Speed 867 Mbps
2.4 GHz Wi-Fi Speed 300 Mbps
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 2× Internal
5 GHz Antenna Gain Max 5.6 dBi
2.4 GHz Antenna Gain Max 5.0 dBi
FEM or PA/LNA
  • 5 GHz: 2× Internal
  • 2.4 GHz: 2× Internal
Beamforming True
Range Performance Max: 80 m (262 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4”)
One concrete wall with thickness < 20 cm (7”)

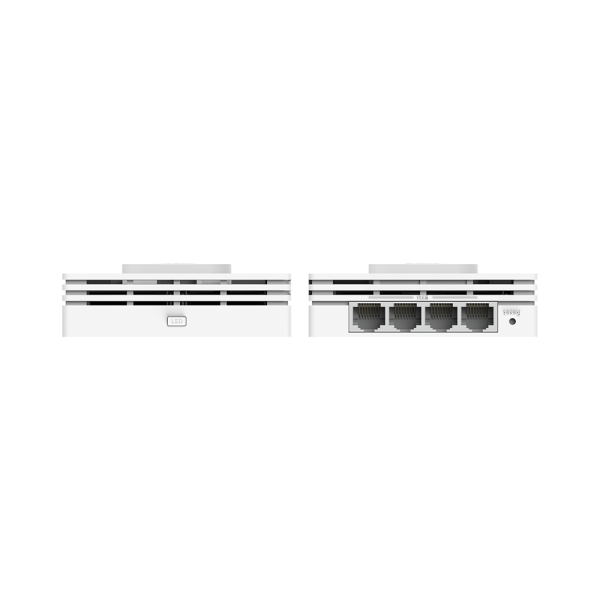

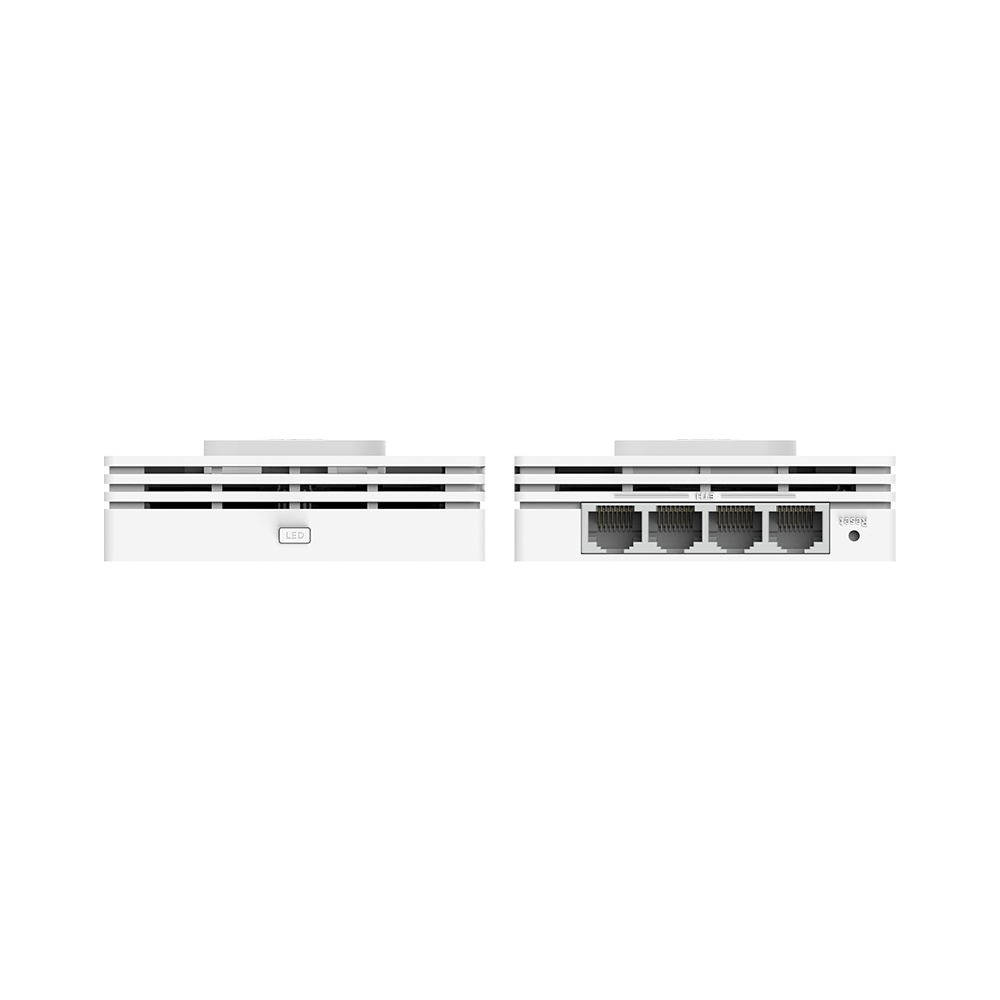

Interfaces Gigabit RJ45 Ports 5
Ethernet Notes Accepts PoE powering
LED System
Physical Buttons
  • Reset Button
  • LED On/Off Button (Configurable to control LED and Wi-Fi)

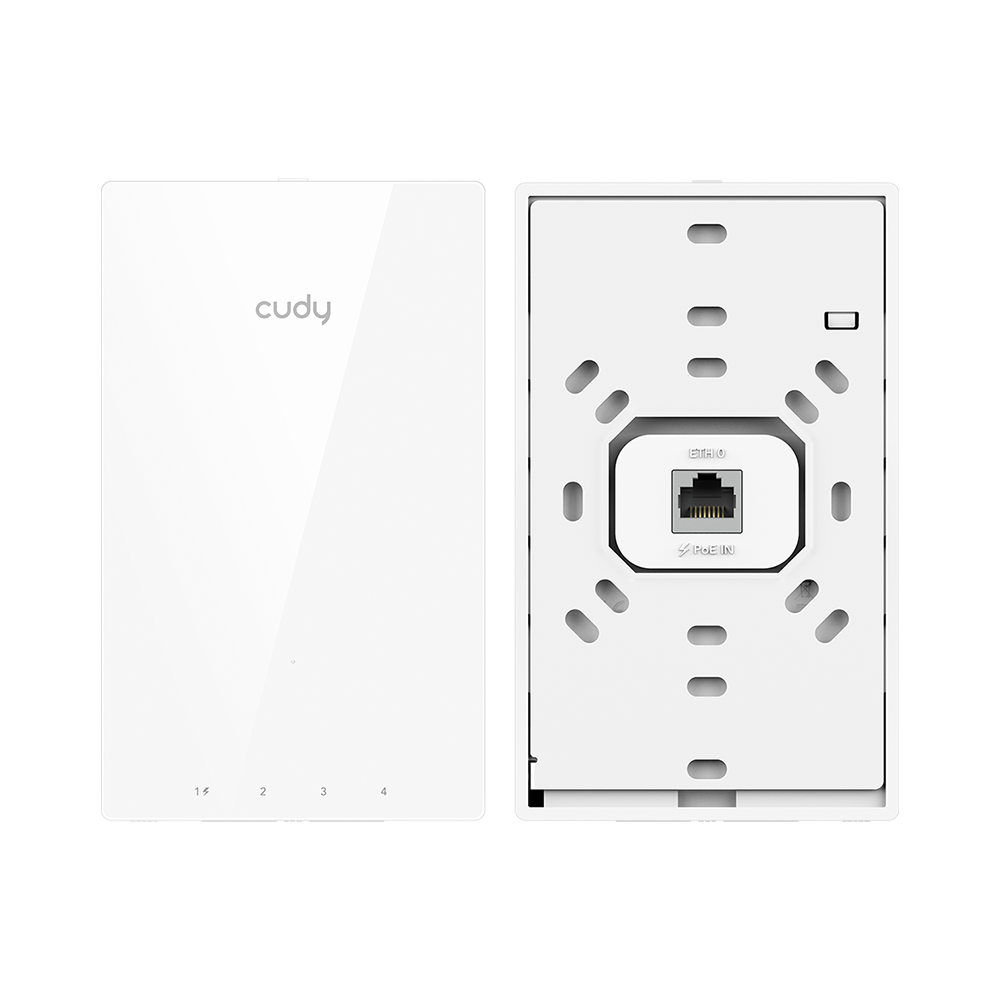

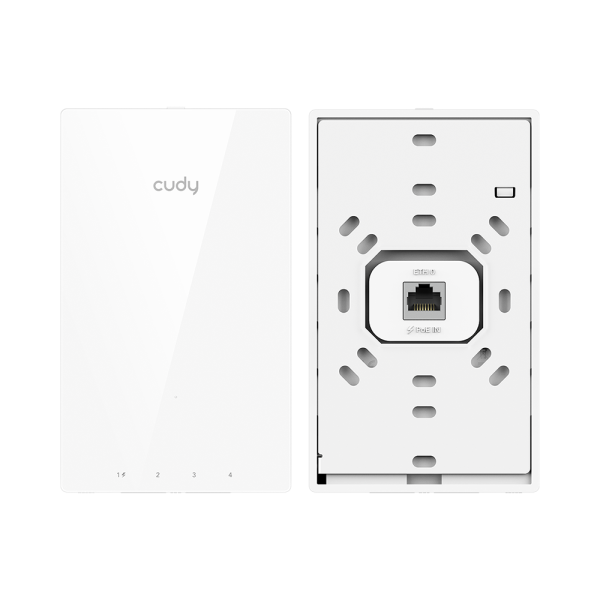

Power Input PoE via Ethernet Port
Power Power Methods
  • Passive PoE
  • 802.3at/af PoE
Passive PoE 48V
Max Power Consumption (W) Max (PoE): 12 W
Max (DC): NA
Idle Power Consumption (W) 4 W
Reliability Advanced Hardware Watchdog
EMS ESD: Contact: 4kV; Air: 8kV
Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Certifications FCC, CE
Mechanical Installation Wall-mount
Dimension 143×86×27.6 mm
5.63×3.39×1.09 inches
Product Weight 261.2 g (9.21 oz.)
Package Content
  • AP1300 Wall
  • Installation Guide
  • Mounting Kit
Ordering Information Retail Package Weight EU: 362.9 g (12.8 oz.)
Retail Package Dimension 152×39.5×90 mm
5.98×1.56×3.54 inches
Units per Carton 30
Carton Net Weight EU: 10.9 kg (24.03 lbs)
Carton Gross Weight EU: 11.3 kg (24.91 lbs)
Carton Dimension 32.8×22×29.6 cm
12.91×8.66×11.65 inches
