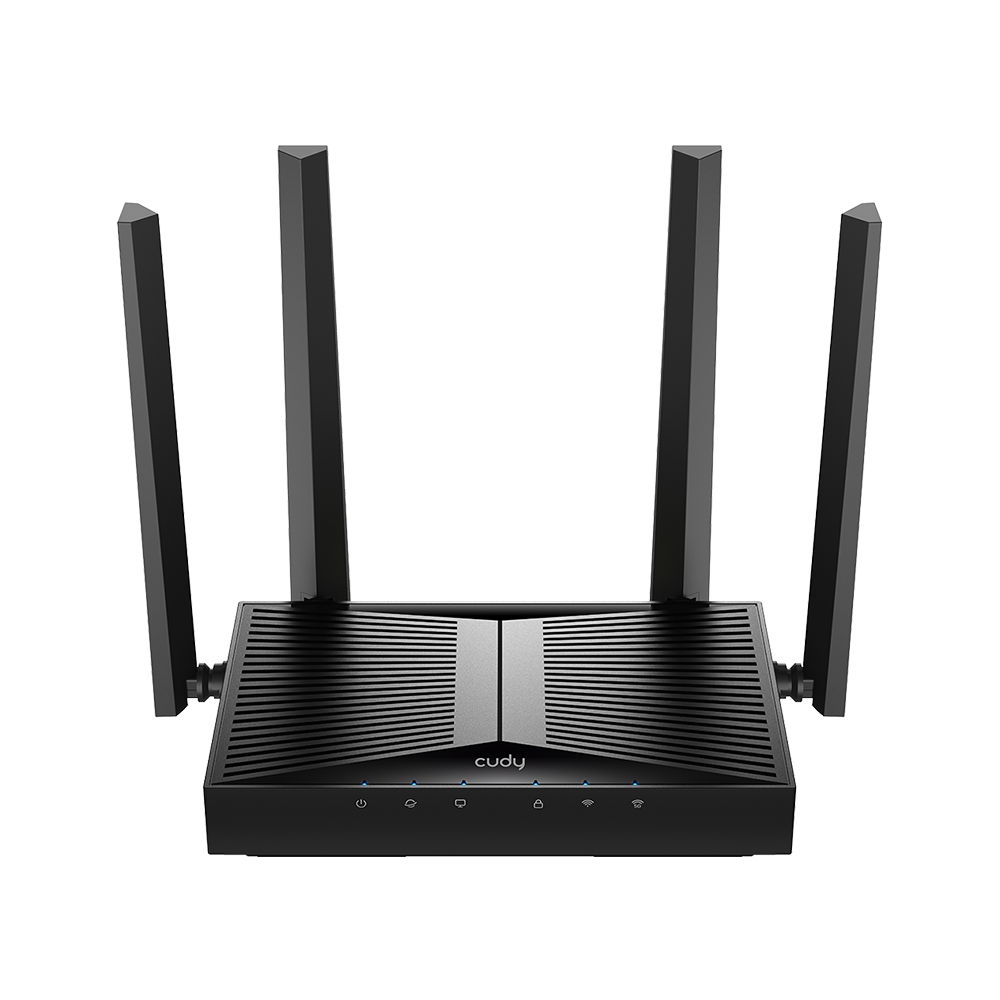

AX3000 Desktop Wi-Fi 6 Access Point
AP3000D
Përshkrim
A desktop/wall-mounted WiFi 6 AP for offices, hotels, and studios.
- 1.3 GHz Dual-Core CPU
- 4-Stream Dual-Band Wi-Fi 6
- 2402 Mbps + 574 Mbps Wi-Fi 1
- 1× Gigabit Ethernet Port (PoE In)
- 802.3at/af, Passive PoE, DC
- Covers 130 m² (1,400 ft²) 2
- Multi-SSID
- Captive Portal
Hardware Specs
| Model Version | AP3000D 1.0 | |
|---|---|---|
| CPU | CPU Details | 1.3 GHz Dual-Core, ARM Cortex-A53 |
| Memory/Storage | Flash/ROM | 16 MB (128 Mbit) NOR |
| DDR/RAM | 256 MB (2 Gbit) DDR3 | |
| Wireless | 5 GHz Wi-Fi Speed | 2402 Mbps |
| 2.4 GHz Wi-Fi Speed | 574 Mbps | |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) with an Extra Stream | |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| Wi-Fi Antennas | 4× Fixed | |
| FEM or PA/LNA |
|
|
| Beamforming | True | |
| Range Performance | Max: 220 m (722 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. |
|
| Wall Performance | Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'') |
|

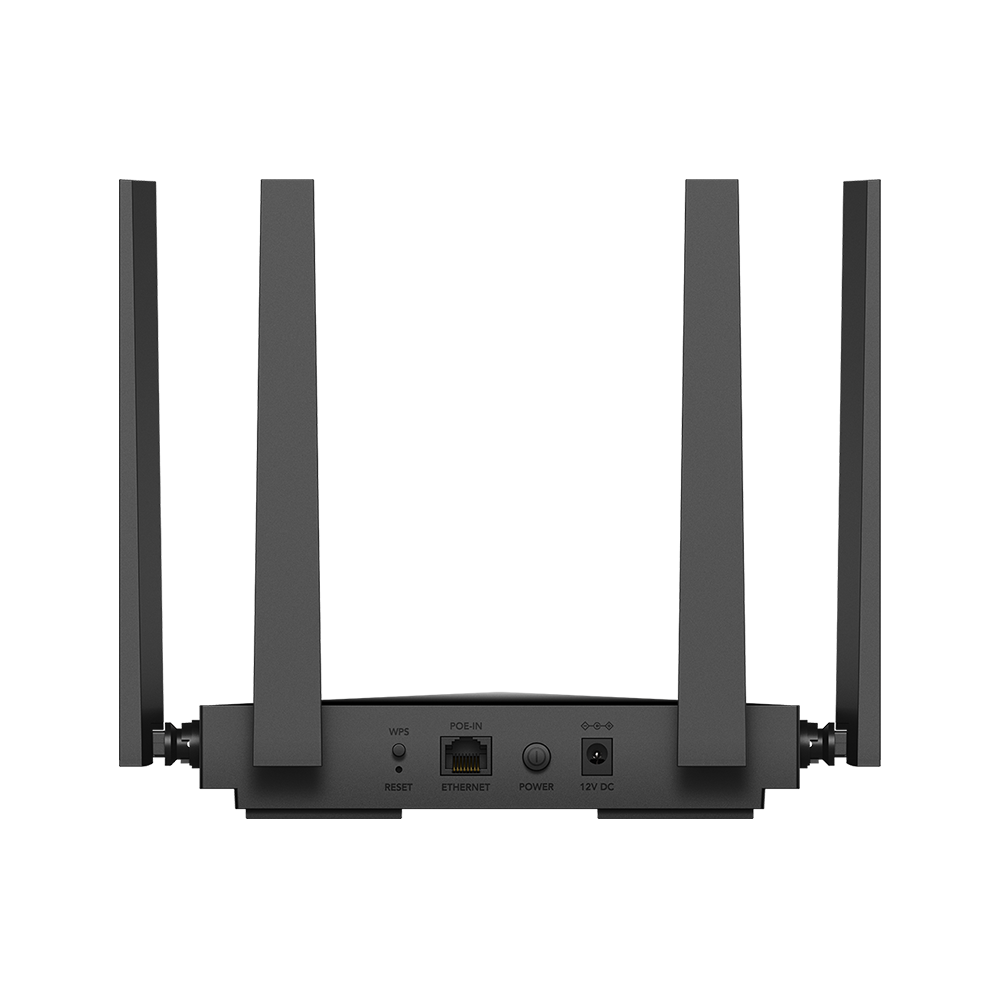

| Interfaces | Gigabit RJ45 Ports | 1 |
| Ethernet Notes | Accepts PoE powering | |
| LED |
|
|
| Physical Buttons |
|
|
| Power Interface |
|
|
| Power | Power Methods |
|
| Power Input-an-unordered-list | DC: 12V⎓1A, Passive PoE: 12V⎓ PoE: 802.3at/af |
|
| Power Adapter in the Box | Input: 100-240V~, 50/60Hz Output: 12V⎓1A |
|
| Max Power Consumption (W) | 12 W (48 V PoE) 12 W (DC) | |
| Reliability | Environment |
|
| Certifications | FCC, CE | |
| Mechanical | Installation |
|
| Dimension | Device: 183.3×109×38 mm 7.22×4.29×1.5 inches Each Antenna: 175 mm 6.89 inches |
|
| Product Weight | 309.0 g (10.9 oz.) | |

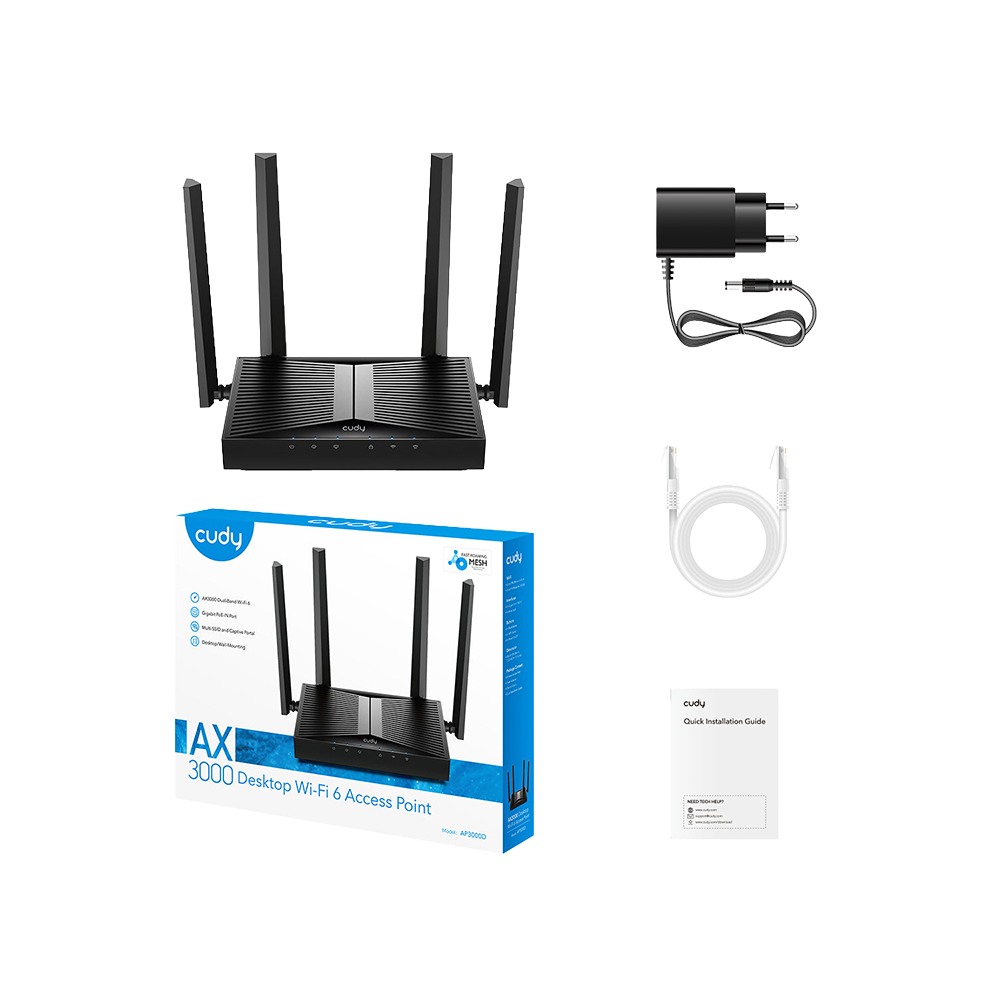

| Package Content |
|
|
| Ordering Information | Retail Package Weight | EU: 719.5 g (25.38 oz.) |
| Retail Package Dimension | 330×256×60 mm 12.99×10.08×2.36 inches |
|
| Units per Carton | 10 | |
| Carton Net Weight | EU: 7.2 kg (15.87 lbs) | |
| Carton Gross Weight | EU: 7.9 kg (17.42 lbs) | |
| Carton Dimension | 52.8×31.7×34.7 cm 20.79×12.48×13.66 inches |
|
Software Specs
| Model Version | AP3000D 1.0 | |
|---|---|---|
| Wireless | Wi-Fi Standards | Wi-Fi 6 |
| Max Wi-Fi Modulation | 1024-QAM | |
| Wi-Fi Efficiency |
|
|
| Max Capacity | 256 | |
| Recommended Client Upper Limit | 100 | |
| Max Wi-Fi Channel Width | 160 MHz | |
| Wi-Fi Security | WPA/WPA2/WPA3 | |
| Multi-SSID (Max Number) | 8 SSIDs (Up to 4 SSIDs on each band) | |
| WPS | True | |
| General | Operation Modes |
|
| Mesh | Cudy Mesh | |
| Mesh Backhaul |
|
|
| Multi-Band Backhaul | True | |
| Network | DHCP | Server |
| IP Versions | IPv4 | |
| IGMP | IGMP Snooping | |
| Utilities | Captive Portal | True |
| Captive Portal Providers | HotspotSystem, Iron Wi-Fi, ObiFi, Vulacoin, WorldSpot.net, WiFiMAX, Manual | |
| Wake on LAN | True | |
| Management | All Devices Management | Wi-Fi Time Schedule |
| System | LED Control | True |
| Local Control Method |
|
|
| Remote Control Method |
|
|
| Firmware Upgrade |
|
|
| Reliability |
|
|
| Diagnostic Tools |
|
|
| Languages |
|
|
| Dashboard | Panel |
|
| Charts |
|
|
Datasheet
