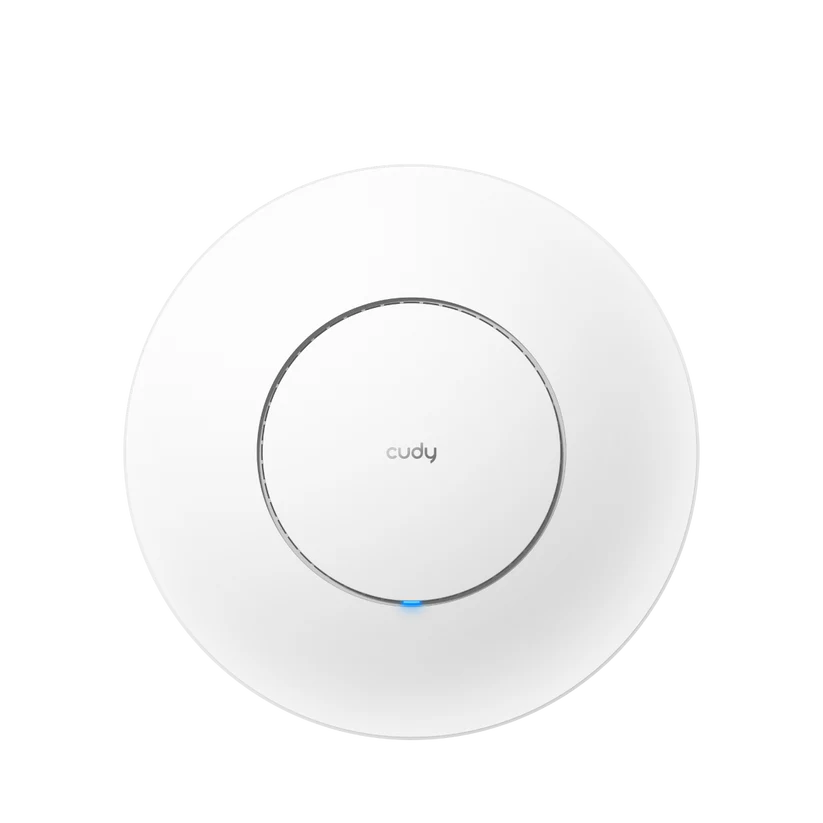

BE3600 2.5G Wi-Fi 7 Access Point

AP3600

Kodi i produktit : 99939 Kategori: Cudy

Përshkrim

A wall/ceiling-mounted WiFi 7 AP designed for malls, offices, campuses, and other high-density scenarios, featuring a 2.5G PoE IN port and a PoE Out port.

Broadcom 2 GHz Quad-Core CPU
4-Stream Dual-Band Wi-Fi 7
2882 Mbps + 688 Mbps Wi-Fi ¹
1× Shielded 2.5GbE PoE IN
1× Shielded GbE PoE Out ²
802.3at, Passive PoE, DC
Watchdog, Schedule Reboot
Covers 120 m² (1,300 ft²) ³
200 Connected Devices ⁴

Hardware Specs

Model Version	AP3600 1.0
CPU	CPU Details	2.0 GHz Quad-Core, ARM Cortex-A7
Memory/Storage	Flash/ROM	128 MB (1 Gbit) NAND
	DDR/RAM	512 MB (4 Gbit) DDR3L
Wireless	5 GHz Wi-Fi Speed	2882 Mbps
	2.4 GHz Wi-Fi Speed	688 Mbps
	5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	Wi-Fi Antennas	4× Internal
	FEM or PA/LNA	5 GHz: 2× External 2.4 GHz: 2× Internal
	Beamforming	True
	Range Performance	Max: 220 m (722 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
	Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Interfaces	2.5G RJ45 Ports	1
	Gigabit RJ45 Ports	1
	Ethernet Notes	Accepts PoE powering
	LED	System
	Physical Buttons	Reset Button
	Power Interface	DC Jack PoE via Ethernet Port
Power	Power Methods	DC Passive PoE 802.3at/af PoE
	Power Input-an-unordered-list	DC: 12V⎓1A, Passive PoE: 48-57V⎓, PoE: 802.3at/af
	Power Adapter in the Box	AP3600 \| No adapter in the box AP3600_P \| PoE adapter in the box: Input: 100-240V~, 50/60Hz Output: 48V⎓ Passive PoE
	Max Power Consumption (W)	10W
Reliability	Advanced	Hardware Watchdog
	EMC	ESD: Contact: 4kV; Air: 8kV
	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Certifications	FCC, CE
Mechanical	Installation	Wall-mount Ceiling-mount
	Dimension	231.9×231.9×57.1 mm 9.13×9.13×2.25 inches
	Product Weight	EU: 435.0 g (15.34 oz.) EU: 435.0 g (15.34 oz.)
Package Content	AP3600 Mounting Kit Ethernet Cable Installation Guide
Ordering Information	Retail Package Weight	EU: 843.0 g (29.74 oz.) EU: 843.0 g (29.74 oz.)
	Retail Package Dimension	310×238×73 mm 12.2×9.37×2.87 inches
	Units per Carton	10
	Carton Net Weight	EU: 8.5 kg (18.74 lbs) EU: 8.5 kg (18.74 lbs)
	Carton Gross Weight	EU: 9.4 kg (20.72 lbs) EU: 9.4 kg (20.72 lbs)
	Carton Dimension	49.5×38.7×33.2 cm 19.49×15.24×13.07 inches

Software Specs

Model Version	AP3600 1.0
Wireless	Wi-Fi Standards	Wi-Fi 7
	Max Wi-Fi Modulation	4K-QAM
	Wi-Fi Efficiency	MLO MRU Puncturing OFDMA MU-MIMO BSS Color
	Max Capacity	512
	Recommended Client Upper Limit	200
	Max Wi-Fi Channel Width	160 MHz
	Wi-Fi Security	WPA/WPA2/WPA3
	WPS	True
General	Operation Modes	Wi-Fi Router Access Point
	Mesh	Cudy Mesh
	Mesh Backhaul	Wireless Backhaul Wired Backhaul
	Multi-Band Backhaul	True
	WAN Mode	DHCP Static IP PPPOE PPTP L2TP
Network	QoS	Per-User Rate Limiting
	DHCP	Address Reservation DHCP Client List Server
	IP Versions	IPv4/IPv6
	IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
	IPTV/VLAN	Bridge Tag VLAN VoIP VLAN IPTV VLAN
	TTL Customization	Extend Spoof Custom
	IGMP	IGMP Proxy IGMP Snooping
	Forwarding	Port Forwarding Port Triggering UPnP DMZ
	Firewall	SPI Firewall DoS Protection Block PING
	Application Layer Gateway	IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Utilities	Captive Portal	True
	VPN Server	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	VPN Client	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	DNS Options	DNS over TLS Manual DNS Rebind Protection Override Clients' DNS
	DNS over TLS Providers	Cloudflare Google Quad9 Custom
	Wake on LAN	True
	Online Detection	True
Management	All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
	Per-Devices Management	Internet On/Off VPN On/Off Online Time Schedule Device Rename
	Content Management	Domain Filter IP Filter
System	LED Control	True
	Local Control Method	Config Web Page App Control
	Remote Control Method	Config Page via HTTPS App Control TR069/TR098/TR111/TR143/TR181
	Firmware Upgrade	Local Update App (Over the Air) Online Update
	Reliability	Timed Reboot Backup and Restore
	Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
	Languages	English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
Dashboard	Panel	Internet Status Mesh Status Devices Management WAN Status LAN Status Wi-Fi Status VPN Status DHCP Server Status System Version
	Charts	Mesh Topology Internet Speed Wi-Fi Speed
