FANVIL Intercom-Y501W
115.66 €

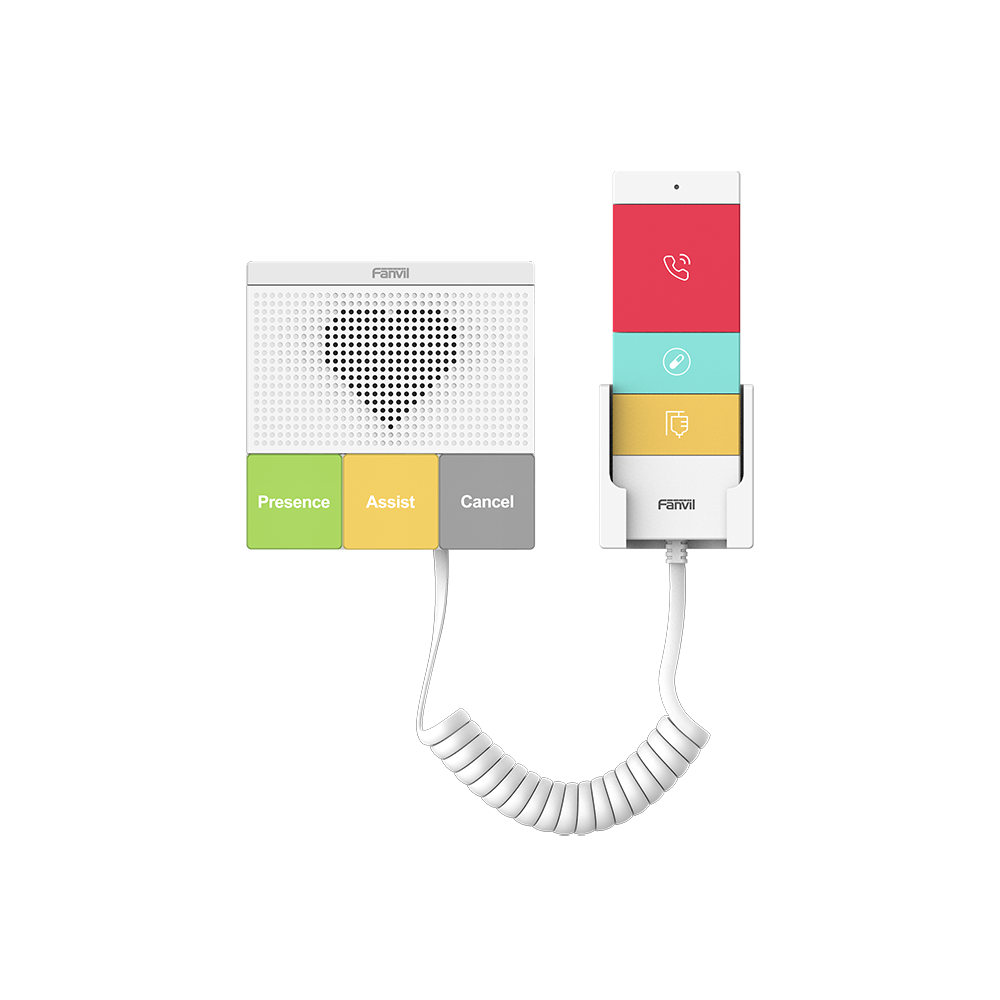

FANVIL Intercom-Y501-Y Series SIP Healthcare
126.17 €
Y501-Y
Koha e arritjes së produktit : Sht 11, 2026 - Sht 14, 2026
Përshkrim
Fanvil Y501-Y Series është një intercom IP profesional për ambiente shëndetësore si shtëpi kujdesi, qendra të moshuarish, spitale dhe ambiente të brendshme, i dizajnuar për thirrje emergjente, komunikim infermieror dhe siguri. Pajisja ofron 2 SIP accounts, audio HD, butona funksionalë për thirrje infermierore, mbështetje Wi-Fi, PoE, IP54 mbrojtje dhe integrim me sisteme të komunikimit dhe alarmit.
Specifications
| Description | Specification |
|---|---|
| Model Series | Fanvil Y501-Y Series SIP Healthcare Intercom |
| Applications | Home Care, Nursing House, Healthcare, Indoor Emergency Communication |
| SIP Accounts | 2 SIP Lines |
| Auto Answer | Supported |
| Voice Quality | HD Voice |
| Intercom Function | Supported |
| Wireless Button Support | Supported (Optional 433MHz Button) |
| DSS Buttons | 6 Detachable Function Buttons |
| Button Functions | Finish, Nursing, Assistant, Call, Dressing Change, Infusion |
| Wireless Buttons Capacity | Up to 10 Wireless Buttons |
| Wi-Fi | Built-in Dual Band Wi-Fi (Y501W-Y / Y501W-Y-E) |
| Wi-Fi Standard | 2.4GHz 802.11 b/g/n 5GHz 802.11 a/n |
| Network Interface | 10/100 Mbps Ethernet |
| Power Supply | DC12V/1A or PoE |
| PoE Support | Supported |
| Installation | Wall Mount / 86 Box Embedded |
| Protection Grade | IP54 Waterproof & Dustproof |
| Housing Material | ABS |
| Color | White |
| Short Circuit Interface | 1 Input / 1 Output |
| Relay Output | NC/NO Contact |
| Relay Capacity | DC30V/1A, AC125V/0.5A |
| Network Protocol | IPv4 / IPv6 / IPv4&IPv6 |
| IP Configuration | Static IP / DHCP / PPPoE |
| Wi-Fi Security | WPA / WPA2-PSK / 802.1X EAP |
| VPN | L2TP / OpenVPN |
| Network Features | VLAN, LLDP, QoS |
| Audio Codec | G.711A/U, G.729AB, G.723.1, G.726, iLBC |
| Wideband Codec | G.722, Opus |
| Audio Processing | Acoustic Echo Cancellation (AEC) |
| Noise Processing | VAD, CNG, BNE, PLC |
| Jitter Buffer | Dynamic Adaptive Jitter Buffer up to 300ms |
| DTMF | In-band / Out-of-Band (RFC2833 / SIP INFO) |
| Protocols | SIP 2.0 over UDP/TCP/TLS |
| Media Protocols | RTP / RTCP / SRTP |
| Other Protocols | STUN, DHCP, IPv6, LLDP, PPPoE, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069 |
| Provisioning | FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069 |
| Management | Web Management Portal |
| Packet Analysis | Web-based Packet Dump |
| Configuration | Export / Import |
| Firmware Upgrade | Supported |
| Syslog | Supported |
| Status Indicator | Red: Registration/Network Error Green: Registered/Call Active |
| 433MHz Wireless Button | FSK Communication, 433MHz Frequency |
| Wireless Protocol | Ebelong 1.1 |
| Operating Temperature | -10℃ ~ +50℃ |
| Storage Temperature | -20℃ ~ +50℃ |
| Humidity | 10% ~ 90% RH |
| Power Consumption (Adapter) | 0.94W~1.98W (Y501-Y/Y501-Y-E) 1.42W~2.35W (Y501W-Y/Y501W-Y-E) |
| Power Consumption (PoE) | 1.48W~2.37W (Y501-Y/Y501-Y-E) 1.99W~3.05W (Y501W-Y/Y501W-Y-E) |
| Device Dimensions | 87.56 × 87.56 × 30mm (Wall Mount) 87.56 × 87.56 × 21.5mm (86 Box Embedded) |
| Packing Dimension | 234 × 168 × 44mm |
| Quantity / Carton | 10 pcs |
| N.W / CTN | 3.97kg |
| G.W / CTN | 4.40kg |
| Outer Carton Dimension | 356 × 245 × 254mm (10 pcs) |
