FANVIL IP Phone-X303W Enterprise IP Phone

X303W

Kodi i produktit : 970511 Kategori: Fanvil Brand: Fanvil

Description	Specification
Generic	4 SIP Lines, HD Voice, PoE Enabled, 2.4-inch Color Screen
Operation Mode	Handset / Hands-free / Headset Mode
Installation	Desktop Stand / Wall Mountable (Optional)
Power Supply	Optional External Power Supply
Local Phonebook	1000 Entries
Remote Phonebook	XML / LDAP, 1000 Entries
Call Logs	Incoming / Outgoing / Missed, 600 Entries
Blocked List / Allowed List	Supported
Screen Saver	Supported
Voice Message Waiting Indication (VMWI)	Supported
Programmable Keys	DSS / Soft Keys
Network Time Synchronization	Supported
Built-in Wi-Fi	2.4GHz 802.11 b/g/n; 5GHz 802.11 a/n
Wireless Headset Support	Poly Wireless Headset (APD-80 EHS Cable), Jabra Wireless Headset (Fanvil EHS20 EHS Cable)
Recording Support	Through Server
Action URL / Active URI	Supported
XML Browser	Supported
Background Customization	Supported
uaCSTA	Supported
Incoming Call Ringtone	Customizable
Time Plan	Timed Reboot / Timed Forward / Timed Upgrade / Timed Configuration
Hidden DTMF	Supported
BLF / DSS LED	Customizable
UI Display	Customizable
Call Functions	Call Out, Answer, Reject, Mute/Unmute, Hold/Resume, Call Waiting, Intercom, Caller ID, Speed Dial
Anonymous Call	Hide Caller ID / Ban Anonymous Call
Call Forward	Always / Busy / No Answer
Call Transfer	Attended / Unattended
Call Parking / Pickup	Depending on Server
Redial / Callback / Predial	Supported
Do Not Disturb (DND)	Supported / Timed DND
Auto Answering	Supported
SIP SMS	Supported
Voice Message	Through Server
Audio Conference	6-way Audio Conference
Hot Line	Supported
Hot Desking	Supported
Direct IP Call	Without SIP Proxy
Search Function	Fuzzy Search Call
Dial Plan	Supported
Auto Redial	Call Completion / Auto Redial
SIP Server Support	Primary and Backup SIP Servers
Multicast Audio	Supported
HD Audio	HD Handset and HD Speaker
ADC/DAC Sampling	Wideband 16KHz
Narrowband Codec	G.711a/u, G.723.1, G.726, G.729, G.729A, G.729B, G.729AB, iLBC
Wideband Codec	G.722, Opus
Echo Cancellation	Full Duplex Acoustic Echo Canceller (AEC)
Audio Processing	VAD, CNG, BNE, NR, AGC
Packet Loss Concealment (PLC)	Supported
Jitter Buffer	Dynamic Adaptive Jitter Buffer
DTMF	In-band, Out-of-Band (RFC2833 / SIP INFO)
Voice Quality Monitoring	VQM Supported
Ethernet	10/100Mbps Dual Bridged Port for PC Bypass
IP Mode	IPv4 / IPv6 / IPv4&IPv6
IP Configuration	Static IP / DHCP / PPPoE
Network Access Control	802.1X
VPN	L2TP / OpenVPN
Network Features	VLAN, LLDP, QoS
RTCP Support	RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
DNS Support	DNS-SRV (RFC3263)
Server Support	Redundant Servers
Wi-Fi Security	WPA/WPA2-PSK / 802.1X EAP
Protocols	SIP v1 (RFC2543), SIP v2 (RFC3261), UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, LLDP, PPPoE, 802.1x, 802.1p/Q, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069
Encryption	AES128 & AES256
Auto Provisioning	FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
Management	Web Management Portal, Web Packet Dump, Configuration Export/Import, Phonebook Import/Export, Firmware Upgrade, Syslog, Network Firewall, Online Upgrade
LCD Display	2.4-inch Color Screen, 320×240 Resolution
Keypad	36 Keys
Soft Keys	4
Function Keys	9 (Hold, Transfer, Voice Message, Conference, Phonebook, MWI, Headset, Redial, Hands-free)
Line Keys	3 with LED Indicator
Navigation Keys	4
OK Key	1
Standard Digit Keys	12
Volume Control Keys	3 (Up/Down/Mute)
RJ9 Ports	2 (Handset / Headset)
RJ45 Ports	2 (Network / PC Bridged to Network)
Security Slot	1
Power Supply	DC5V/1A or PoE IEEE802.3af
Power Adapter Input	100-240VAC ~ 50/60Hz
Power Adapter Output	5V/1A
Power Consumption (Adapter)	1.218~2.39W
Power Consumption (PoE)	2.12~3.49W
Working Temperature	0°C ~ +45°C
Working Humidity	10% ~ 95%
Installation	Desktop Stand / Wall Mountable
Color	Black
Quantity / Carton	10 PCS
N.W/CTN	8.98kg
G.W/CTN	9.69kg
Device Dimension (Desktop 45°)	169 × 201.1 × 177.4mm
Device Dimension (Desktop 50°)	169 × 191.9 × 185.8mm
Device Dimension (Wall Mount)	169 × 120.1 × 213.7mm
Gift Box Dimension	250 × 220 × 55mm
Outer CTN Dimension	460 × 300 × 270mm (10 PCS)

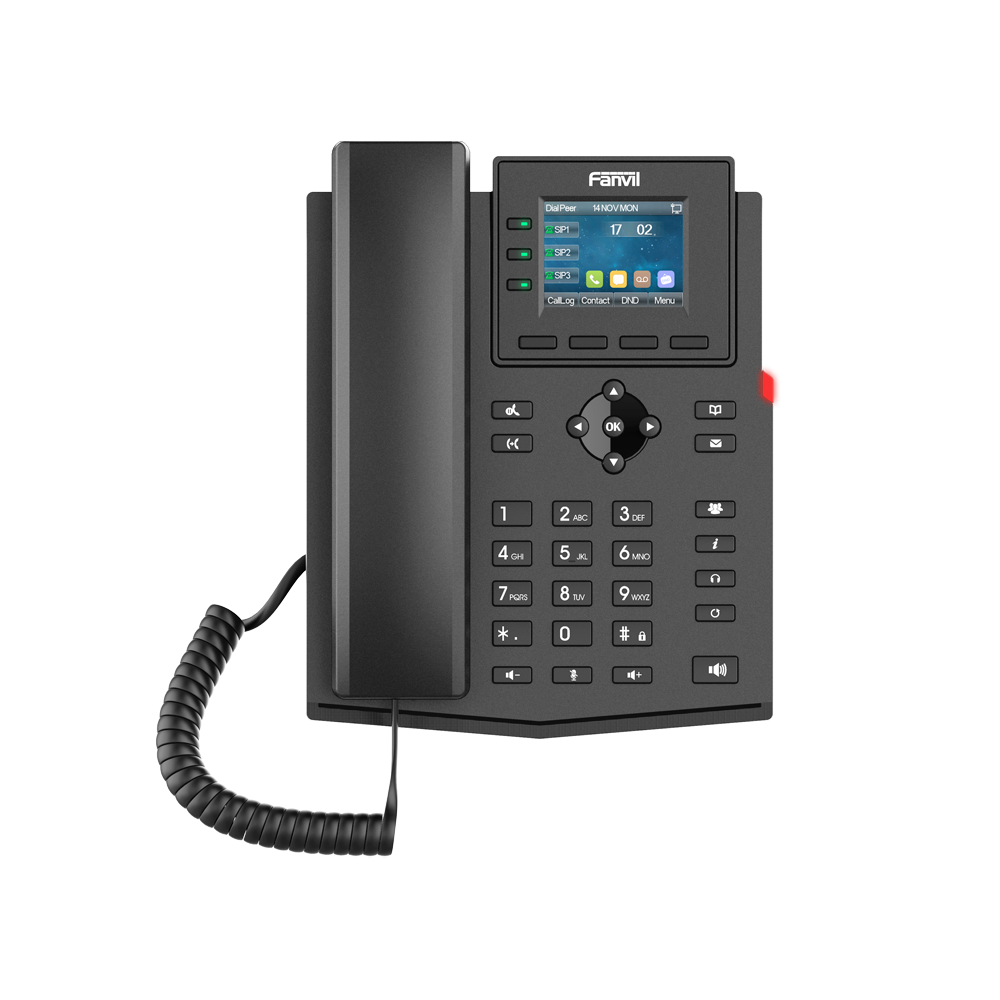

FANVIL IP Phone-X303W Enterprise IP Phone - Figura 1

Click to enlarge

Përshkrim
Specifications

Përshkrim

Telefon IP profesional për komunikim biznesi me mbështetje për 4 linja SIP, ekran me ngjyra 2.4″, Wi-Fi dual band dhe PoE. Pajisja ofron audio HD, konferencë deri në 6 persona, menaxhim të avancuar të thirrjeve, integrim me LDAP/XML, kufje wireless dhe funksione të avancuara për zyra, call center dhe ambiente profesionale.
