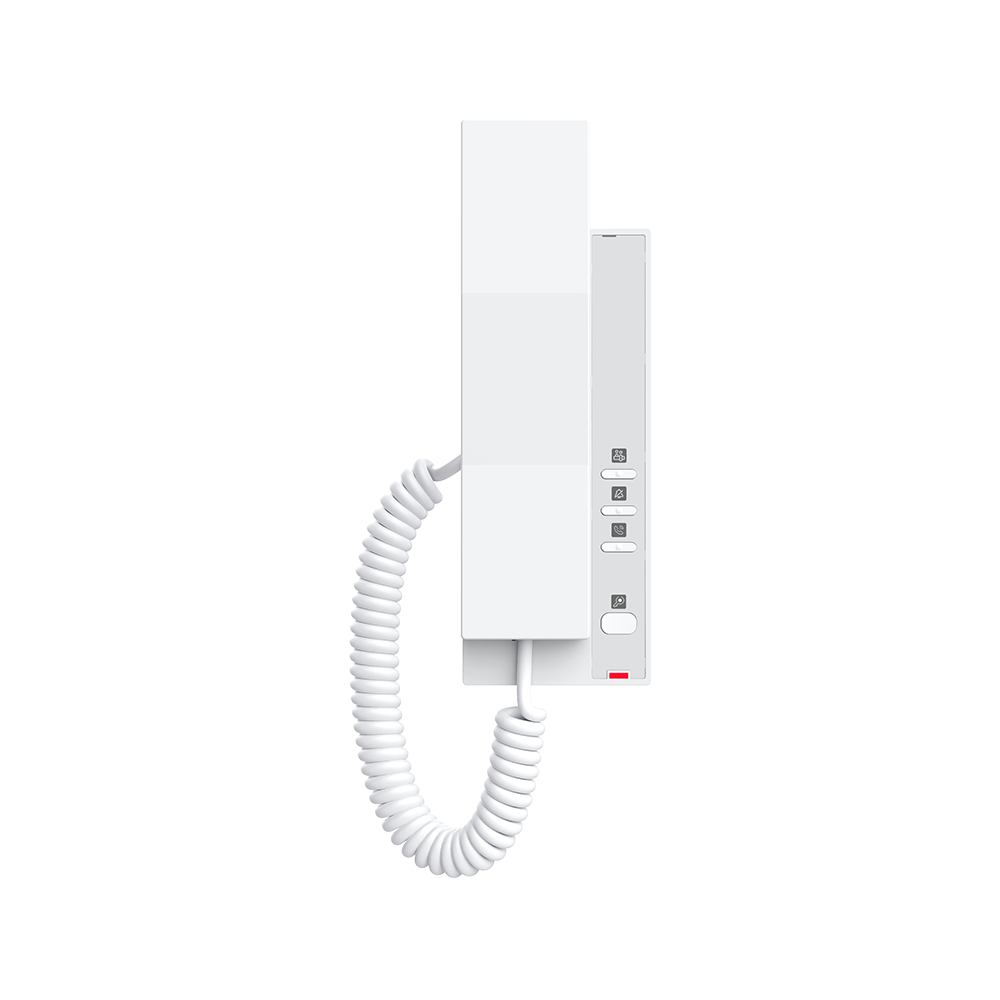

FANVIL Door Phone i501 SIP Indoor Station
i501
Përshkrim
Stacion audio inteligjent për sisteme intercom dhe kontroll hyrje-dalje, i projektuar për komunitete rezidenciale, hotele dhe vila. Pajisja ofron komunikim audio hands-free me cilësi të lartë, mbështetje SIP 2.0, hapje dere nga distanca dhe lidhje Ethernet ose Wi-Fi për integrim fleksibil në sistemet moderne të sigurisë.
Specifications
| Description | Specification |
|---|---|
| Product Type | Indoor Audio Station / SIP Intercom |
| Panel Type | Community, Hotel, Villa |
| Body Material | ABS |
| Speaker | 1W |
| Wi-Fi | 2.4G & 5G Wi-Fi, Wi-Fi 6 Supported (Only i501W) |
| Interface | 1 × Short Circuit Input |
| Network | 10/100Mbps Adaptive Ethernet |
| Power Supply | DC 5V / 1A, PoE 802.3af |
| Power Consumption | i501: PoE 1.44W~2.7W / i501W: Adapter 0.9W~1.7W |
| Working Temperature | 0°C ~ +50°C |
| Storage Temperature | -20°C ~ +50°C |
| Working Humidity | 10% ~ 90% RH |
| Dimension | 195 × 181 × 30mm |
| Installation | Desk / Wall-mounted |
| Supported Protocols | SIP 2.0 over UDP/TCP/TLS |
| Audio Codec (Narrowband) | G.711A/U, G.723.1, G.726-16/24/32/40, G.729AB, iLBC |
| Audio Codec (Broadband) | G.722, OPUS |
| Hands-free Calling | Full-duplex hands-free calling with Acoustic Echo Cancellation (AEC) |
| DTMF | In-band, out-of-band DTMF (RFC2833), SIP Info |
| Do Not Disturb (DND) | Supported, user-defined schedule |
| Incoming Call Ringtones | Customizable |
| Remote Door Unlocking | Supported |
| N.W/CTN | i501: 7.065kg / i501W: 8.28kg |
| G.W/CTN | i501: 7.71kg / i501W: 8.925kg |
| Gift Box Dimension | i501: 105 × 58 × 226mm / i501W: 105 × 58 × 266mm |
| Outer CTN Dimension | i501: 340 × 315 × 245mm (15 PCS) / i501W: 340 × 315 × 285mm (15 PCS) |
