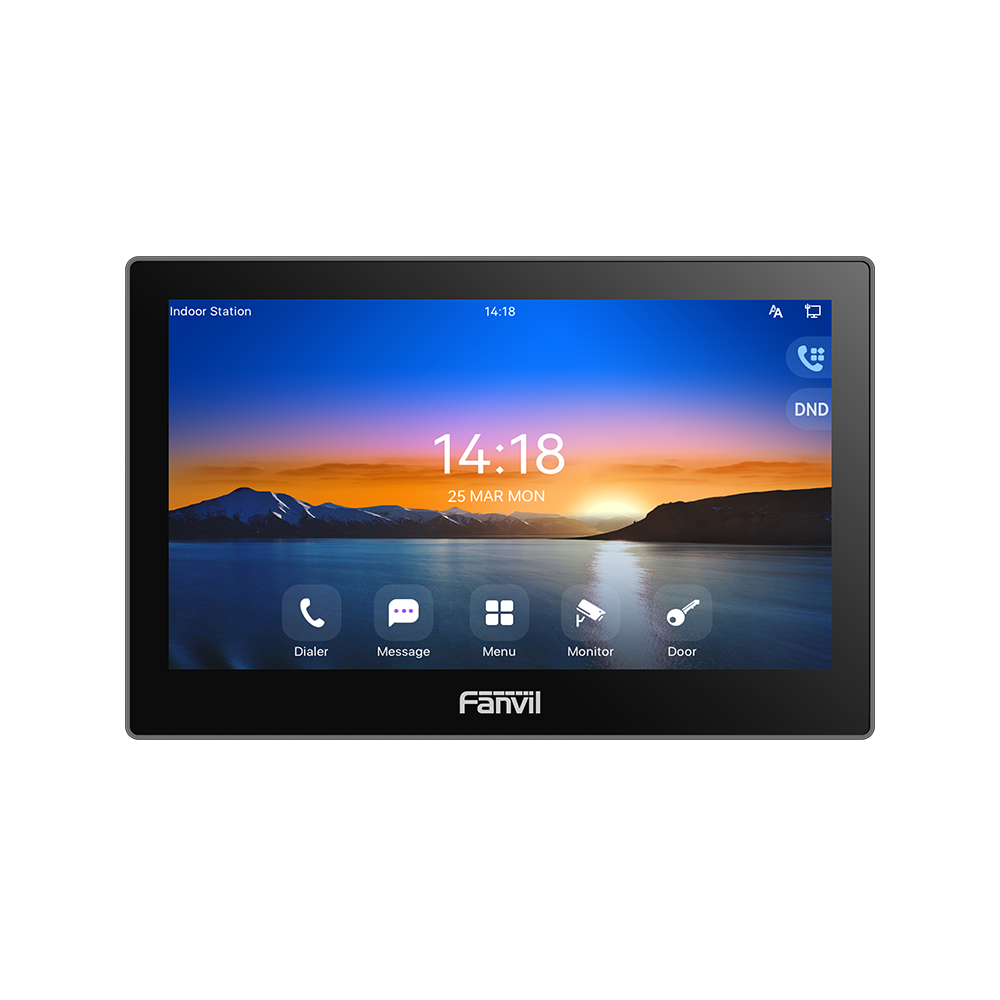

FANVIL Door Phone i504W SIP Indoor Station

i504W

Kodi i produktit : 970547 Kategori: Fanvil Brand: Fanvil

Përshkrim

Monitor inteligjent 7-inch Indoor Station për sisteme Video Intercom, i projektuar për përdorim në komunitete rezidenciale, hotele dhe vila. Pajisja ofron ekran me prekje kapacitive, komunikim audio/video SIP 2.0, Wi-Fi Dual Band, kontroll dere nga distanca dhe integrim me kamera IP të palëve të treta.

Specifications

Description	Specification
Product Type	7-inch Indoor Station / Video Intercom Monitor
Applications	Community, Hotel, Villa
Display	7" Color Capacitive Touch Screen
Resolution	1024 × 600 pixels
Body Material	ABS
Speaker	2W Multimedia Speaker
Wi-Fi	2.4G / 5G Wi-Fi (i504W Supported)
Alarm Inputs	8 × Alarm Input
Output Interface	1 × Short Circuit Output
Doorbell Input	1 × Doorbell Input
RS-485 Interface	1 × RS485 (Reserved)
Network Interface	10/100Mbps Adaptive Ethernet
Power Supply	DC 12V / 1A, PoE IEEE 802.3af
Power Consumption	PoE: 3.65~6.64W / Adapter: 2.71~5.53W
Working Temperature	-10°C ~ +50°C
Storage Temperature	-40°C ~ +80°C
Working Humidity	10% ~ 90% RH
Dimensions	177.38 × 113.99 × 22.5mm
Installation	Wall Mounted

Funksione të mbështetura

Function	Specification
Communication Protocol	SIP 2.0 over UDP/TCP/TLS
Audio Codec (Narrowband)	G.711A/U, G.723.1, G.726 (16/24/32/40kbps), G.729AB, iLBC
Audio Codec (Wideband)	G.722, OPUS
Hands-Free Communication	Full Duplex me Acoustic Echo Cancellation (AEC)
Video Decoding	H.264, H.265 (Opsional)
Video Call Resolution	QVGA, CIF, VGA, 4CIF, 720P, 1080P
DTMF	In-band, Out-of-band (RFC2833), SIP Info
Do Not Disturb (DND)	Mbështetur me konfigurim të orarit nga përdoruesi
