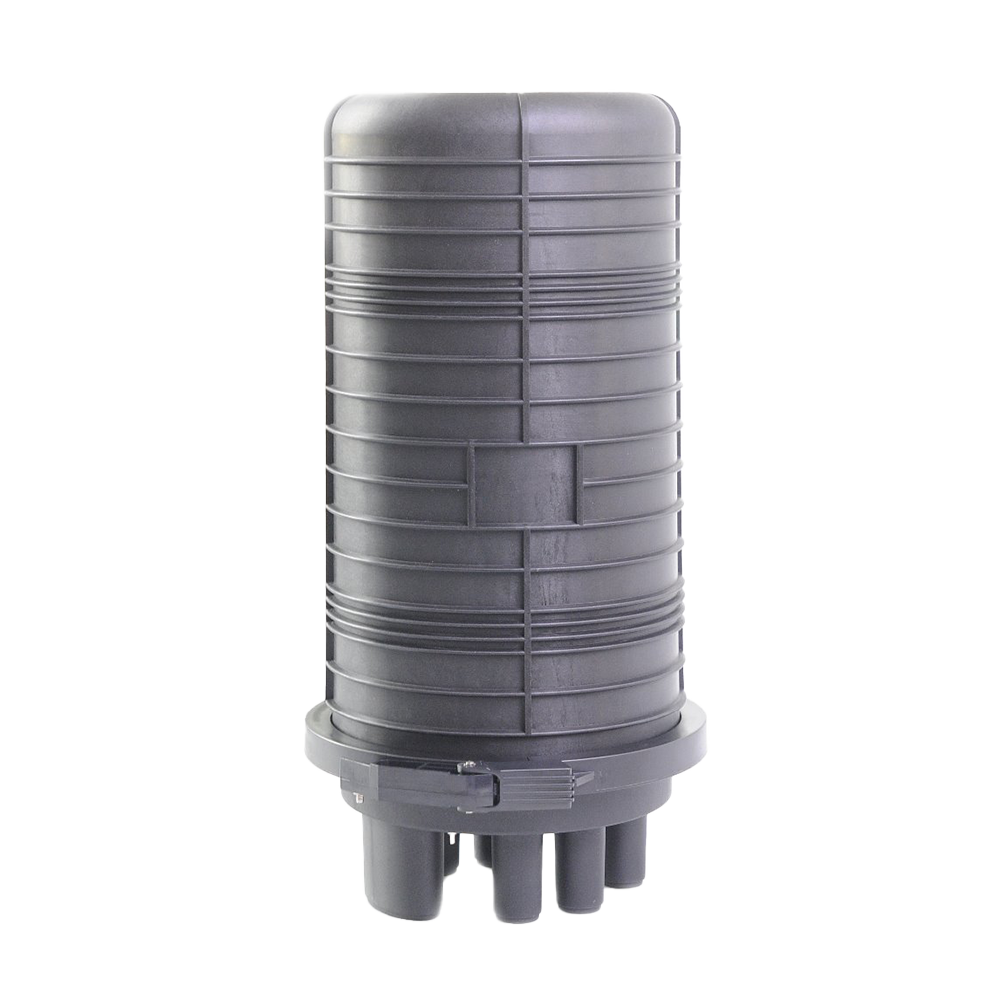

FOSC-96-1 IN 6 OUT-Dome (PC,Heatshrinkble type)


GJS-D023 with the strong housing provides fire-resistant, anti-aging, waterproof,anti-UV, and quakeproof
while protecting splices during pulling, training, and impacting. Used to directly connect or splice optic cable
fibers, in aerial, underground, direct buried, wall-mounting, handhole, and duct mounting applications.
Mounted on a pole, wall, or strand.

Kodi i produktit : 9568 Kategori:

Application:

It can be installed in aerial locations, ducted applications, direct buried, and manholes. Small volume but large capacity.



Features:
1. Excessive fibers can be stored in storage baskets. Easy in fiber management.
2. Fabricated by mixing the imported material and other chemical assistant agents (aging resistance & ultraviolet radiation resistance), and increases service life
3. Base-to-dome seals on FOSC are mechanical and heat-shrinkable for ease of installation and re-entry. No other sealing adhesive tape is needed
4. The splice trays are hinged for access to any splice without disturbing other trays
5. The inner parts and fixing parts are made of 304 stainless steel

6. FOSC with an earthling device protect it from damage by lightning



Technical Parameter:
1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2. Atmospheric Pressure: 70~150Kpa
3. Axial Tension: >2000N/1min
4. Stretching Resistance: 2500N/10 square centimeter (1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius≥ 40mm. Low optical loss.



outside dimension 515*310mm
Weight(exclude package) 3.2~4.0kg
Ports amount 7(1 in 6 out)
diameter of cable 5~38mm
splice tray amount Max. 12
Waterproof level IP68
