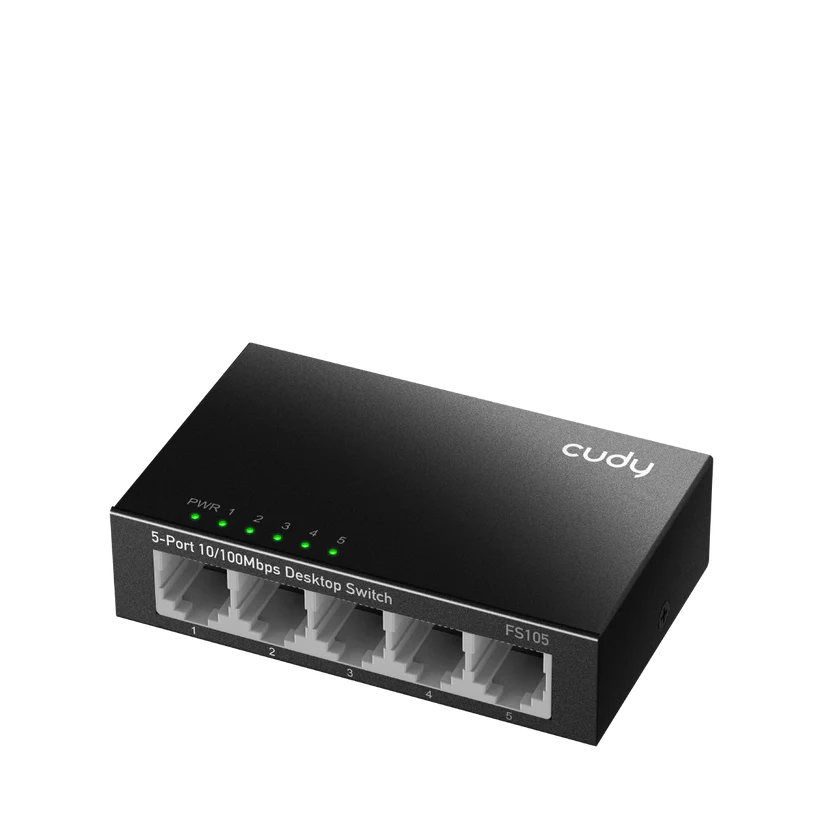

5-Port 10/100 Mbps Metal Switch (FS105 )
6.73 €
Përshkrim
A 5-FE switch with metal casing ideal for wired network expansion in home and office environments.
- 5× Fast Ethernet Ports
- Max 0.9W, Idle 0.25W
- Desktop, Wall-Mount
- Metal Casing
- 86.5×53×23 mm (3.41×2.09×0.91″)
Specification
| Model Version | FS105 3.0 | |
|---|---|---|
| Interfaces | 10/100 Mbps RJ45 Ports | 5 |
| LED |
|
|
| Power Interfaces | DC Jack | |
| Performance | Copper Speed and Distance |
|
| MAC Address Table | 512 | |
| Max Switching Capacity | 1 Gbps | |
| Max Forwarding Rate | 0.744 Mpps | |
| Packet Buffer | 448 Kbit | |
| Power | Basic Power Saving | True |
| Power Methods | DC | |
| Power Input | 5V⎓0.55A | |
| Power Adapter in the Box | Input: 100-240V~, 50/60Hz Output: 5V⎓0.55A |
|
| Max Power Consumption | 0.9W | |
| Idle Power Consumption | 0.25W | |
| Switching | 802.3 Protocols |
|
| Reliability | Environment | Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
| Mechanical | Dimension | 86.5×53×23 mm 3.41×2.09×0.91 inches |
| Product Weight | 106 g (3.74 oz.) | |
| Casing Material | Metal | |
| Installation |
|
|
| Package Content |
|
|
