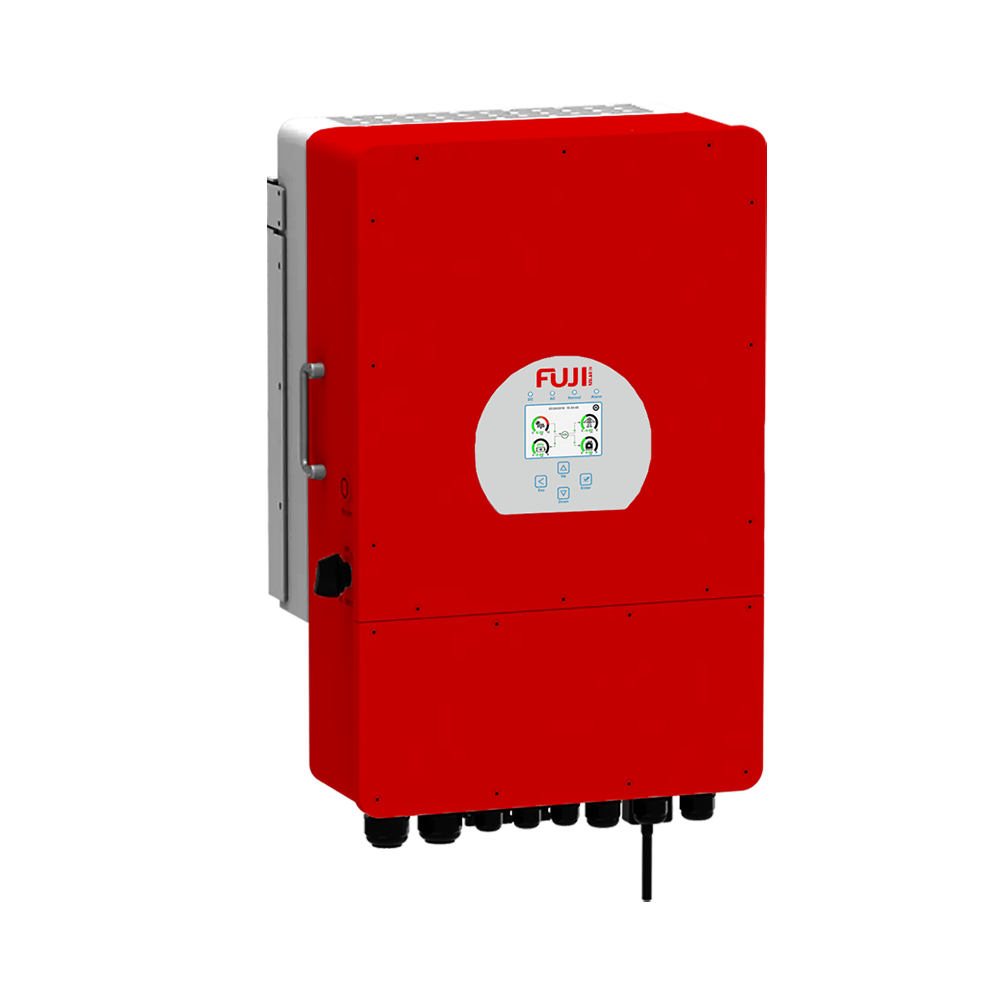

FUJI SOLAR hybrid inverter SUN-10K-SG01HP3-EU-AM-10kW Three Phase

DATASHEET
MANUAL

SUN 10K-SG01HP3-EU-AM2 is brand new three phase hybrid inverter with High voltage battery 160-700V, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.

  • 100% unbalanced output, each phase; Max. output up to 50% rated power
  • DC couple and AC couple to retrofit existing solar system
  • Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
  • Max. charging/discharging current of 50A
  • High voltage battery, higher efficiency
  • 6 time periods for battery charging/discharging
  • Support storing energy from diesel generator
SKU: 8693 Categories: ,
Model SUN-5K-SG01HP3-EU-AM2 SUN-6K-SG01HP3-EU-AM2 SUN-8K-SG01HP3-EU-AM2 SUN-10K-SG01HP3-EU-AM2 SUN-12K-SG01HP3-EU-AM2 SUN-15K-SG01HP3-EU-AM2 SUN-20K-SG01HP3-EU-AM2
 SUN-25K-SG01HP3-EU-AM2
Battery Input Data
Battery Type Lithium-ion
Battery Voltage Range (V) 160~700
Max. Charging Current (A)            37 50
Max. Discharging Current (A)            37 50
Number of Battery Input
 1
Charging Strategy for Li-Ion Battery Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W) 6500 7800 10400 13000 15600 19500 26000
32500
Max. DC Input Voltage (V) 1000
Start-up Voltage (V) 180
 MPPT Range (V) 150-850
Full Load DC Voltage Range (V) 195-850 195-850 260-850
325-850
340-850
420-850
500-850
625-850
Rated DC Input Voltage (V) 600
PV Input Current (A) 20+20 26+20 26+26
Max. PV ISC (A) 30+30 39+30 39+39


No.of MPP Trackers
 2
No.of Strings per MPP Tracker
 1+1 2+1 2+2
AC Output Data
Rated AC Output and UPS Power (W) 5000 6000 8000 10000 12000 15000 20000 25000
Max. AC Output Power (W) 5500 6600 8800 11000 13200 16500 22000
27500
AC Output Rated Current (A)
 7.6/7.3 9.1/8.7 12.2/11.6 15.2/14.5 18.2/17.4 22.8/21.8 30.4/29
37.9/36.3
Max. AC Output Rated Current (A)
 8.4/8 10/9.6 13.4/12.8 16.7/16 20/19.2 25/24 33.4/31.9
41.7/39.9
Max. AC Current (A) 13 13 18 22 25 30 35
40
Generator input/Smart load
/AC couple current (A)
 7.6/40/7.6 9.1/40/9.1 12.2/40/12.2 15.2/40/15.2 18.2/80/18.2 22.8/80/22.8 30.4/80/30.4
37.9/80/37.9
Max. Continuous AC Passthrough (A)
 40 80
Peak Power (offff grid)
1.5 time of rated power, 10 S
Output Frequency and Voltage
 50/60Hz;3L/N/PE 220/380Vac，230/400Vac
Power Factor
0.8 leading to 0.8 lagging
Grid Type
Three Phase
Total Harmonic Distortion (THD)
<3% (of nominal power)
DC current injection
<0.5% In
Efficiency
Max. Efficiency 97.60%
Euro Efficiency 97.00%
MPPT Efficiency 99.90%
Protection
Integrated
Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection, Surge Protection
Output Over Voltage Protection DC Type II / AC Type Ⅲ
Certifications and Standards
Grid Regulation VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Safety EMC / Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (℃) -40~60℃, >45℃ Derating
Cooling Smart cooling
Noise (dB) ≤55 dB
Communication with BMS RS485; CAN
Weight (kg) 30.5
Cabinet Size (WxHxD mm)
408×638×237 (Excluding Connectors and Brackets)
Protection Degree IP65
Installation Style Wall-mounted
