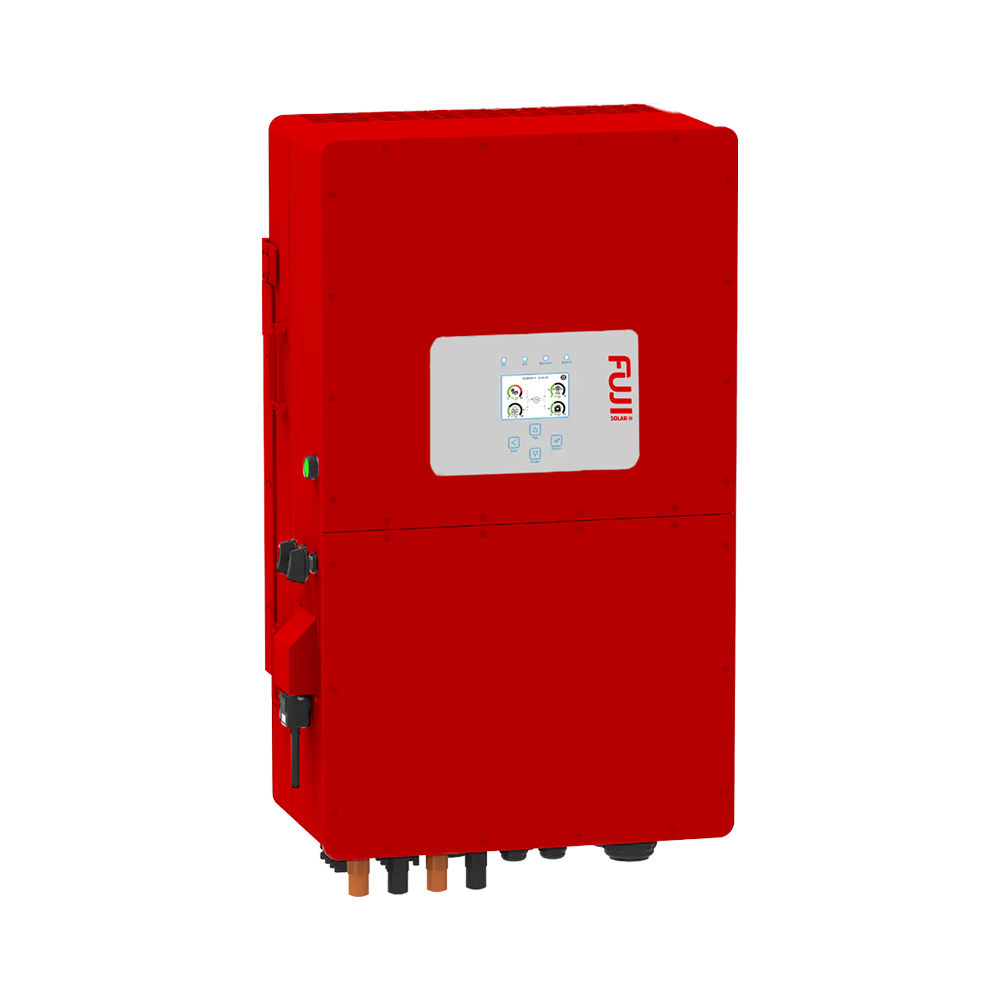

FUJI SOLAR hybrid inverter SUN-50K-SG01HP3-EU-BM4-50kW Three Phase

DATASHEET
MANUAL

SUN-50K-SG01HP3-EU-BM2/3/4 is brand new three phase hybrid inverter with High voltage battery 160-800V, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.



  • 100% unbalanced output；each phase Max. output up to 50% rated power
  • DC couple and AC couple to retrofit existing solar system
  • *Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
  • Max. charging/discharging current of 100A
  • High voltage battery, higher efficiency
  • 6 time periods for battery charging/discharging
  • Support storing energy from diesel generator
SKU: 8692 Categories: ,
Model SUN-29.9K-SG01HP3-EU-BM3 SUN-30K-SG01HP3-EU-BM3 SUN-35K-SG01HP3-EU-BM3 SUN-40K-SG01HP3-EU-BM4
 SUN-50K-SG01HP3-EU-BM4
Battery Input Data
Battery Type Lithium-ion
Battery Voltage Range (V) 160~800
Max. Charging Current (A) 50+50
Max. Discharging Current (A) 50+50
Number of Battery input 2
Charging Strategy for Li-Ion Battery Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W) 38870 39000 45500 52000 65000
Max. DC Input Voltage (V) 1000
Start-up Voltage (V) 180
MPPT Range (V) 150-850
Full Load DC Voltage Range (V)
360-850
360-850
360-850
360-850
450-850
Rated DC Input Voltage (V)
600
PV Input Current (A) 36+36+36 36+36+36 36+36+36 36+36+36+36
Max. PV ISC (A) 55+55+55 55+55+55 55+55+55 55+55+55+55
No. of MPP Trackers 3 4
No. of Strings per MPP Tracker 2+2+2 2+2+2+2
AC Output Data
Rated AC Output and UPS Power (W) 29900 30000 35000 40000 50000
Max. AC Output Power (W) 29900 33000 38500 44000 55000
AC Output Rated Current (A)
 45.4/43.4 45.5/43.5 53.1/50.8 60.7/58 75.8/72.5
Max. AC Output Rated Current (A)
 45.4/43.4 50/47.8 58.4/55.8 66.7/63.8 83.4/79.7
Max. AC Current (A) 60 60 60 70 83.3
Max. Continuous AC Passthrough (A) 200
Peak Power (off grid) 1.5 times of rated power, 10 S
Generator Input/Smart Load /AC Couple Current (A)
 45.4/200/45.4 45.5/200/45.5 53.1/200/53.1 60.7/200/60.7 75.8/200/75.8
Power Factor Adjustment Range
0.8 leading to 0.8 lagging
Output Frequency and Voltage 50/60Hz;3L/N/PE 220/380Vac，230/400Vac
Grid Type Three Phase
Total Harmonic Distortion (THD)
<3% (of nominal power)
DC Current Injection <0.5% ln
Efficiency
Max. Efficiency 97.60%
Euro Efficiency 97.00%
MPPT Efficiency 99.90%
Protection
Integrated
Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection, Surge Protection
Over Voltage Category DC Type II / AC Type Ⅲ
Certifications and Standards
Grid Regulation  VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Safety EMC / Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (℃) -40~60℃, >45℃ Derating
Cooling Smart cooling
Noise (dB) ≤65 dB
Communication with BMS RS485; CAN
Weight (kg) 80
Cabinet Size (WxHxD mm)
527×894×294 (Excluding Connectors and Brackets)
Protection Degree IP65
Installation Style Wall-mounted
