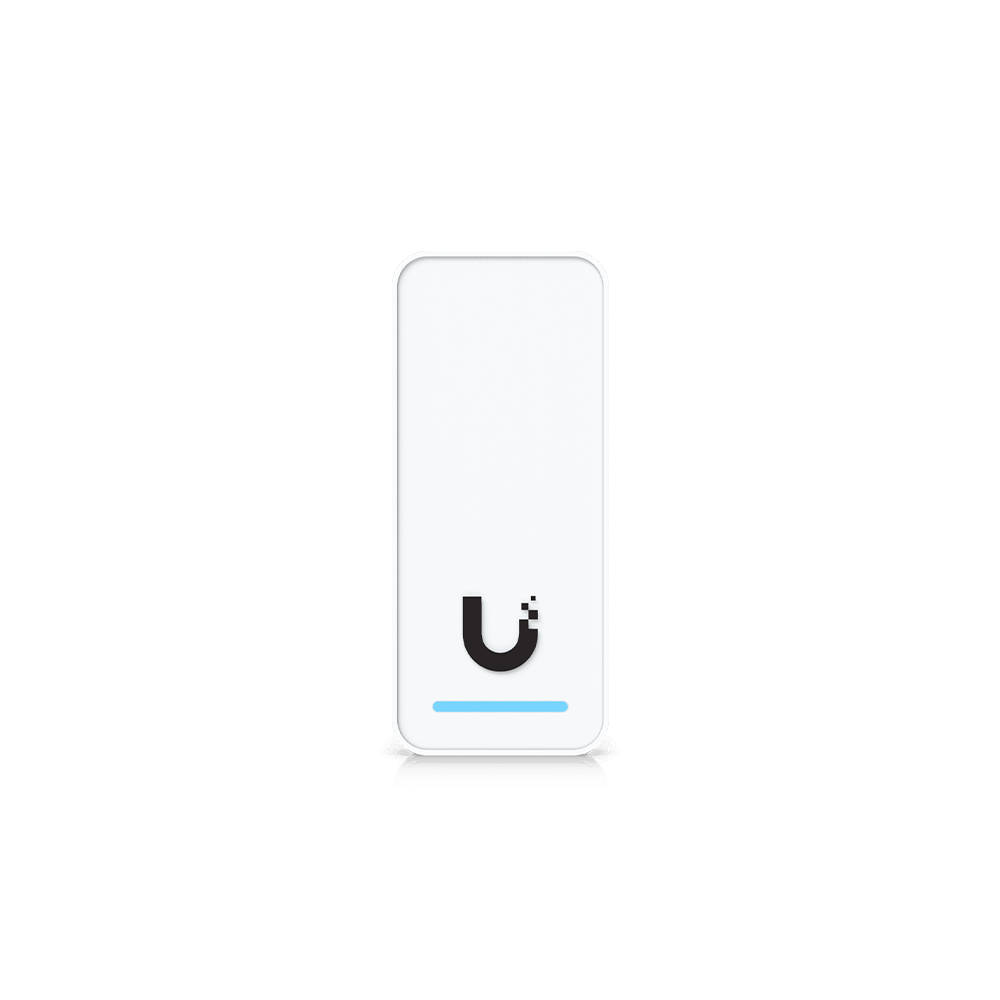

Ubiquiti UniFi Access Reader G2 (UA-G2)
The Ubiquiti UniFi Access G2 is a cutting-edge access control system that offers convenient and secure entry to your premises. With the ability to unlock using either an NFC card or the UniFi Identity mobile app, authorised individuals can easily gain access. The device boasts additional handwave unlock functionality, further enhancing accessibility.
The UniFi Access G2 features entry and exit greeting messages, allowing for personalised and informative interactions. By connecting to the UniFi Access Hub using Power over Ethernet (PoE), it ensures a seamless integration into your network infrastructure.
Its IP55 weather resistance rating enables reliable operation in a wide range of environmental conditions, spanning from -30 to 45°C.
Ubiquiti UniFi UA-G2 Key Features
- Unlock using an NFC card or UniFi Identity mobile app
- Additional handwave unlock functionality
- Entry and exit greeting messages
- Connects to UniFi Access Hub using PoE
- IP55 weather resistance (-30 to 45° C)
UniFi Access App
The UniFi Access mobile app is a convenient, comprehensive management tool that allows you and other administrators to oversee every aspect of your access system, including connected doors, user rosters, reader devices, access cards, and security policies. With the app, you can also view real-time access event logs to maintain full vantage of visitor and employee traffic through your workplace.
Ubiquiti UniFi UA-G2 Technical Specifications
Mechanical
- Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4″)
- Weight: 82 g (2.9 oz)
- Enclosure material: Polycarbonate, glass
- Mounting: In wall, gang box
- Weatherproofing: IP55
Hardware
- Networking interface: (1) 10/100 MbE RJ45 port
- Connectivity: BLE 4.1
- Power method: PoE
- Supported voltage range: 48V DC
- Max. power consumption: 5W
- ESD/EMP protection: Air: ±15kV, contact: ±8kV
- Sensors: Proximity sensor
- Speaker: (1) 8 ohm, 0.7W
- LEDs: R/G/B/W
- Button: (1) Factory-reset
- NFC frequency: 13.56 MHz
- NFC read range: < 30 mm
- NFC standards: ISO 14443A, 14443B, 15693
- NFC technology: NFC Tag 1,2,3,4,5, MIFARE Classic, MIFAREPlus, MIFARE Ultralight, MIFARE DESFire
- Operating temperature: -30 to 45° C (-22 to 113° F)
- Operating humidity: 5 to 90% noncondensing
- Certifications: CE, FCC, IC
Software
- Management application: UniFi Access: Version 1.5.9 and later
| Category | Specification |
|---|---|
| Overview | |
| Dimensions | 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4″) |
| NFC Card & Keyfob Access | Yes |
| Mobile Unlock | Yes |
| Handwave Request to Exit | Yes |
| Weatherproofing | IP55 |
| Mechanical | |
| Weight | 82 g (2.9 oz) |
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |
| Mounting | In-wall, gang box (Included); Junction box (Optional) |
| Hardware | |
| Indoor and Outdoor Use | Yes |
| Ambient Operating Temperature | -30 to 45° C (-22 to 113° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1, NFC |
| Power Method | PoE |
| Power Compliance | UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 5W |
| Supported Voltage Range | 48V DC |
| ESD/EMP Protection | Air: ±15kV, Contact: ±8kV |
| Sensors & Indicators | |
| Sensors | Proximity sensor |
| Speaker | Yes |
| LEDs | R/G/B/W |
| Button | (1) Factory-reset |
| NFC Details | |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18”) |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) |
| MIFARE Classic / MIFARE DESFIRE | |
| Sony FeliCa™ (ID only) | |
| NFC Forum tags T1T, T2T, T3T, T4T and T5T | |
| Cabling & Power Standards | |
| PoE Cabling Requirements | Min Cat 5e; 26 AWG for patch cords, 24 AWG for horizontal/riser cables |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| UL 294 Statement | Compliance with IEEE 802.3 not verified. Complies with ANSI/NFPA 70, Article 725.121 |
| CAN/ULC-60839-11-1 Grade | Grade I |
| Certifications & Compliance | |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document Info | UA-G2/UA-G2-Black, V02 |
| NDAA Compliant | Yes |
