hAP ax S
Përshkrim

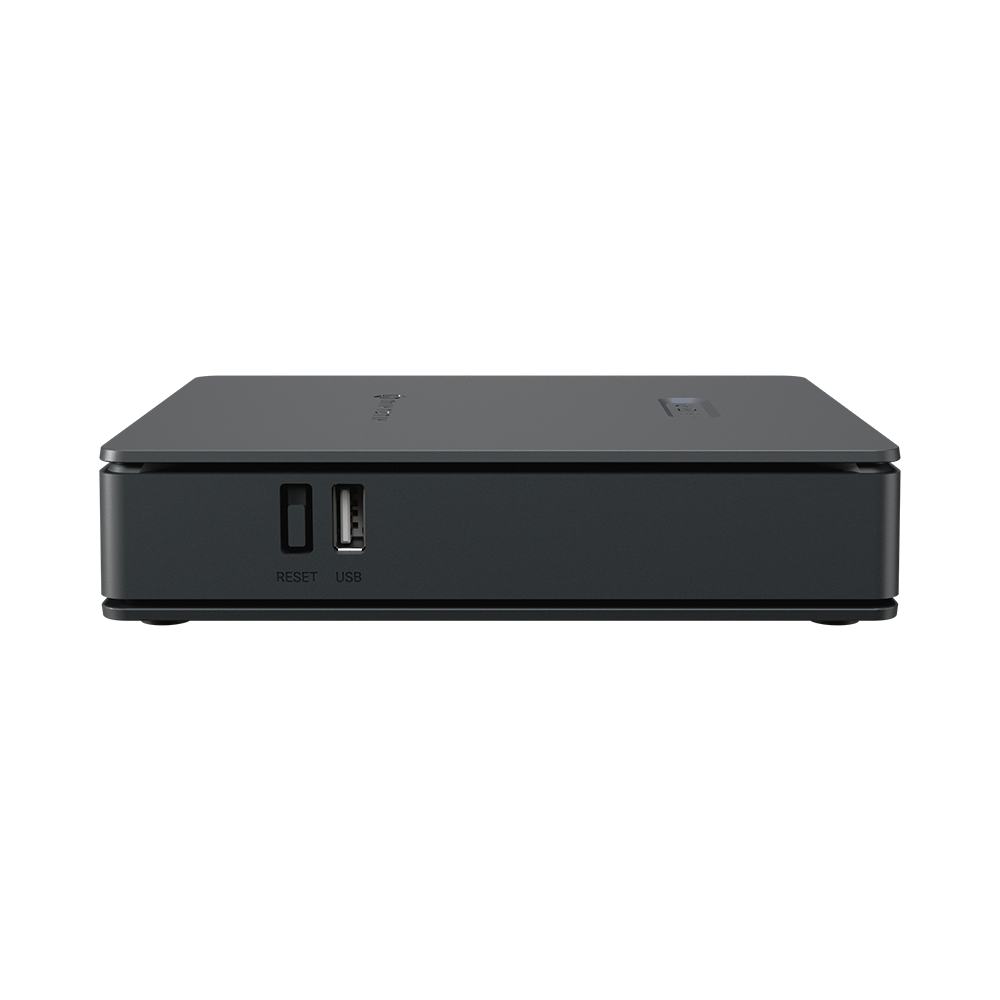

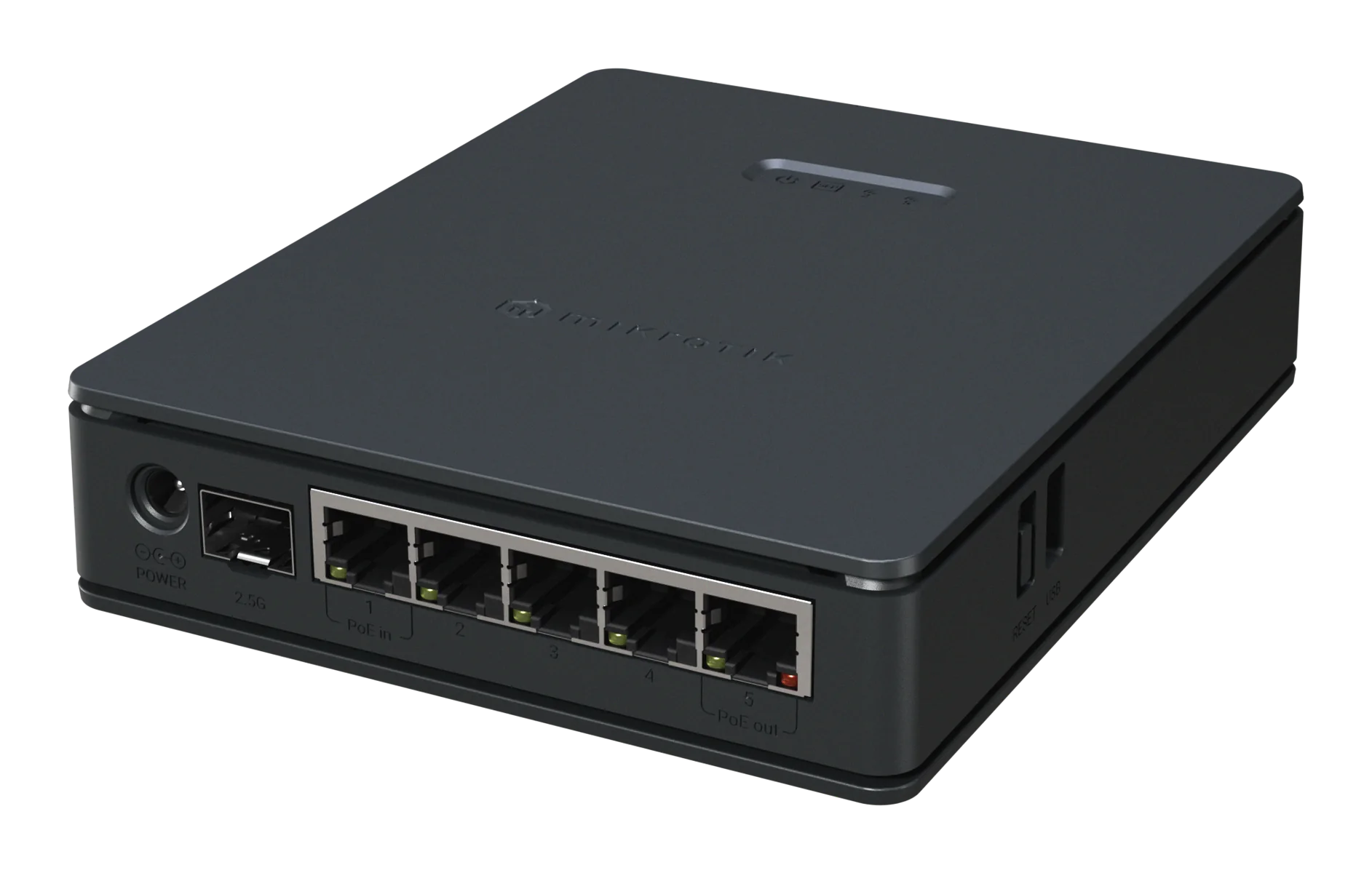

Our most cost-effective Wi-Fi 6 access point yet. Triple-chain 5 GHz radio (up to 900 Mbit/s throughput), dual-band Wi-Fi 6, 5x Gigabit Ethernet ports, and a 2.5G SFP. Powered by a dual-core ARM CPU, with PoE-in/PoE-out flexibility, a standard DC jack, USB, and a sturdy high-end enclosure that can be mounted on the wall.
Specification
Specifications
- Product codeE62iUGS-2axD5axT
- Suggested price$79.00
- ArchitectureARM 32bit
- CPUEN7562CT
- CPU core count2
- CPU nominal frequency950 MHz
- CPU Threads count2
- Switch chip modelEN7523
- RouterOS license4
- Operating SystemRouterOS v7
- Size of RAM512 MB
- Storage size128 MB
- Storage typeNAND
- MTBFApproximately 100'000 hours at 25C
- Tested ambient temperature-40°C to 70°C
Wireless capabilities
- Wireless 2.4 GHz Max data rate574 Mbit/s
- Wireless 2.4 GHz Number of chains2
- Wireless 2.4 GHz standards802.11b/g/n/ax
- Antenna gain dBi for 2.4 GHz5.5
- Wireless 2.4 GHz chip modelMT7916
- Wireless 2.4 GHz generationWi-Fi 6
- Wireless 5 GHz Max data rate1800 Mbit/s
- Wireless 5 GHz Number of chains3
- Wireless 5 GHz standards802.11a/n/ac/ax
- Antenna gain dBi for 5 GHz6.5
- Wireless 5 GHz chip modelMT7976
- Wireless 5 GHz generationWi-Fi 6
- WiFi speedAX2400
Ethernet
- 10/100/1000 Ethernet ports5
- Number of 1G Ethernet ports with PoE-out1
Fiber
- SFP ports1 (2.5G supported)
Peripherals
- Number of USB ports1
- USB Power ResetYes
- USB slot typeUSB type A
- Max USB current (A)1
Powering
- Number of DC inputs2 (DC jack, PoE-IN)
- DC jack input Voltage12-28 V
- Max power consumption34 W
- Max power consumption without attachments11 W
- PoE inPassive PoE
- Cooling typePassive
- PoE in input Voltage18-28 V
PoE-out
- PoE-out portsEther5
- PoE outPassive PoE
- Low voltage PoE-Out current limit0.6 A
- Max total out (A)0.6 A
- Total output current0.6
- Total output power16.8
Certification & Approvals
- CertificationCE, FCC, IC, EAC, ROHS
- IP20
Other
- CPU temperature monitorYes
Included parts
Note
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
Wireless Specification
2.4 GHz
Transmit (dBm)
Receive Sensitivity
1MBit/s
24
-100
11MBit/s
24
-94
6MBit/s
23
-96
54MBit/s
21
-80
MCS0
22
-96
MCS7
20
-75
MCS9
19
-70
MCS11
15
-67
5 GHz
Transmit (dBm)
Receive Sensitivity
6MBit/s
23
-96
54MBit/s
21
-81
MCS0
23
-96
MCS7
20
-77
MCS9
20
-72
MCS11
18
-69
Ethernet test results
| E62iUGS-2axD5axT | EN7562CT 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 340.3 | 4132.4 | 389 | 1593.5 | 402.6 | 219 |
| Bridging | 25 bridge filter rules | 190.6 | 2315.1 | 197 | 806.8 | 193.9 | 105.5 |
| Routing | none (fast path) | 300.3 | 3646.6 | 340.5 | 1394.7 | 342.2 | 186.1 |
| Routing | 25 simple queues | 173.1 | 2102.6 | 174.3 | 713.8 | 171.9 | 93.5 |
| Routing | 25 ip filter rules | 117.8 | 1430.3 | 121.6 | 498.1 | 117 | 63.6 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
IPsec test results
| E62iUGS-2axD5axT | EN7562CT IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 31.4 | 351.7 | 34.8 | 142.5 | 37.2 | 20.2 |
| 256 tunnels | AES-128-CBC + SHA1 | 16.8 | 188.2 | 17.6 | 72.1 | 18.5 | 10.1 |
| 256 tunnels | AES-128-CBC + SHA256 | 16.9 | 189.3 | 17.9 | 73.3 | 18.7 | 10.2 |
| 256 tunnels | AES-256-CBC + SHA1 | 16.8 | 188.2 | 17.6 | 72.1 | 18.7 | 10.2 |
| 256 tunnels | AES-256-CBC + SHA256 | 16.9 | 189.3 | 17.9 | 73.3 | 18.9 | 10.3 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
