hAP lite

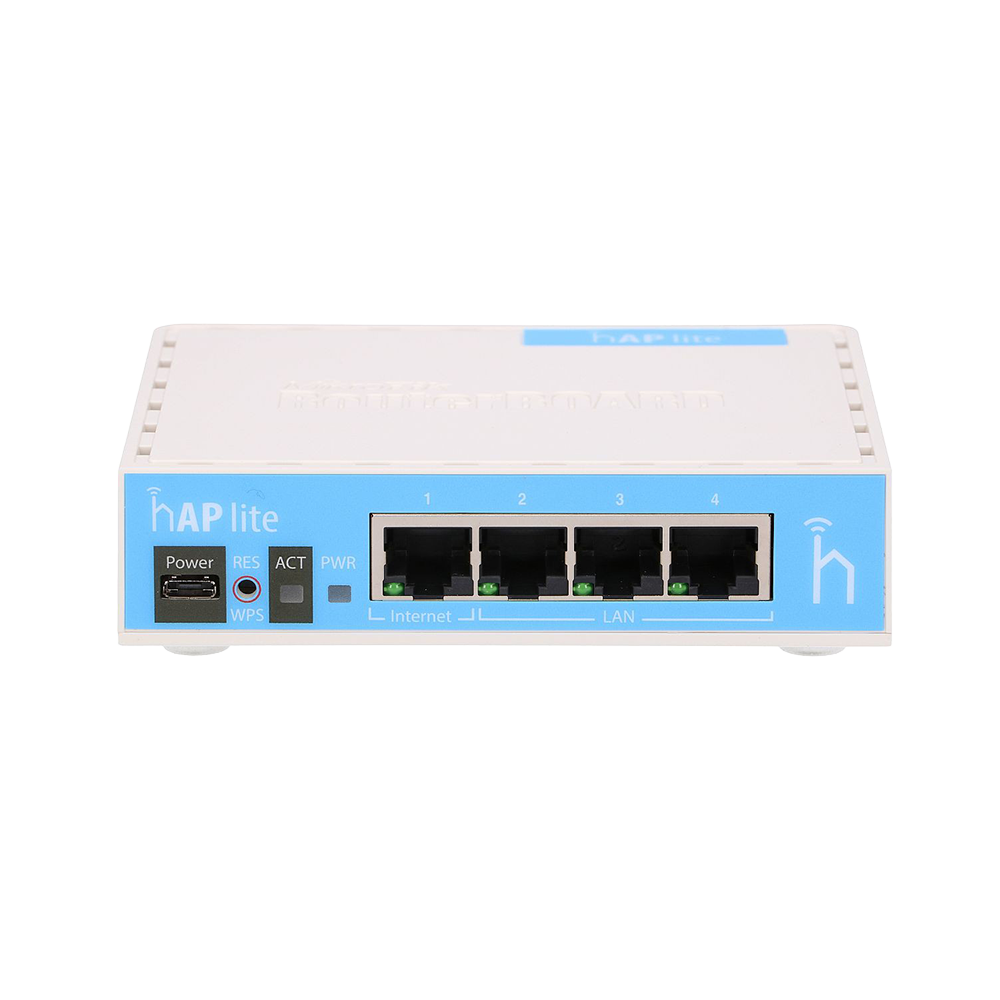

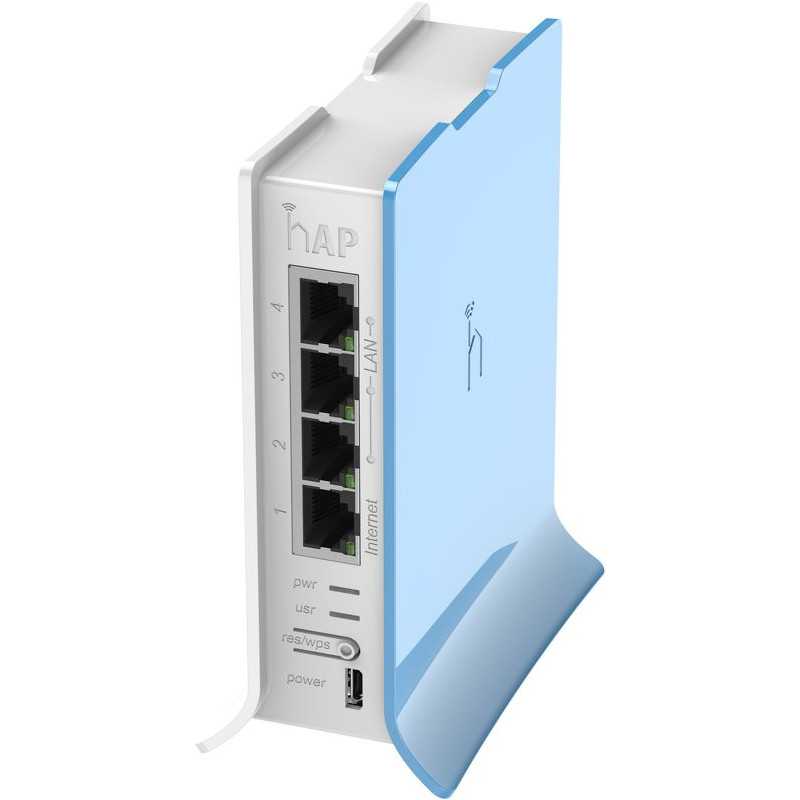

RB941-2nD-TC – hAP Lite with 650MHz CPU, 32MB RAM, 4xLAN, built-in 2.4Ghz 802.11b/g/n 2×2 two chain wireless with integratedantennas, RouterOS L4, tower case, PSU

DATASHEET

25.53

The home Access Point lite (hAP lite) is an ideal little device for your apartment, house or office.

It supports button triggered WPS, for the convenience of not typing a complicated password when somebody wants to have wireless internet access, and can also be told to change to cAP mode and join a CAPsMAN centrally managed network by the push of a button.

Of course, the device runs RouterOS with all the features, bandwidth shaping, firewall, user access control and many others.

The hAP lite is equipped with a powerful 650MHz CPU, 32MB RAM, dual chain 2.4GHz onboard wireless, four Fast Ethernet ports and a RouterOS L4 license. USB power supply is included.

Details
Product code RB941-2nD
Architecture SMIPS
CPU QCA9533
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model QCA9533-BL3A
RouterOS license 4
Operating System RouterOS
Size of RAM 32 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -20°C to 60°C

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.5
Wireless 2.4 GHz chip model QCA9533
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports 4

Powering

Details
MicroUSB input Voltage 5 V
Number of DC inputs 1 (MicroUSB)
Max power consumption 3.5 W
Cooling type Passive

Certification & Approvals

Details
Certification FCC, IC

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71
