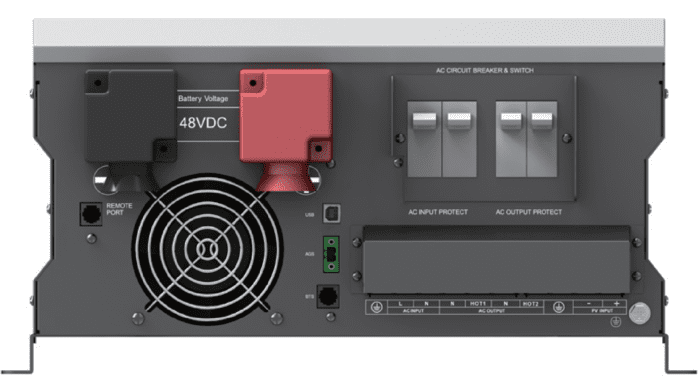

Inverter 8000W 48VDC MPPT 100A PV-145V
1 690.00 €
Inverter 8000W is a multi-function inverter ,combining functions of inverter and MPPT solar charger controller, solar charger and battery charger to offer uninterruptible power support. The comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and selectable input voltage based on different applications.
Përshkrim
- Smart LCD setting(Working modes, Charge Current, Charge voltage, etc.)
- Built-in MPPT solar charge controller 100A
- MPPT efficiency max 98%
- Powerful charge rate up to 80Amp
- DC start &Automatic Self-Diagnostic Function
- USB monitoring function
- Supporting AGS, BTS port
- Compatible to generator
MODEL : 8000w Nominal Battery System Voltage 48VDC INVERTER OUTPUT Rated power Surge rating 24000VA Capable of starting electric motor Waveform Pure sine wave / same as input (bypass mode) Nominal output voltage RMS 100V/110V/120V/200V/220V/240V Output frequency 50Hz / 60Hz ± 0.3Hz Inverter effciency(peak) >88% Line mode efficiency >95% Power factor 1.0 Typical transfer time 20ms(max) AC INPUT Voltage 220V/230V/240V Selectable voltage range 90-280 VAC (APL) Frequency range 50Hz / 60Hz BATTERY Low battery voltage cutoff 40-48VDC for 48VDC mode Low battery voltage recover 42-50VDC for 48VDC mode High battery voltage cutoff 60VDC for 48VDC mode High battery voltage recover 57VDC for 48VDC mode Idle consumption-search mode < 60W when power saver on AC CHARGER Output voltage Depends on battery type Charger AC input breaker rating 80A Overcharge protection S.D. 31.4VDC for 24VDC mode (62.8VDC for 48VDC mode ) Maximum charge current BTS Continuous output power Yes Variances in charging voltage & S.D. voltage base on the battery temperature BYPASS & PROTECTION Input voltage waveform Sine wave (grid or generator) Nominal input frequency 50Hz or 60Hz Overload protection (SMPS Load) Circuit breaker Output short circuit protection Circuit breaker Bypass breaker rating 63A 63A 63A Max bypass current 80Amp SOLAR CHARGER Maximum PV charge current 100A DC voltage 48V Maximim PV array power 5000W(10000W for 200A optional) MPPT range @ operating voltage(VDC) 64~145VDC Maximum PV array open circuit voltage 145VDC Maximum effciency >98% Standby power consumption <2W MECHANICAL SPECIFICATIONS Mounting Wall mount Dimensions (W*H*D) 670*410*215mm Net weight (solar CHG) (kg) 69 2.5 Shipping dimensions (W*H*D) 884*618*443mm Shipping weight (Solar CHG) (kg) 82.5 2.5 OTHER Operation temperature range 0°C to 40°C Storage temperature -15°C to 60°C Audible noise 60dB MAX Display LED LCD
