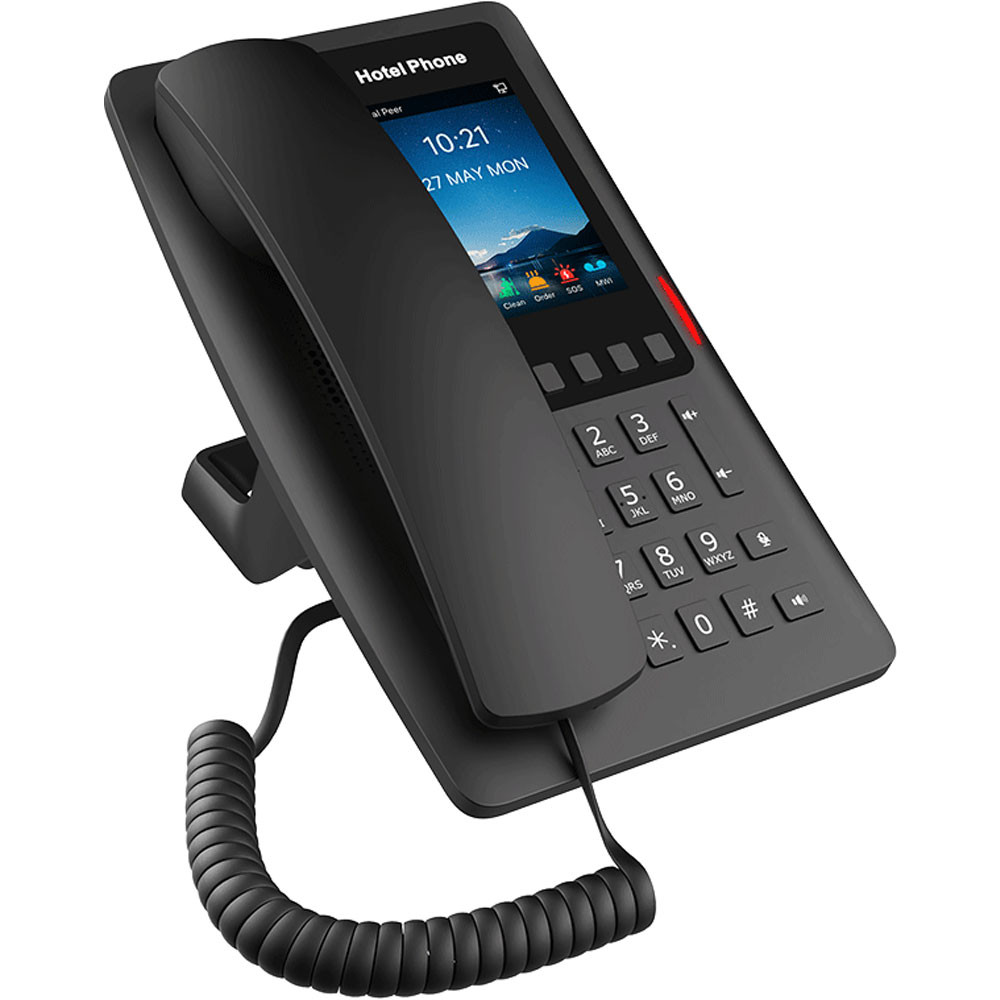

H6W Wi-Fi IP Phone

Generic
⚫ 2 SIP Lines
⚫ HD Voice
⚫ PoE
⚫ Built-in dual-band 2.4GHz & 5GHz Wi-Fi (Wi-Fi 6)
⚫ Hand set / Hands-free mode
⚫ Intelligent DSS Keys (speed dial key)
⚫ Desktop Stand
⚫ Optional External Power Supply
Phone Functions
⚫ Programmable DSS/soft keys
⚫ Action URL / Active URI
⚫ Built-in dual-band 2.4GHz & 5GHz Wi-Fi (Wi-Fi 6)
➢ 2.4GHz, 802.11 b/g/n
➢ 5GHz, 802.11 a/n/ac/ax
⚫ Web dial
⚫ Dial plan
⚫ SIP Hotspot
⚫ Distinctive ring
⚫ Multicast
Call Functions
⚫ Call out / Answer
⚫ Mute / Unmute
⚫ Call Hold / Resume
⚫ Speed Dial
⚫ Redial
⚫ Hot Line
⚫ Voice Message
Audio
⚫ Wideband ADC/DAC 16KHz sampling
⚫ Narrowband codec: G.711A/U, G.729AB, G723.1, G726, iLBC
⚫ Wideband codec: G.722, Opus
⚫ Full-duplex hands-free speakerphone with AEC
⚫ Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)
/ Background Noise Estimation (BNE) / Noise Reduction (NR)/
Automatic Gain Control (AGC)
⚫ Packet Loss Concealment (PLC)
⚫ Dynamic Adaptive Jitter Buffer
⚫ DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
⚫ VQM voice quality monitoring
Network
⚫ 10/100 Mbps Ethernet
⚫ IP Mode: IPv4/IPv6/IPv4&IPv6
⚫ IP Configuration: Static / DHCP / PPPoE
⚫ Wi-Fi Encryption: WPA /WPA2-PSK /802.X EAP
⚫ Network Access Control: 802.1x
⚫ VPN: L2TP / OpenVPN
⚫ VLAN: 802.1P/Q
⚫ QoS
⚫ LLDP
⚫ RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)
Protocols
⚫ SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
Fanvil H6W is a cost-effective Wi-Fi IP phone with multiple functions and an elegant
appearance. It is equipped with 5 programmable soft keys for the services hotline,
catering to diverse hotel scenarios. H6W has built-in dual-band 2.4GHz & 5GHz WiFi (Wi-Fi 6), ensuring seamless connectivity. Additionally, it features HD voice,
10/100Mbps Ethernet, and PoE, enhancing the overall user experience while
reducing hotel deployment costs. It is more than a hotel phone and can also be
applied in multiple scenarios, such as shopping malls, hospitals, and supermarkets.
Highlights
□√ 3.5-inch 320x480 IPS screen, customizable background image
□√ Support image slideshow in screensaver mode
□√ 5 programmable softkeys, supporting custom hotel service numbers and icons
□√ Customizable softkeys’ icons and hotel service numbers
□√ Built-in dual-band 2.4GHz & 5GHz Wi-Fi (Wi-Fi 6)
□√ Factory default SSID configuration
□√ Sleep mode to reduce energy consumption
□√ USB interface charging, no need for additional converters
⚫ RTP/RTCP/SRTP
⚫ STUN
⚫ DHCP
⚫ IPv6
⚫ PPPoE
⚫ L2TP
⚫ OpenVPN
⚫ SNTP
⚫ FTP/TFTP
⚫ HTTP/HTTPS
⚫ TR-069
Deployment & Management
⚫ Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
PNP/TR-069
⚫ Web management portal
⚫ Web-based packet dump
⚫ Configuration export / import
⚫ Firmware upgrade
⚫ Syslog
Physical Specifications
⚫ LCD: 3.5-inch 320x480 IPS screen
⚫ Keypad: 21 keys, including
➢ 12 Standard Phone Digits keys
➢ 5 DSS keys
➢ 3 Function keys (Up/Down/Mute)
➢ 1 hands-free key
⚫ MSG indicator (with red color LED) x1
⚫ Handset (RJ9) x1
⚫ Standard RJ9 Handset Cord x1
⚫ 1.5M CAT5 Ethernet Cable x1
⚫ RJ9 Port x1: Handset x1
⚫ RJ45 Port x1: Network x1
⚫ USB-A Port x1
⚫ Power: DC 5V 2A or PoE
⚫ Power Consumption (PoE): 1.56~8.29 W
⚫ Power Consumption (Adapter): 0.97~6.08 W
⚫ Working Temperature: 0~45℃
⚫ Working Humidity: 10~95%
⚫ Installation:
➢ Desktop
⚫ Color: Black/White
⚫ Qty/CTN: 10 pcs
⚫ N.W/CTN: 8.15 kg
⚫ G.W/CTN: 9.10 kg
⚫ Device Dimensions:
➢ Desktop Stand(30°): 221x127.5x70.5 mm
⚫ Gift Box Dimensions: 168x228x85 mm
⚫ Outer CTN Dimensions: 476x445x188 mm (10 PCS)
