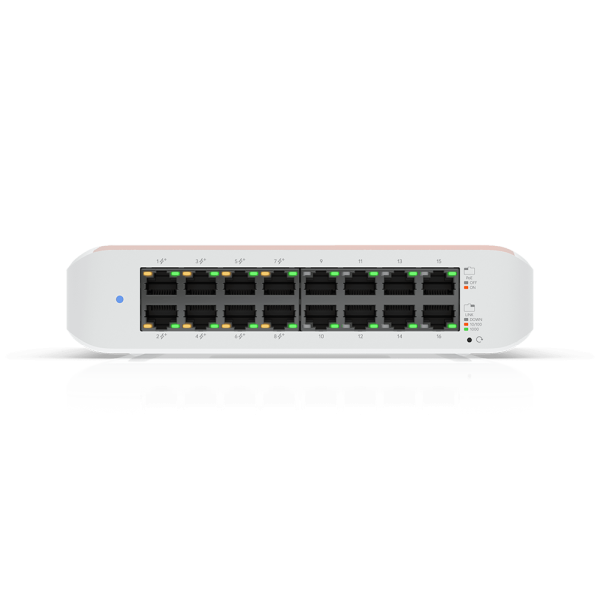

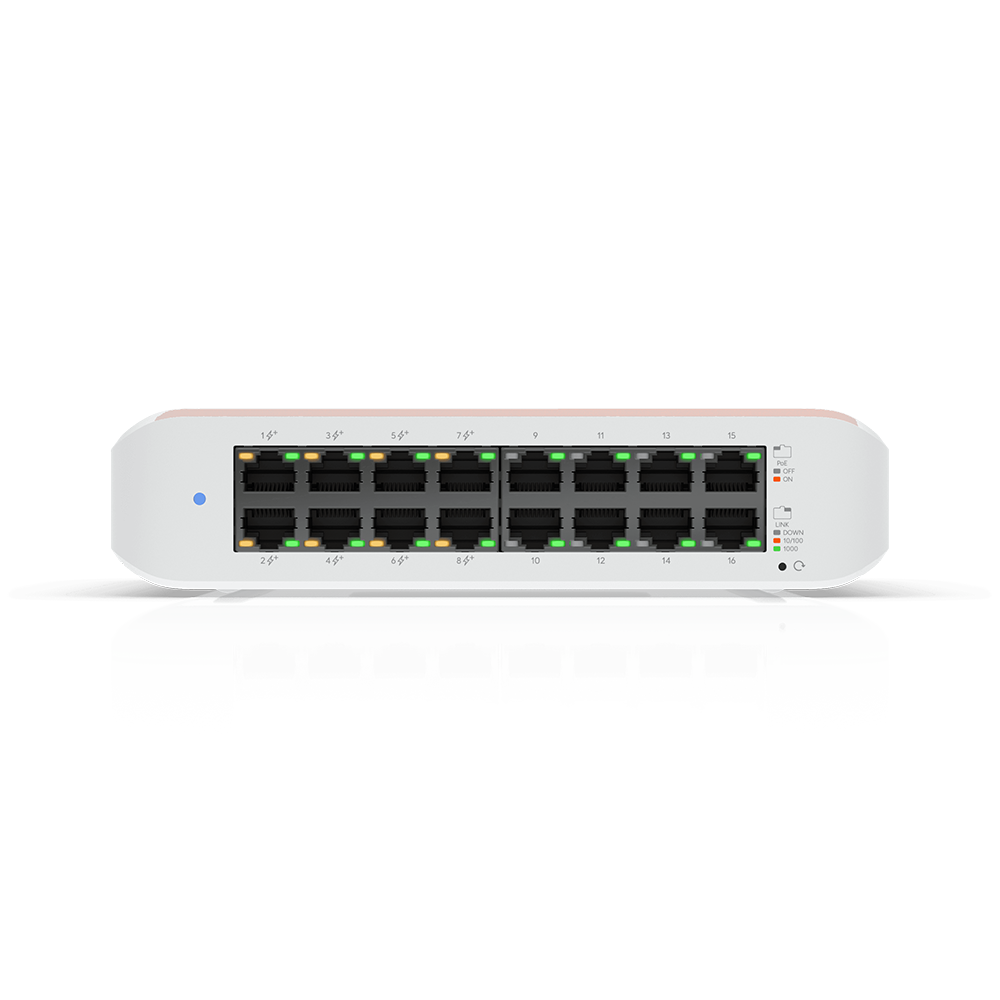

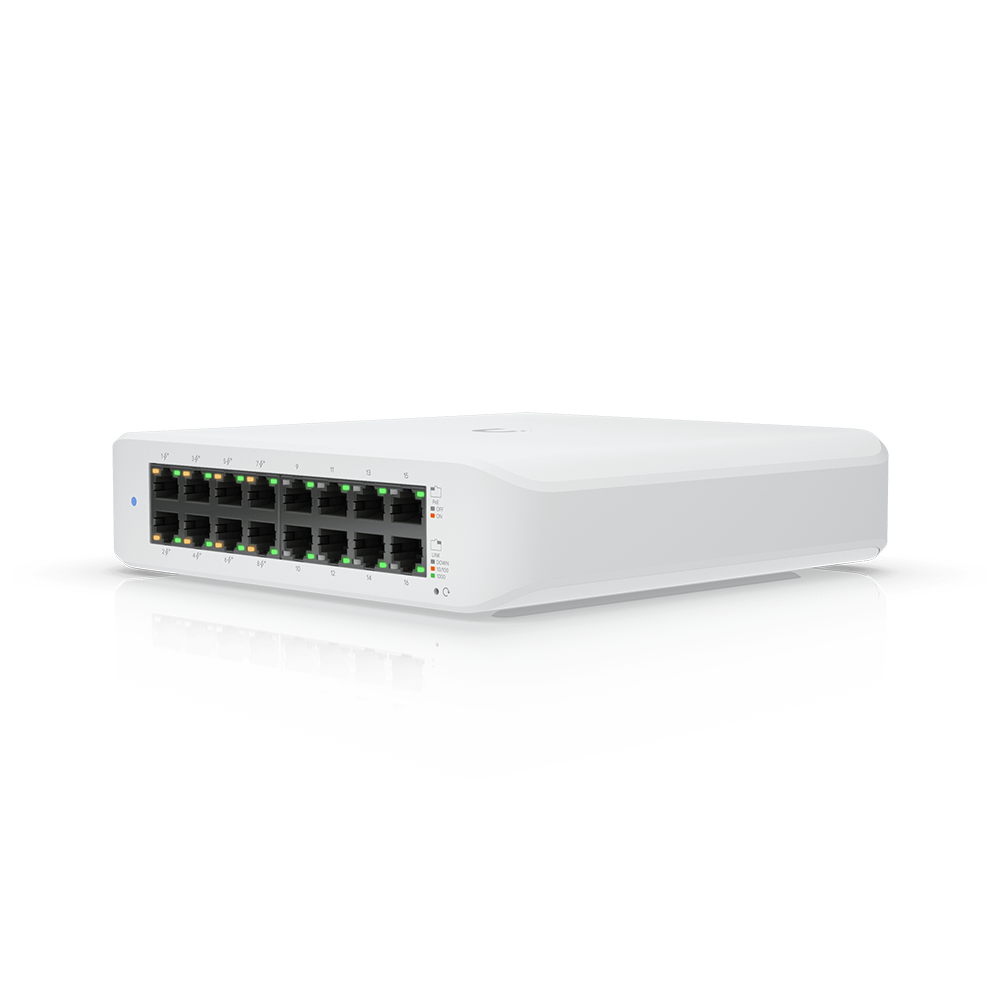

Lite 16 PoE
USW-Lite-16-POE
215.44 €
Koha e arritjes së produktit : 23/10/2025 - 24/10/2025
16-port Gigabit switch with 8 PoE+ (45W total, 32W/port).
32 Gbps switching, 16 Gbps throughput, 24 Mpps rate.
Supports 1,000 VLANs, STP, RSTP, LACP, IGMP, DHCP guard.
Power: 100–240V AC, 60W max.
Size: 192×185×44 mm, 1.2 kg.
Managed via UniFi Network v7.2.94+.
CE, FCC, IC, Anatel certified, NDAA compliant.
| Category | Specification |
|---|---|
| Overview | |
| Dimensions | 192 x 185 x 44 mm (7.6 x 7.3 x 1.7″) |
| Form Factor | Compact desktop, wall mountable |
| Port Layout | 1 GbE RJ45, 16 total (8 PoE+ ports) — (1G/100M/10M) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | 45W |
| Performance | |
| Switching Capacity | 32 Gbps |
| Total Non-Blocking Throughput | 16 Gbps |
| Forwarding Rate | 24 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 8,000 |
| Packet Buffer Size | 0.5 MB |
| Access Lists (ACLs) | IPv4: 128, MAC: 128 |
| Layer 2 Features | |
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| IGMP Configuration (Querier, Fast Leave, Router Port) | ✓ |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| MAC-Based ACLs & Device Isolation | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| MAC Address Blocking | ✓ |
| IP-Based ACLs & Network Isolation | ✓ |
| MAC-Based Port Restriction | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Hardware | |
| PoE Ports | 8 × PoE+ |
| Max. PoE Wattage per Port (PSE) | 32W |
| Max. Power Consumption | 15W (Excl. PoE), 60W (Incl. PoE) |
| Power Method | Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | AC/DC internal, 60W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet |
| Heat Dissipation (Excl. PoE) | 51.18 BTU/hr |
| Weight | 1.2 kg (2.6 lb) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Supported Rack Depth | 400–1200 mm (15.7–47.2″) |
| Ambient Operating Temperature | -15 to 40°C (5 to 104°F) |
| Ambient Operating Humidity | 10–90% non-condensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Software | |
| Application Requirements | UniFi Network (Version 7.2.94 or later) |
