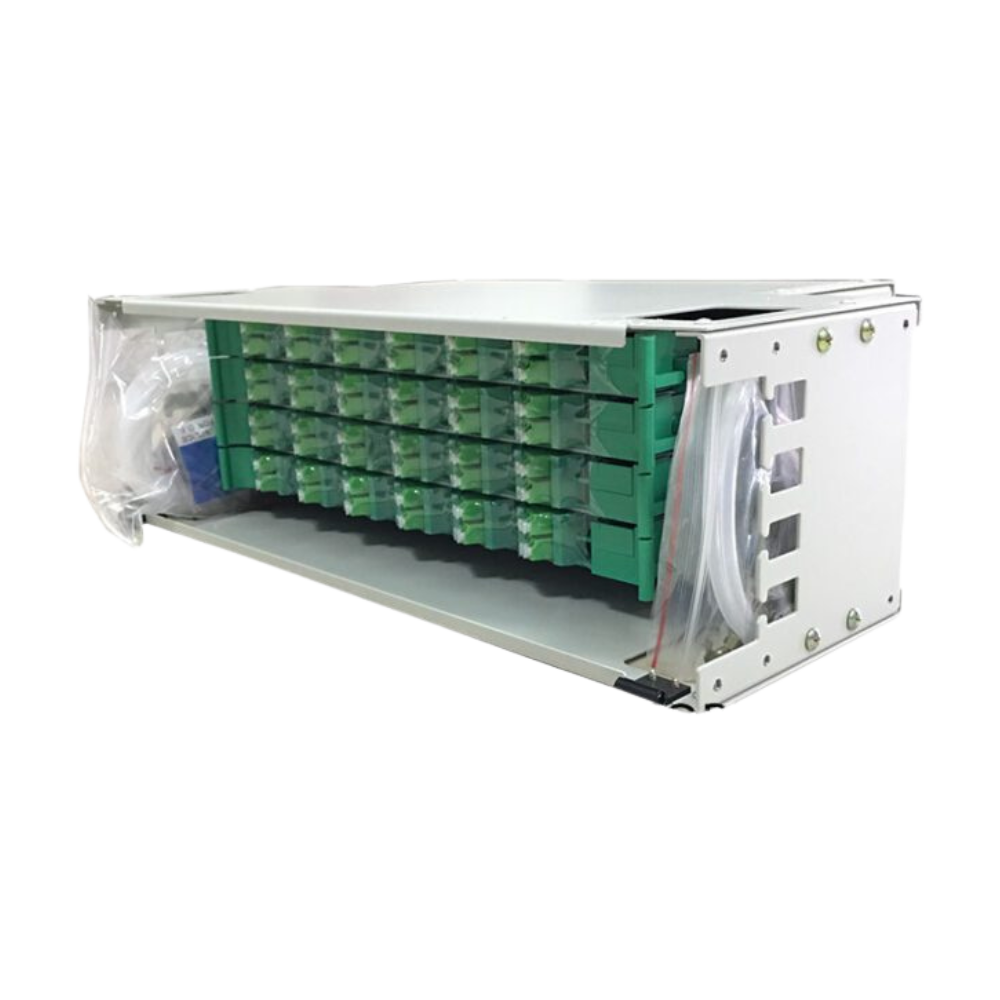

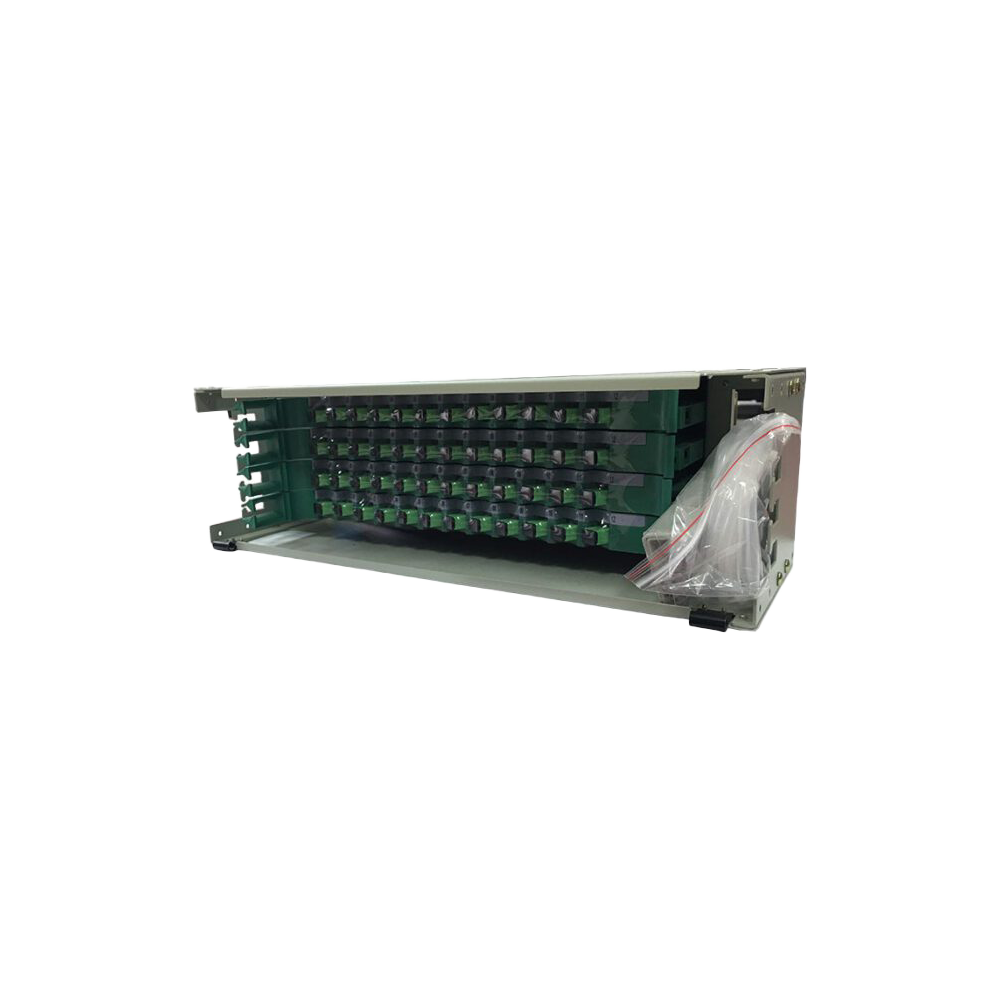

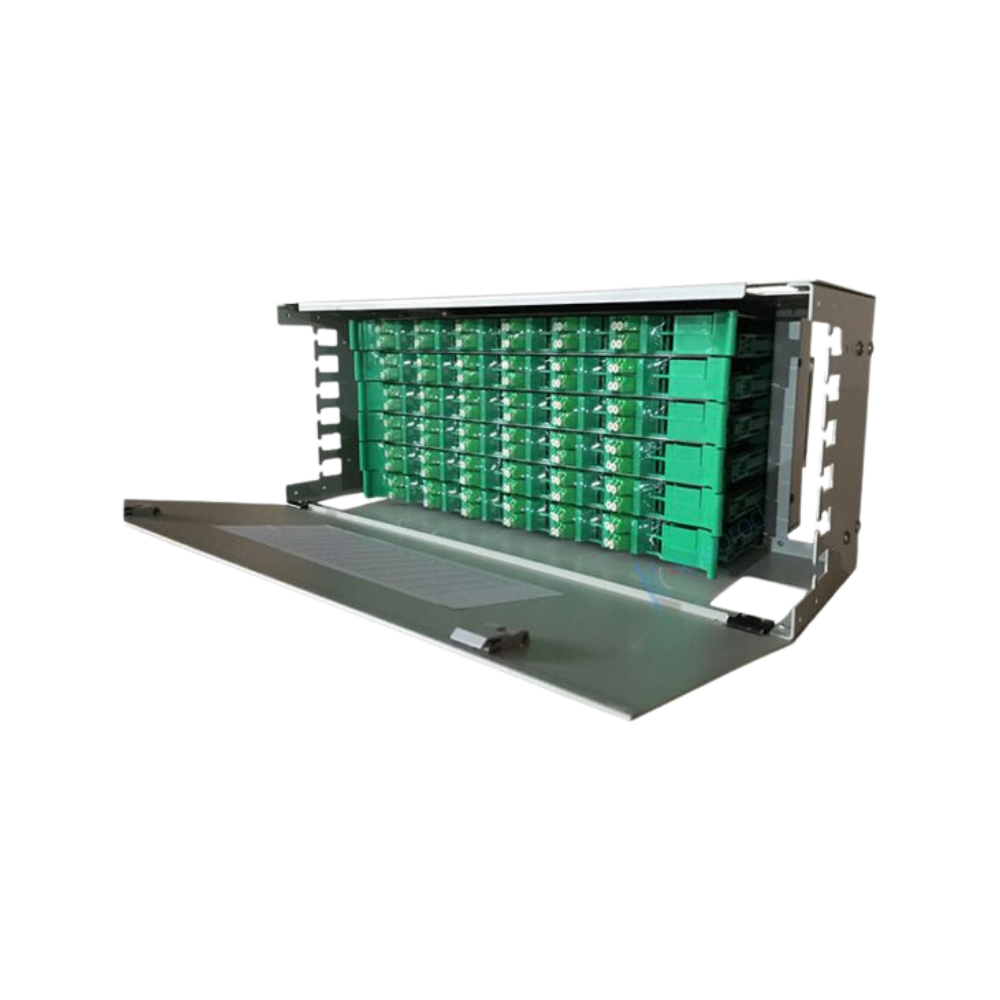

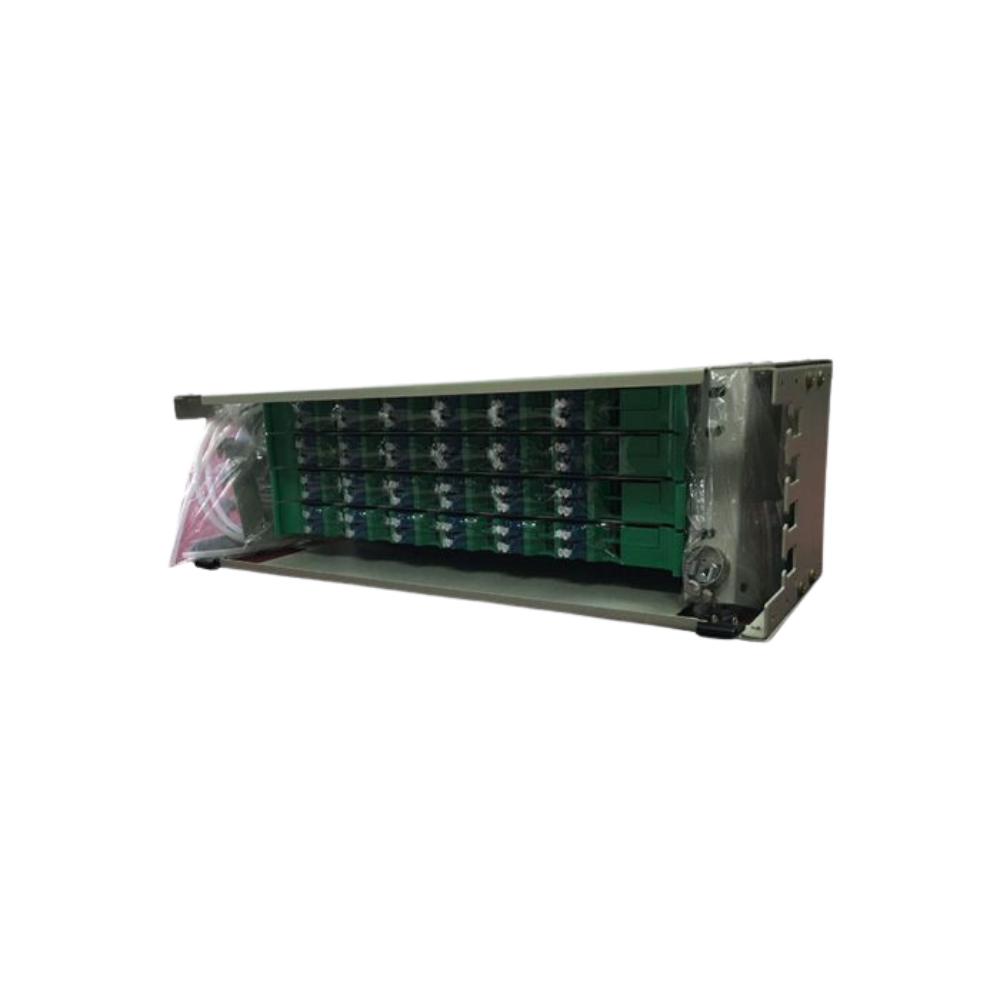

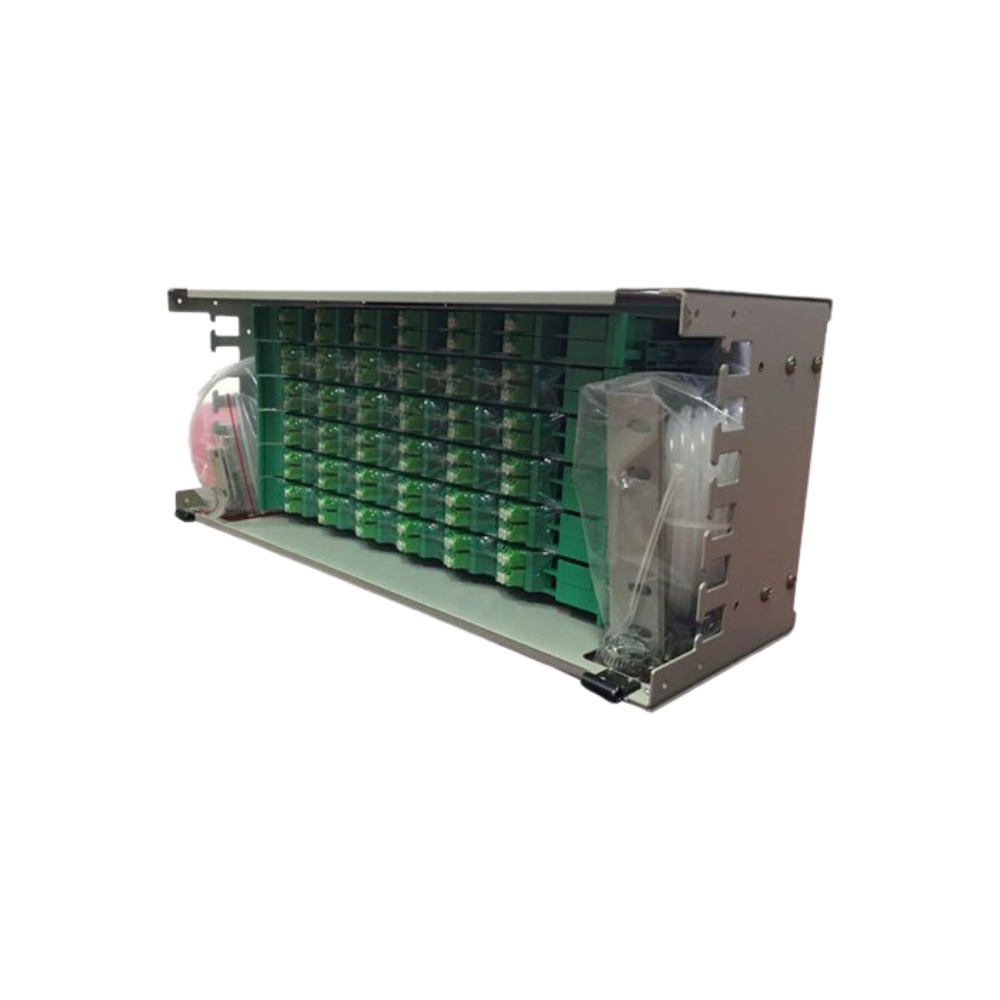

19’’ standard ODF
Our ODF is made by high quality SPCC cold rolled steel.
It was designed with reasonable structure which is easier to be installed and operated.
Each ODF is full loaded with sleeves, adapters and
pigtails(LC/UPC; SM; ).
The insertion loss of the adapters and
pigtails is less than 0.3db which is superior quality
Product name ODF
Item NO. WK-ODF-96LC/UPC (96-CORE)
Material SPCC Cold rolled steel
Thickness 1.1mm
Color Light gray
Available connector type LC/UPC; SM
Full loaded with Sleeves; Adapters(SM; ); pigtails(OD: 0.9mm; 1m)
(insertion loss<0.3db)
Storage temperature -40°C – +70°C
Atmosphere pressure 70Kpa – 106Kpa
Relative humidity ≤90% (when the temperature is below 30°C)
Voltage-resistance strength: Under the effect of 3000V, 1min, non-puncture, and no arc-over
Insulating resistance ≥1000 MΩ 500V
