Fiber Splicer

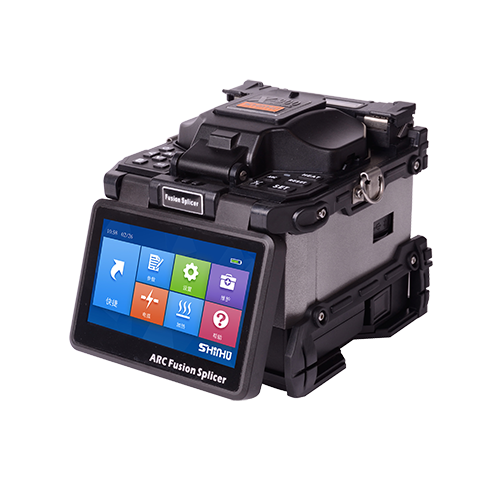

Optical fiber fusion splicer SHINHO X-900
- 6 motors accurate core alignment
- Identifying fiber types automatically
- Upgraded CPU with 30% power saving
- 6 seconds typical splicing and 16 seconds heating
- Automatic & real-time ARC & fiber position calibration
- Industrial design, anti-shock, anti-dust & waterproof
- Real-time heating temperature monitoring
- Suitable for bare fiber, patch cords, drop cable etc.
2,750.00 €
X-900 Fiber Fusion Splicer is the latest model with the latest core to core alignment technology, it has 6 motors and uses high quality lens, chips, motors and other components, which promise its stable and precise performance. It could identify the fiber types automatically, and could calibrate the ARC value and fiber position automatically. Its colorful 5” LCD display screen could show the fiber images very clearly. It is a good choice for your fiber optical network projects.
| Alignment method | 6 motors core to core alignment |
| Applicable fiber | SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655), BIF(G.657) |
| Cladding diameter | 80 -150μm |
| Coating diameter | 160–1000μm |
| Cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm |
| Typical splice loss | SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB |
| Return loss | ＞60dB |
| Splicing program | 40 groups |
| Operation mode | Manual/ Automatic |
| Auto- heating | Available |
| Typical splice time | 6 seconds |
| Typical heating time | 18 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing display | Dual high sensitivity camera, 5 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records |
| Loss evaluation | Available |
| Tension test | 1.8～2.25N |
| Interface | GUI menu interface, easy for operation |
| Battery capacity | 5200mAh Li-battery, 300 cycles splicing and heating |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 4000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating condition | Humidity:0-95%,Temperature:-10℃～+50℃;Wind:max15m/s |
| Dimension/Weight | 156mm (L)×141mm (W)×156mm (H) /2.45kg (including battery) |
