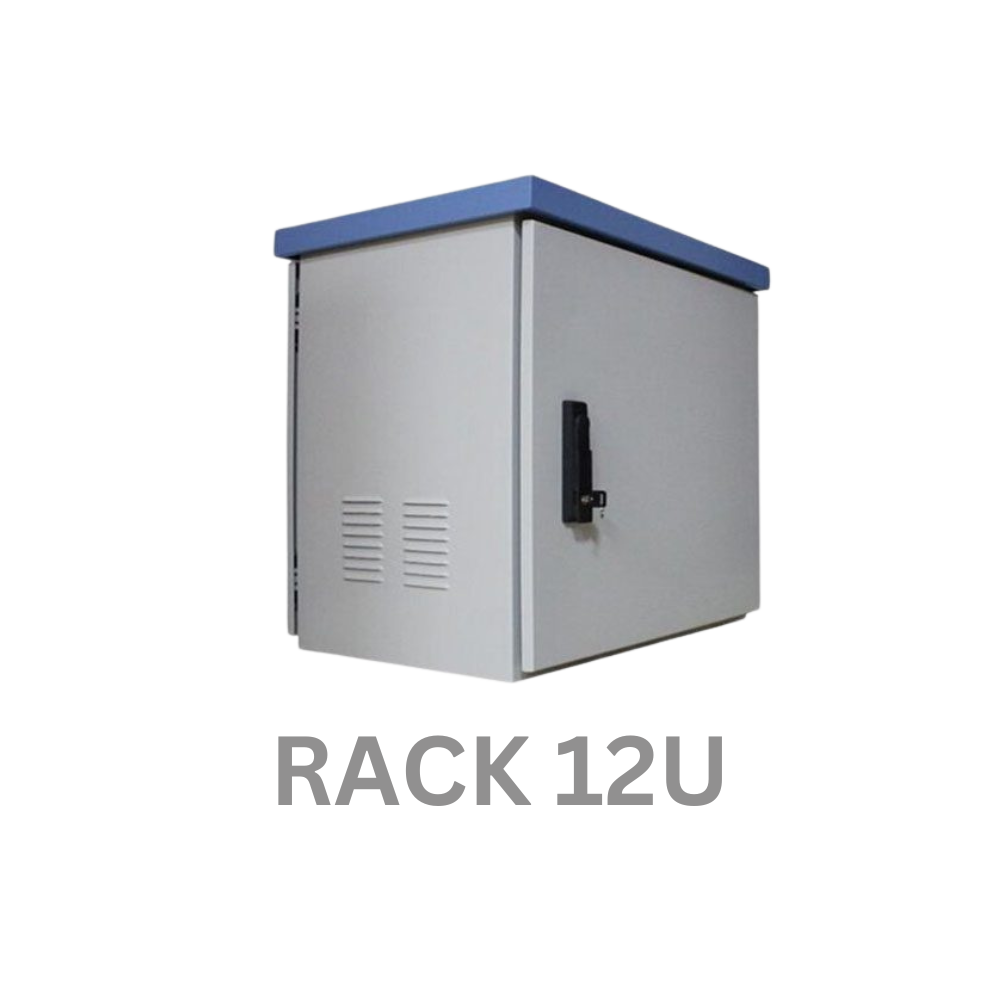

Outdoor rack IP55 12U

220.00

IP55 19′′ Outdoor Cabinets for Telecommunication

Description

Product Description

Product Description
IP55 19′′ Outdoor Cabinets for Telecommunication

Description

  • 19 inch street cabinet,outdoor application
  • Reliable 19″ international structure, Double wall  type
  • Outdoor floor standing or fixed on poles
  • Front  single solid metal door with handle lock
  • Enhance door hinges with 130 degrees operation angle
  • Rear single solid metal panel
  • Top with 2/8 fans for airflow&cooling, fan size: 120*120*38 mm
  • Several lockable wiring holes on top/bottom, size of the large hole at the bottom adjustable
  • Varies specification upon customers’ special requirements

Standard and Material:
Comply with ANSI/EIA,RS-310-D;IEC297 2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:
Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Material:
SPCC cold rolled steel or Zink-plated panel or stainless steel
Thickness:
Mounting profile:2.0mm,others: 1.50mm
IP degree:
IP-55
Color:Body color:
RAL5012(Top cover and base);RAL7035(The others)



Outdoor rack IP55 12U
