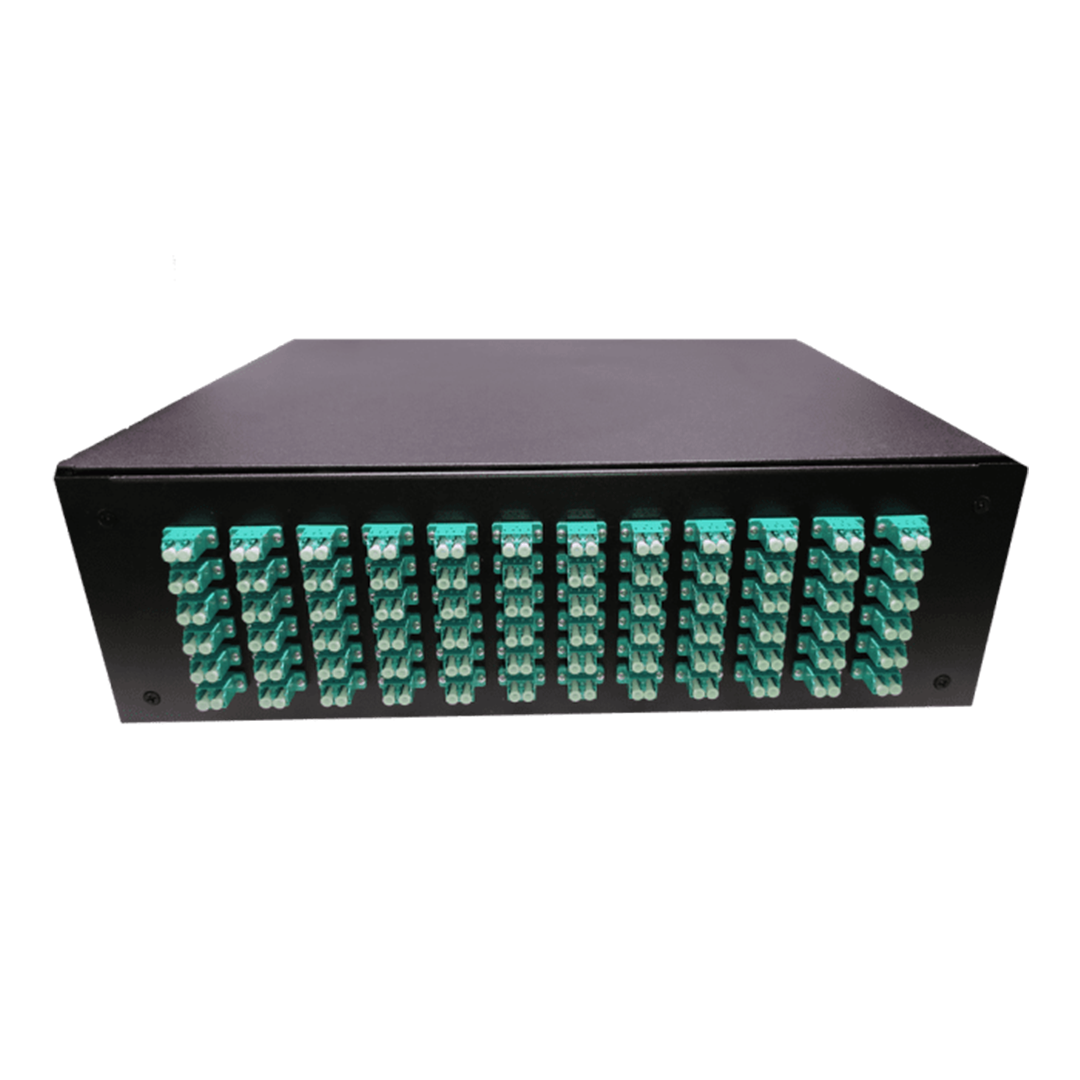

Patch Panel 48 Way MM ST 24 Ports Duplex
Fiber optic patch panel is an integrated unit for fiber management, can offer wall mounted fiber optic patch panel and
rack mounted fiber optic patch panels, these equipment function is to fix and manage the fiber optic cables inside the
box as well as provide protection
Features:
· Standard size, 45 oblique angle well protect of pigtail. · Slide out drawer for easy cable management · ST, adapter patch panel for option
· Front access panel design for easy operation
· Suitable for 19’’ or 21’’standard optic distribution cabinets
· 2pcs splice trays (each 12fibers)
· Max. capacity 48 fibers
· 4 fiber cable entry ports at rear side
· black color
Specification
— Operating Temperature:-25°C~+45°C
— Relative Hunmidity:≤95%(40°C)
— Atmosphere Pressure:70KPa~106KPa
— Insulated Resistance:≥2x104MΩ/500v(DC)
— Dielectric Strength:≥15KV(DC)/1min,no spark-over and no flying arc
— Fiber Bend Radius:≥40mm
Dimension – 485*270*45mm
Material – Q235 Cold rolled steel sheet
Capacity core – 48
Color of ODF -Black
Optical connector – ST/UPC
Optical fiber type – Multi-mode 50/125 OM3
Pigtail Length – 1.0m
Adapter – 24 DX ST Port
Flammability – GB4208—1993.YD/T925-1997
ROHS – Compliant
