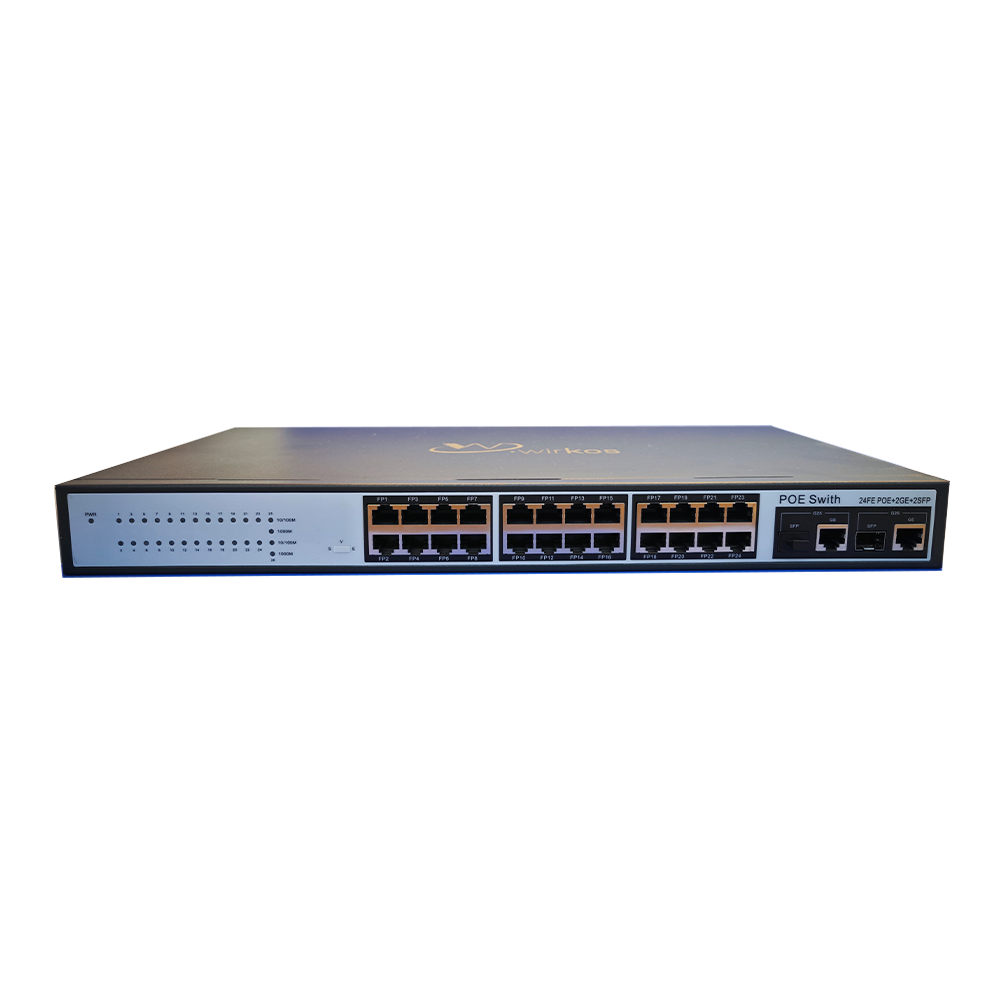

POE Switch/24+2+2up link Gigabit port
WKPOE-UG-2422
- Supply power to wireless AP and IP Camera through CAT 5 cable
- 24 Port: 10/100M auto sensing RJ45
2 Port: 10/100/1000M auto sensing RJ45 port. 2 Port: 10/100/1000M auto sensing SFP port.
- Support port auto-flip (Auto MDI/ MDIX)
- Total PoE Power: 400W (Port 1 – 24 )
- Max PoE power output is
- Support Vlan
- Switch Mode: Port 1-24: 10/100M auto-sensing. @100 meters; Port 25-26: 1000M @ 100 meters
- Store and forward
Fanless design, natural cooling. Mini size
128.00 €
- HD monitor transmission and power supply
- Wireless AP layout transmission and power supply
- Network telephone transmission , intelligent house and home system
- Intelligent transportation supervisory system(ITS)
- High-speed Way supervisory/Tele-Communication System
- Security protection system, TV medical treatment
- Long-distance Muti-media Schooling, Campus monitoring
- Long-distance broadcast television transmission system
- High-building Security Protection, Military Tele-Com projects
Product Model: WKPOE-UG-2422
Product Description: 24x 10/100M copper RJ45 Ports 2x 10/100/1000M copper RJ45 Ports 2x1000M SFP Ports. standard PoE Switch. Port 1-24 support PoE function with port isolation function.
IEEE802.3af/at, max PoE power output is 30W. Total power is 400W. supports Vlan. Built-in power supply.
Note: PoE Power Supply：1,2( )/3,6(-) (Default) ; 45( ),78(-) (Option)
|
Product Name |
28-Port Standard PoE Switch |
|
Model |
WKPOE-UG-2422 |
|
Connector Type |
24x 10/100M copper RJ45 Ports 2x 10/100/1000M copper RJ45 Ports 2x1000M SFP Ports
(All ports support MDI/MDIX auto sensing) Port 1-24: PoE port, max PoE output for each port is 30W. |
|
Network Media |
100BASE-T: Cat5 UTP(≤100 meters); 1000BASE-TX: Cat5 or later UTP(≤100 meters); |
|
Bandwidth |
52Gbps |
| Address Database Size |
2K |
|
Network Latency |
maximum delay less than 20 microseconds |
|
Forwarding Mode |
Store-And-Forward |
| Network Protocols |
IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af/at |
|
Power Supply |
Input: AC100-240V, 50-60Hz |
|
PoE Ports |
24*PoE Ports |
|
PoE Port Power |
Max 30W |
|
PoE Standard |
IEEE802.3af/at |
| Working Environment | Operating Temperature: -20 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Humidity: 10% ~ 90%, non-condensing; Storage Humidity: 10% ~ 95%, non-condensing; Working Altitude:
3000 m (10,000 ft); Storage Altitude: 3,000 m (10,000 ft) |
|
Certification |
CE Mark ,commercial CE/LVD EN60950 |
|
Radiation |
CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 （CISPR 22）， Class B |
| Transmission Distance |
Max 150 meters |
| Power Supply Type |
1,2( )/3,6(-) (Default) ; 45( ),78(-) (Option) |
