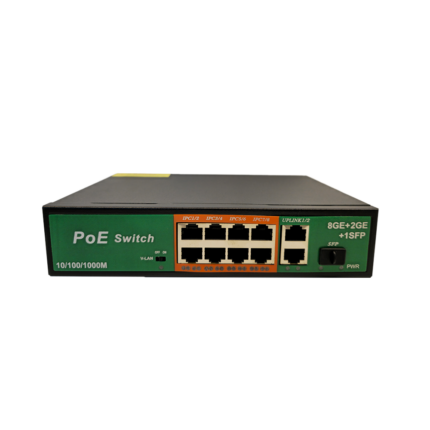

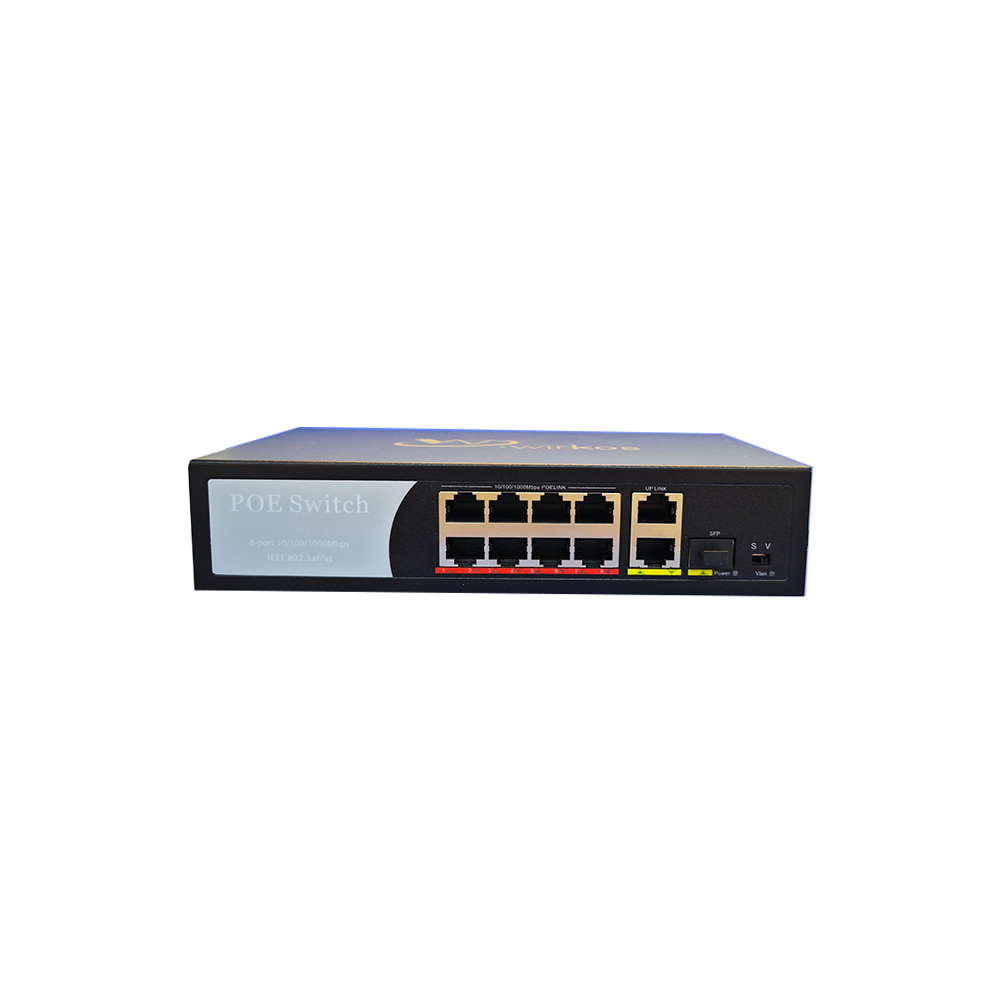

POE Switch/8+2+1/Full Gigabit


WKPOE-FG-821

  • Supply power to wireless AP and IP Camera through CAT 5 cable
  • 8 Port: 10/100M/1000M auto sensing RJ45 port. 2 Port: 10/100/1000M auto sensing RJ45

1 Port: 10/100/1000M auto sensing SFP port.

  • Support port auto-flip (Auto MDI/ MDIX)
  • Anti-thunder function for uplink port (Port 9-10 anti-thunder function reaches level 2)
  • Total PoE Power: 120W (Port 1 – 8 )
  • Max PoE power output is
  • Support Vlan
  • Switch Mode: Port 1-10: 10/100M/1000M auto-sensing. @100 meters; Port 9-10: 1000M @ 100 meters
  • Store and forward
  • Fanless design, natural Mini size.



32.30

  • HD monitor transmission and power supply
  • Wireless AP layout transmission and power supply
  • Network telephone transmission , intelligent house and home system
  • Intelligent transportation supervisory system(ITS)
  • High-speed Way supervisory/Tele-Communication System
  • Security protection system, TV medical treatment
  • Long-distance Muti-media Schooling, Campus monitoring
  • Long-distance broadcast television transmission system
  • High-building Security Protection, Military Tele-Com projects



Product Model: WKPOE-FG-821

Product Description: 8x 10/100M/1000M copper RJ45 Ports 2x 10/100/1000M copper RJ45 Ports 1x1000M SFP Ports. standard PoE Switch. Port 1-8 support PoE function with port isolation function. IEEE802.3af/at, max PoE power output is 30W. Total power is 120W. supports Vlan. Built-in power supply.



Note: PoE Power Supply:1,2( )/3,6(-) (Default) ; 45( ),78(-) (Option)





SKU: 8249 Category:


Product Name

11-Port Standard PoE Switch


Model

WKPOE-FG-821
Connector Type 8x 10/100M/1000M copper RJ45 Ports 2x 10/100/1000M copper RJ45 Ports 1x1000M SFP Ports (All ports support MDI/MDIX auto sensing) Port 1-8: PoE port, max PoE output for each

port is 30W.



Network Media

100BASE-T: Cat5 UTP(≤100 meters); 1000BASE-TX: Cat5 or later UTP(≤100 meters);


Bandwidth

22Gbps
Address Database Size

2K

Network Latency

maximum delay less than 20 microseconds

Forwarding Mode

Store-And-Forward

Network Protocols

IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af/at



Power Supply

Input: AC100-240V, 50-60Hz


PoE Ports

8*PoE Ports
PoE Port Power

Max 30W



PoE Standard

IEEE802.3af/at
Working Environment Operating Temperature: -20 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Humidity: 10% ~ 90%, non-condensing; Storage Humidity: 10% ~ 95%, non-condensing; Working Altitude: 3000

m (10,000 ft); Storage Altitude: 3,000 m (10,000 ft)



Certification

CE Mark ,commercial CE/LVD EN60950


Radiation

CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B
Transmission Distance

Max 150 meters

Power Supply Type

1,2( )/3,6(-) (Default) ; 45( ),78(-) (Option)
