Wall mounted cabinet

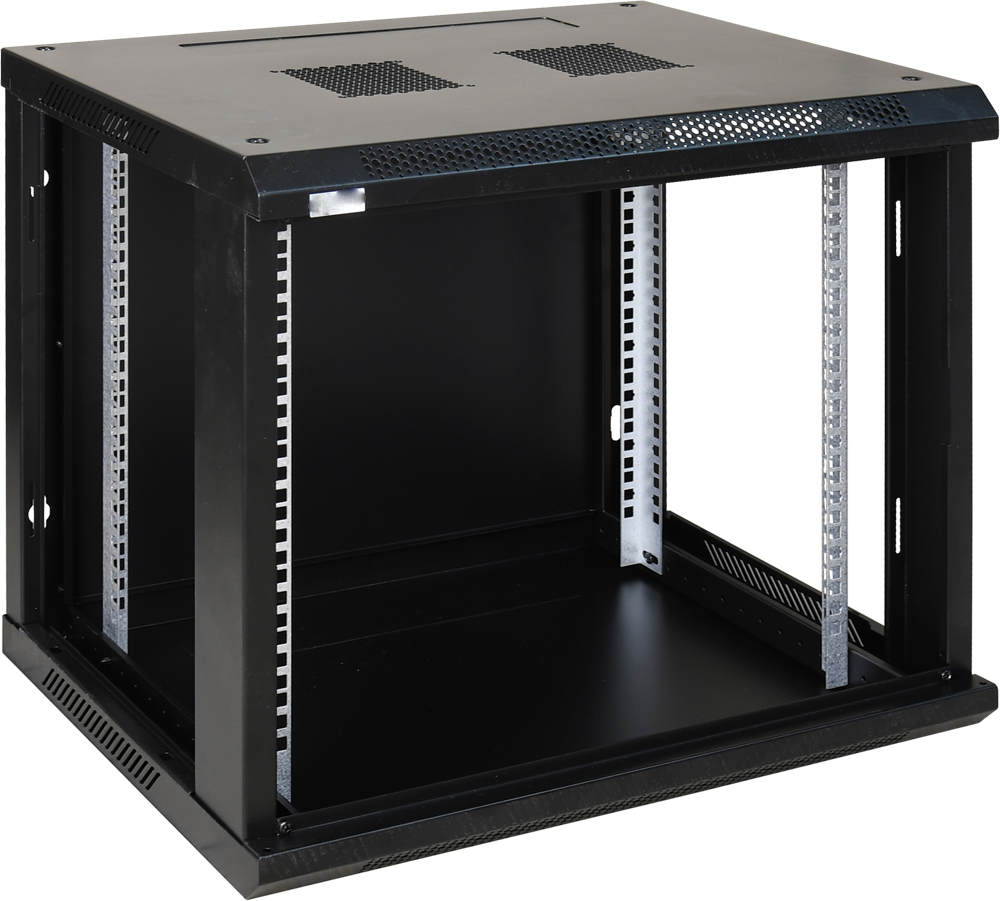

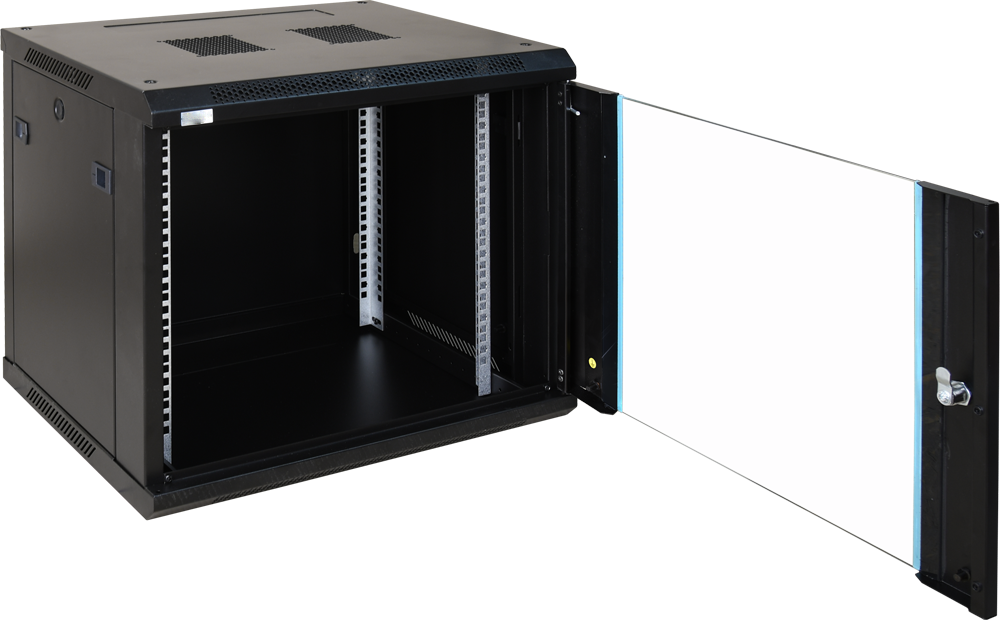

RACK cabinet 9U 600x600mm
9U RACK cabinet, wall mounted, ready-to-assemble 600×600
Instruksione për Montim (PDF)
| Destination | RACK 19″ cabinet enables integrating CCTV, AC, I&HAS, RTV, LAN, or other systems in small companies or households. It is intended for devices manufactured in enclosures of 19″ standard. Due to RACK cabinets, devices are aesthetically mounted and protected against mechanical damage. |
| Mounting dimensions | 19″ x 9U x 447mm |
| Dimensions | 600 x 502 x 600 [ /-2 mm] |
| Type Cabinets | wall mounted ready-to-assemble |
| Static load | 70kg |
| Closing | front door – lock (RAZ25, same code) side panel – Click (lock assembly possible – RAZB16) |
| Material | cold-rolled steel SPCC, 1.2mm, 1.5mm, RAL9004 (black), metallic |
| IP protection class | IP 20 |
