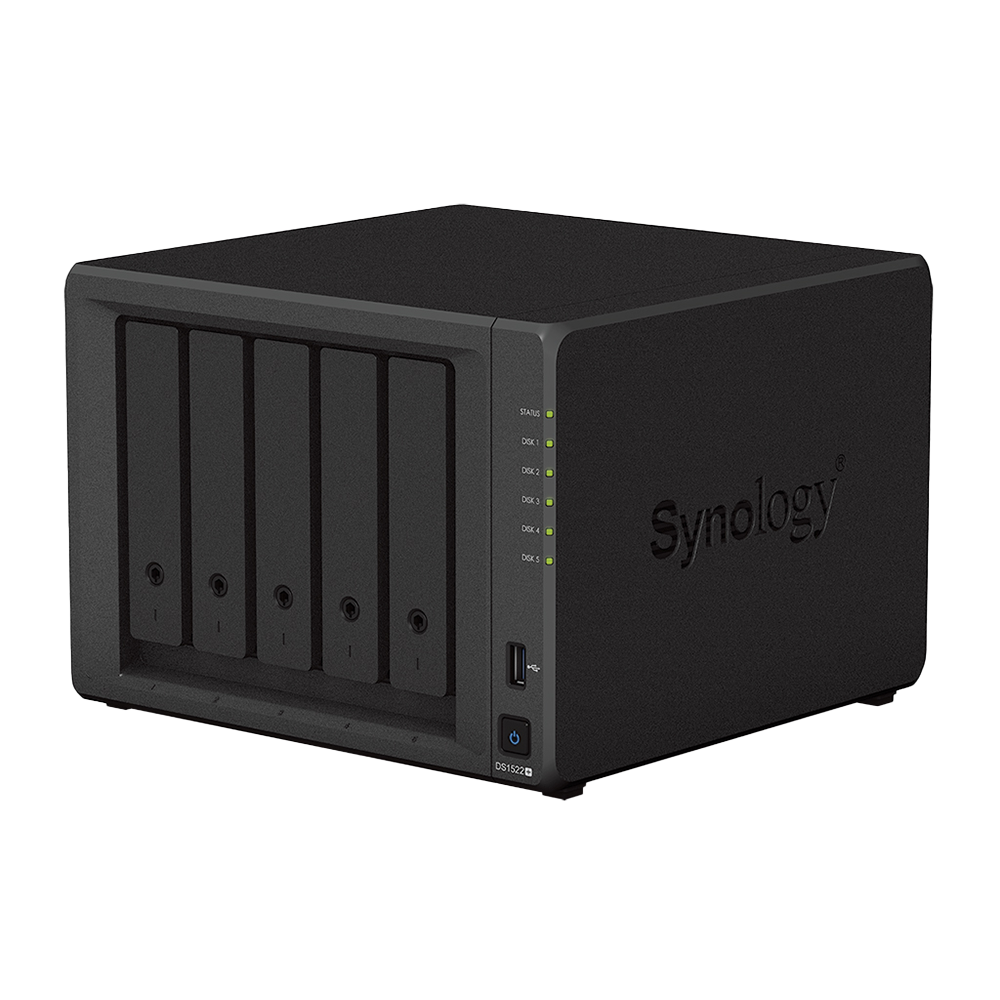

Synology DiskStation DS1522+ Tower 5-Bay 3.5" SATA HDD/SSD

Synology DiskStation DS1522+ Tower 5-Bay 3.5″ SATA HDD/SSD

926.00 €

Koha e arritjes së produktit : 22/02/2025 - 24/02/2025

Flexible data management for homes and small business

The 5-bay Synology DiskStation DS1522+ is easy to scale and expand as your needs change, with optional support for up to 15 drives, 10GbE networking, and NVMe SSD caching. Powered by Synology DiskStation Manager (DSM), it offers a flexible all-in-one solution for data sharing, synchronization, backup, and surveillance.

Download Datasheet

Throughput

Over 736/796 MB/s sequential read/write1

Memory

8 GB DDR4 ECC (max. 32 GB)

Connectivity

Four built-in 1GbE ports with easy 10GbE option2

Scalability

Up to 15 drive bays with 2 DX517 expansion units2

SKU: 98903 Category:
Hardware Specifications
CPU
 CPU Model AMD Ryzen R1600
CPU Quantity 1
CPU Core 2
CPU Architecture 64-bit
CPU Frequency 2.6 (base) / 3.1 (turbo) GHz
Hardware Encryption Engine
Memory
 System Memory 8 GB DDR4 ECC SODIMM
Memory Module Pre-installed 8 GB (8 GB x 1)
Total Memory Slots 2
Maximum Memory Capacity 32 GB (16 GB x 2)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage
 Drive Bays 5
Maximum Drive Bays with Expansion Unit 15 (DX517 x 2)
M.2 Drive Slots 2 (NVMe)
Compatible Drive Type* (See all supported drives)
  • 3.5″ SATA HDD
  • 2.5″ SATA SSD
  • M.2 2280 NVMe SSD
Hot Swappable Drive*
Notes
  • The hot swappable drive feature is not supported by M.2 SSD slots.
  • “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
 RJ-45 1GbE LAN Port 4
USB 3.2 Gen 1 Port* 2
Expansion Port 2
Expansion Port Type eSATA
Notes
  • This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
  • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
 PCIe Expansion 1 x Gen3 x2 network upgrade slot
Appearance
 Size (Height x Width x Depth) 166 mm x 230 mm x 223 mm
Weight 2.7 kg
Others
 System Fan 92 mm x 92 mm x 2 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Brightness Adjustable Front LED Indicators
Power Recovery
Noise Level* 22.90 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 120 watts
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 52.06 watts (Access)
16.71 watts (HDD Hibernation)
British Thermal Unit 177.64 BTU/hr (Access)
57.02 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
 Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • BIS
Warranty
 3-year hardware warranty, extendable to 5 years with Extended Warranty Plus
Notes
  • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
  • Extended Warranty Plus is only available in Europe and North America. Refer to the Extended Warranty Plus website for details on supported countries/regions. (Learn more)
Environment
 RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1
