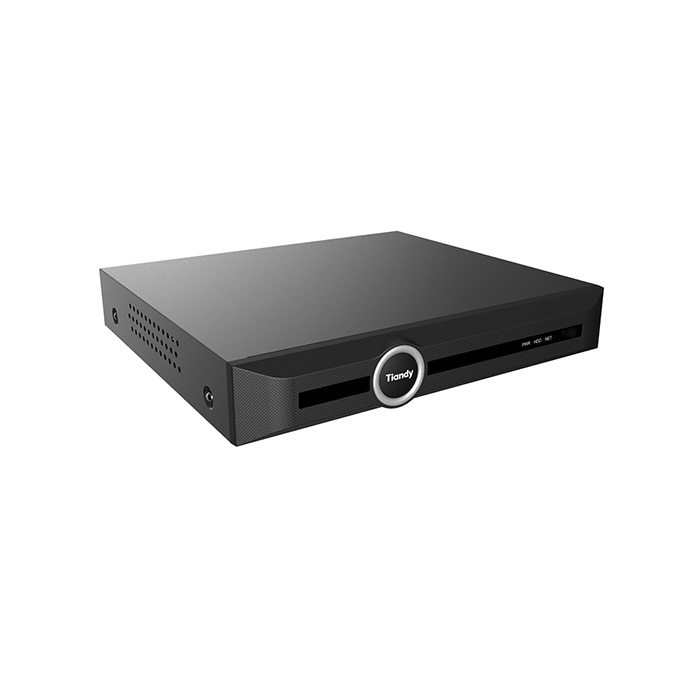

H.265 1HDD 5ch NVR TC-3105 Spec: I/B/K/V3.0
KEY FEATURES
HD Input
• S+265/H.265/H.264 video formats
• Connectable to the third-party network cameras
• Up to 5-channel input
• Support live view, storage, and playback of the
connected camera at up to 8MP resolution
HD Output
• HDMI and VGA simultaneous output
• HDMI Video output at up to 4K (3840×2160)
resolution
HD Storage
• 1 SATA interface, up to 10TB for 1 HDD
• S+265 compression effectively reduces the storage
space and costs by up to 75%
HD Transmission
• 1×RJ45 self-adaptive 10/100 Mbps network interface
Various Applications
• Centralized management of IP cameras, including
configuration, information import/export, real-time
information display, upgrade, etc.
• Connectable to smart IP cameras from Tiandy and the
recording, playing back, and backing up of VCA alarms
can be realized
• VCA detection alarm is supported
• Smart search for the selected area in the video and
smart playback to improve the playback efficiency
• Web6 supports plug-in free browsing and can preview
videos on all browsers
• Support cloud upgrade
SPECIFICATIONS
Input
Video Input 5-ch
Max Resolution 8MP
Two-way Audio Input 1-ch, 3.5mm
Bandwidth Income 80Mbps; Outgoing 80Mbps
Output
HDMI/VGA Output
Screen Split 1/2/3/4/5/6
Audio Output 1 RCA
Decoding
Decoding Format S+265/H.265/H.264
Recording Resolution 8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Capability 1 8MP, 1 6MP, 1 5MP, 2 4MP, 2 3MP, 4 1080P, 5 720P, 5 4CIF
Synchronous Playback 1 8MP, 1 6MP, 1 5MP, 2 4MP, 2 3MP, 4 1080P, 8 720P
Records Encryption Yes
Hard Disk
SATA 1 SATA interfaces for 1 HDDs
Capacity Up to 10TB for each HDD
eSATA Interface N/A
Array Type N/A
External Interface
Network Interface 1 RJ45 self-adaptive 10/100 Mbps network interface
USB Interface 2 USB 2.0
Serial Interface N/A
Alarm In/Out 4/1
Network
Protocol TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS
System Compatibility ONVIF (PROFILE S/T/G), SDK, P2P
General
Web Version Web6
Language Simple Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French,
Polish, Dutch, Hebraism, Arabic
Operating Conditions -10 ～55 , 10%~90% RH
Power Supply DC12V 3.33A
Consumption (without HDD) 10W (without HDD)
Chassis 1U
Dimensions
Weight (without HDD) 0.9Kg (1.98lb)
HDMI 1-ch, 3840×2160, 2560×1440, 1920×1080, 1280×720, 1024×768, 1440×900, 1280×800
VGA 1-ch, 1920×1080, 1280×720, 1024×768, 1440×900, 1280×800
45.1×255×231mm, (1.78×10.04×9.09 inch)
