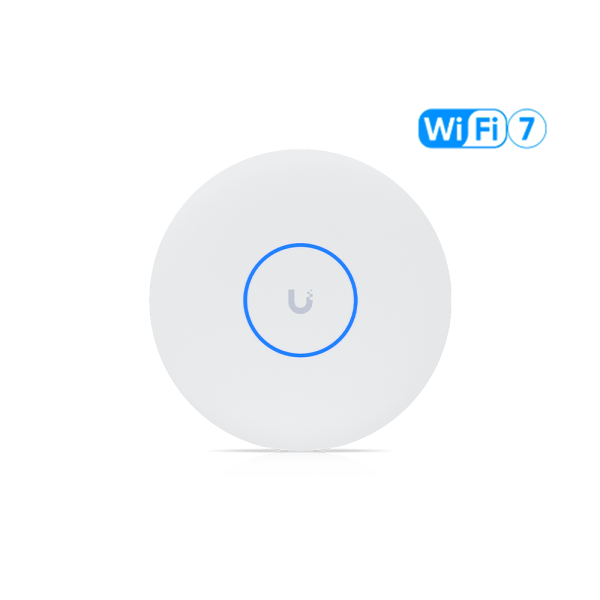

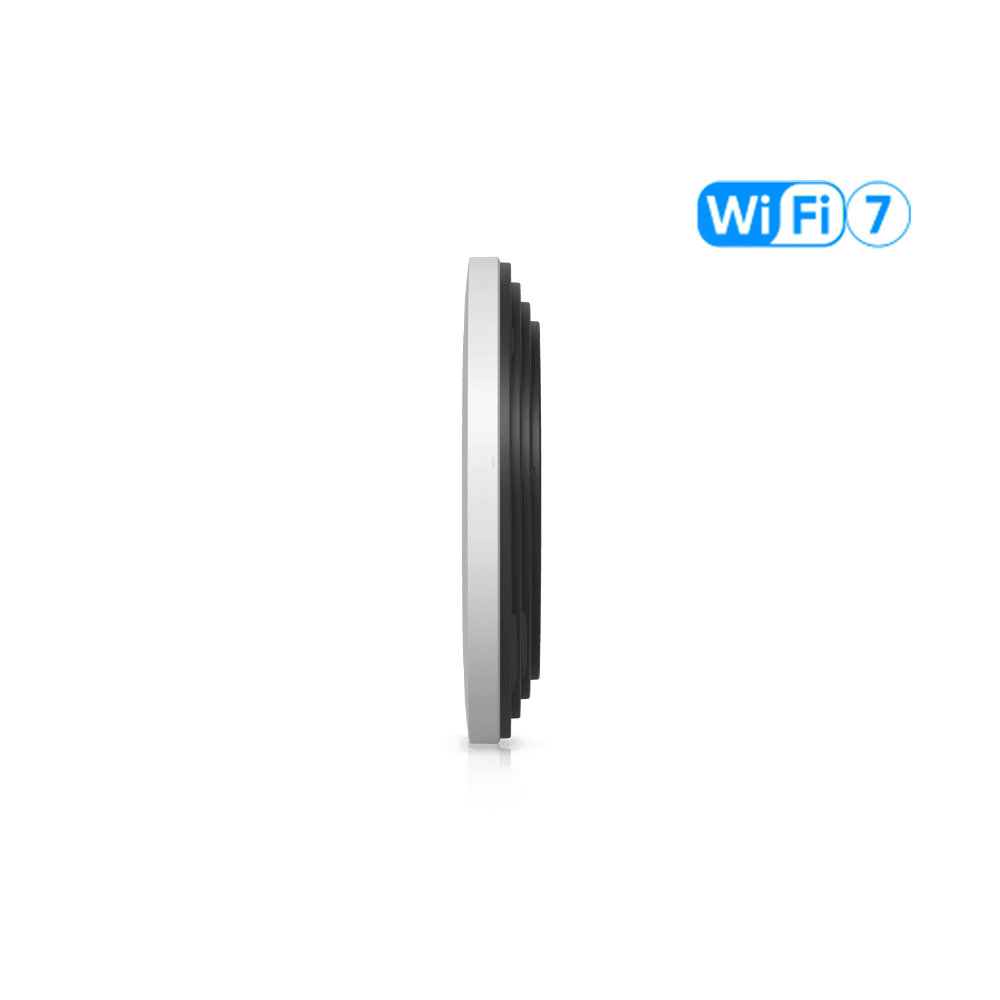

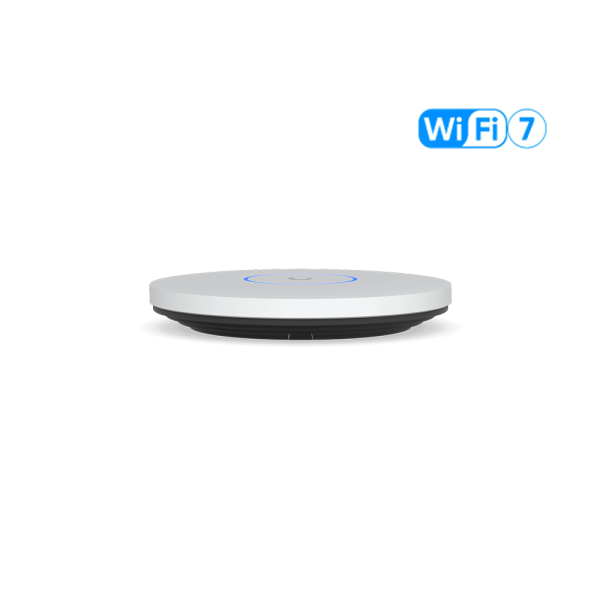

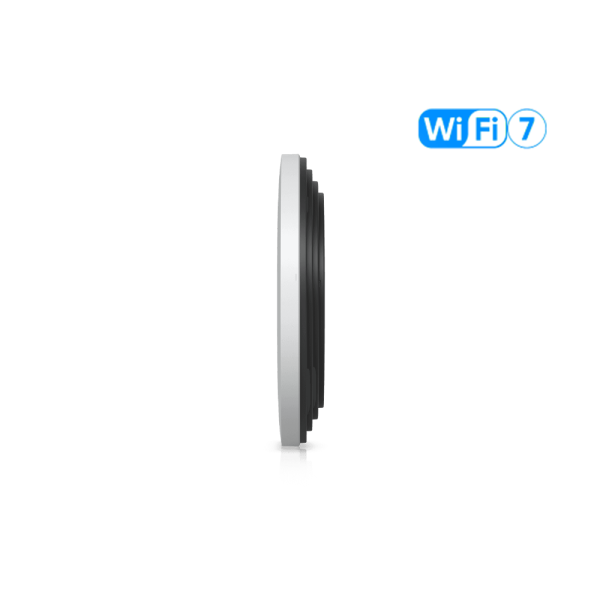

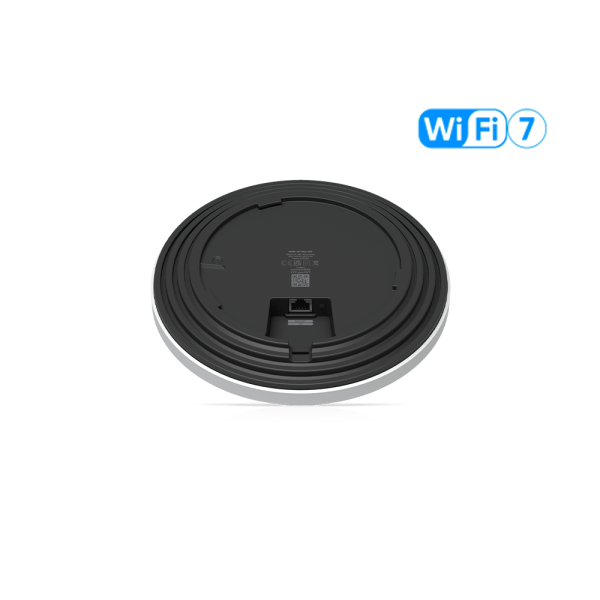

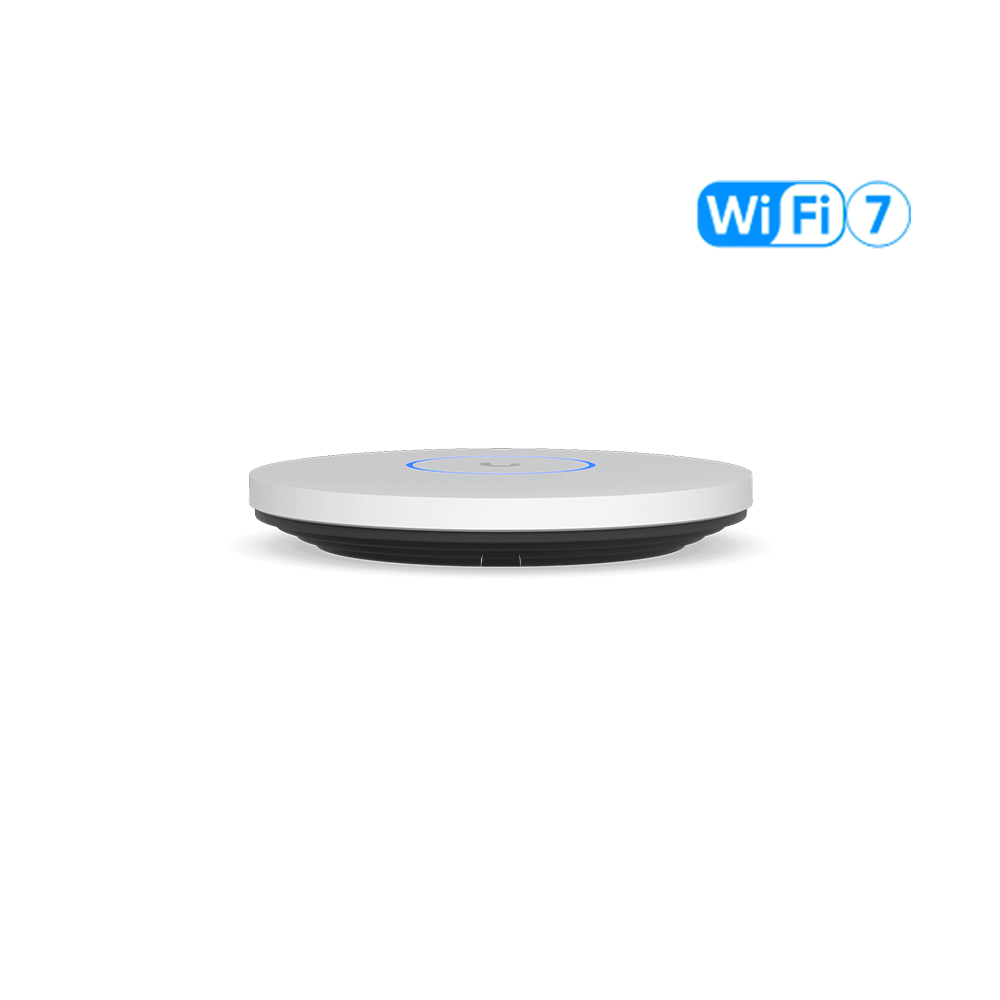

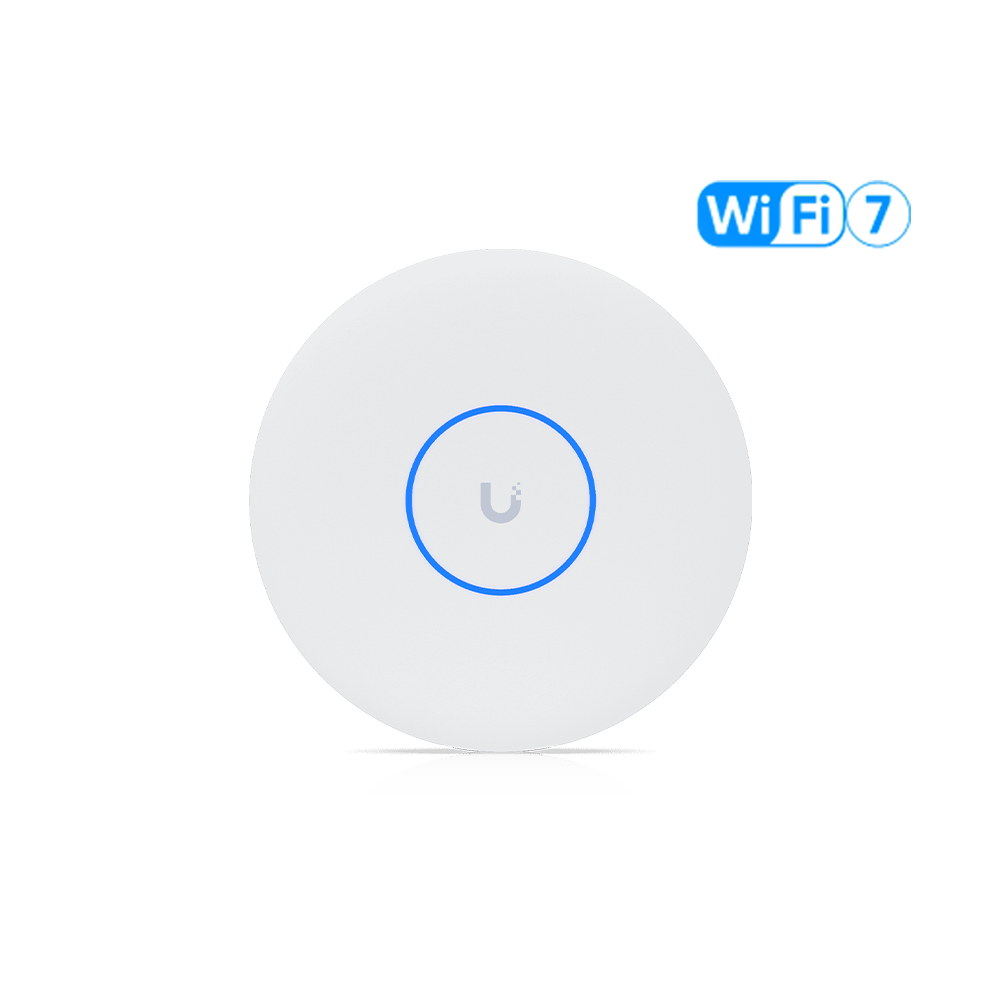

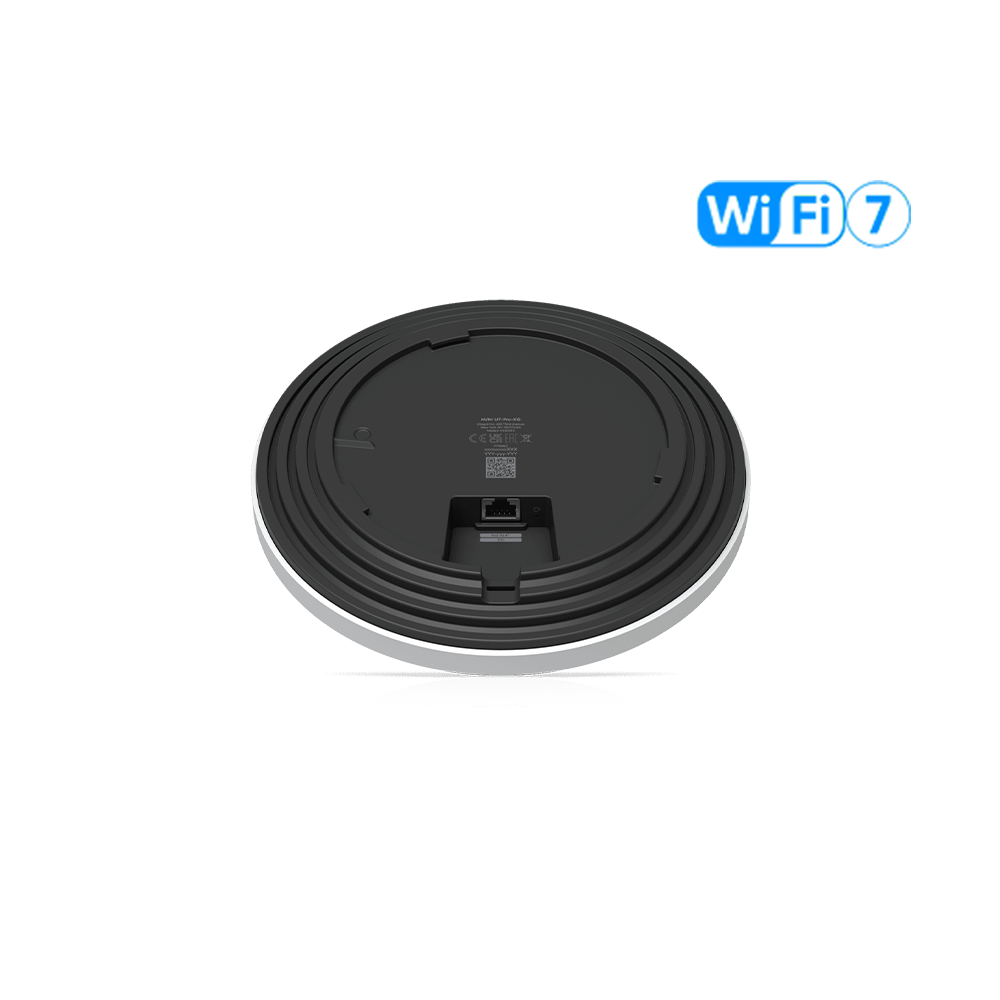

Name: U7 Pro XG
SKU: 99362
Availability: InStock

SKU: 99362 Category: Access Point - UniFi

Wi-Fi	Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Throughput	10,788 Mb/s Total 6 GHz: 5800 Mb/s 5 GHz: 4300 Mb/s 2.4 GHz: 688 Mb/s
Inputs/Outputs	1x RJ45 10 GbE PoE+ (30 W, 802.3at)

Wireless

Wi-Fi	Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Antenna Gain	6 dBi
Transmit Power	26 dBm
Supported Protocols	RADIUS TLS
Antenna Placement	Internal
Bluetooth	No

Performance

Throughput

10,788 Mb/s Total
6 GHz: 5800 Mb/s
5 GHz: 4300 Mb/s
2.4 GHz: 688 Mb/s

Interface

Inputs/Outputs

1x RJ45 10 GbE PoE+ (30 W, 802.3at)

Security

Management

Operation Modes	Access Point
Mobile App Compatible	Yes: Android & iOS

Hardware

Supported IEEE Standards

802.11a, 802.11ac, 802.11ax, 802.11b, 802.11be, 802.11g, 802.11n

Electrical

Input Power	42.5 to 57 VDC
Power Consumption	22 W
