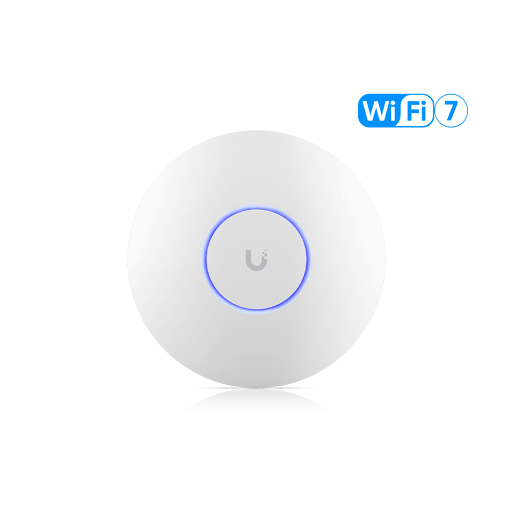

UniFi 7 LR ( Without POE )

UniFi 7 LR ( Without POE )

Compact, ceiling-mount WiFi 7 AP with 5 spatial streams and extended signal range.

192.05 €

Koha e arritjes së produktit : 06/06/2025 - 07/06/2025

The Ubiquiti UniFi 7 Long-Range Access Point is a high-performance Wi-Fi 7 access point designed for extended coverage and capacity. It features tri-band connectivity (2.4 GHz, 5 GHz, and 6 GHz) with 2×2 MU-MIMO on each band, supporting up to 300+ concurrent clients. The device offers a maximum throughput of 688 Mbps on 2.4 GHz, 4.3 Gbps on 5 GHz, and 5.8 Gbps on 6 GHz bands. With a 2.5 GbE uplink and PoE+ support, it’s suitable for high-density environments requiring robust wireless performance.





Ubiquiti UniFi 7 Long-Range Access Point Key Features:

  • Tri-Band Wi-Fi 7 (802.11be): Operates on 2.4 GHz, 5 GHz, and 6 GHz bands, supporting wider channels up to 320 MHz for increased throughput.
  • 2×2 MU-MIMO on Each Band: Facilitates simultaneous communication with multiple devices, enhancing network efficiency.
  • High Throughput Rates: 2.4 GHz: Up to 688 Mbps, 5 GHz: Up to 2.9 Gbps, 6 GHz: Up to 5.8 Gbps
  • 2.5 GbE Uplink Port: Provides a high-speed wired connection to support the increased wireless throughput.
  • PoE+ Support: Simplifies installation by delivering both data and power over a single Ethernet cable.
  • Coverage Area: Designed to cover up to 140 m² (1,500 ft²), making it suitable for large spaces.
  • Concurrent Client Capacity: Supports over 300 concurrent clients, ideal for high-density environments.
  • Advanced Wi-Fi Features: Includes OFDMA, 4096-QAM modulation, and enhanced MU-MIMO for improved performance and efficiency.
  • Seamless Integration: Compatible with UniFi Network Controller for centralized management and monitoring.

SKU: 99273 Category:

Overview

  • Dimensions:  Ø171.5 x 33 mm (Ø6.8 x 1.3″)
  • WiFi Standard:  WIFi 7
  • Spatial Streams:  5
  • Coverage Area:  160 m² (1,750 ft²)
  • Max. Client Count:  300+
  • Uplink:  2.5 GbE
  • Mounting Locations:  Ceiling, wall
  • Mounting Plate:  Plastic mounting plate (Included)
  • Power Method: PoE

Performance

  • MIMO 5 GHz 3 x 3 (DL/UL MU-MIMO)
      2.4 GHz 2 x 2 (DL/UL MU-MIMO)
  • Max. Data Rate
      5 GHz 4.3 Gbps (BW240)
      2.4 GHz 688 Mbps (BW40)
  • Antenna Gain 5 GHz 6 dBi
      2.4 GHz 4 dBi
  • Max. TX Power 5 GHz 27 dBm 2.4 GHz 26 dBm
  • Supported Data Rates 802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2/3, EHT 20/40/80/160) 802.11ax (WiFi 6) 7.3 Mbps to 3.6 Gbps (MCS0 – MCS11 NSS1/2/3, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 2.6 Gbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80/160) 802.11n 6.5 Mbps to 450 Mbps (MCS0 – MCS23 , HT 20/40)

Features

  •  Wireless Meshing:  Yes
  •  Band Steering:  Yes
  •  802.11v BSS Transition Management:  Yes
  •  802.11r Fast Roaming:  Yes
  •  802.11k Radio Resource Management (RRM):  Yes
  •  Advanced Radio Management:  Yes
  •  Passpoint (Hotspot 2.0):  Yes
  •  Captive Hotspot Portal
      Custom Branding Landing Page: Yes
      Voucher Authentication: Yes
      Payment-Based Authentication: Yes
      External Portal Server Support: Yes
      Password Authentication: Yes
      Guest Network Isolation: Yes
  •  Private Pre-Shared Key (PPSK):  Yes
  •  WiFi Speed Limiting:  Yes
  •  Client Device Isolation:  Yes
  •  WiFi Schedules:  Yes
  •  RADIUS over TLS (RadSec):  Yes
  •  Dynamic RADIUS-assigned VLAN:  Yes

Hardware

  •  Max. Power Consumption: 14W
  •  Includes PoE Adapter —
  •  Supported Voltage Range:  42.5—57V DC
  •  Networking Interface:  (1) 2.5 GbE RJ45 port
  •  Weight:  448 g (15.8 oz)
  •  Management:  Ethernet
  •  Enclosure Material:  Polycarbonate, aluminum alloy
  •  Mount Material:  Polycarbonate, galvanized steel (SGCC)
  •  LEDs System – White/Blue
  •  Channel Bandwidth:  HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)
  •  Certifications:  CE, FCC, IC
  •  NDAA Compliant – ✓
  •  Ambient Operating Temperature:  -30 to 40° C (-22 to 104° F)
  •  Ambient Operating Humidity:  5 to 95% noncondensing

Software

  • Application Requirements
      UniFi Network Version 9.0.114 and later
      UniFi OS iOS™ version 10.20.2 and later, Android™ version 10.21.7 and later
