UPS RIELLO S3T 40 XTD T4 (40000 VA)
8 540.19 €

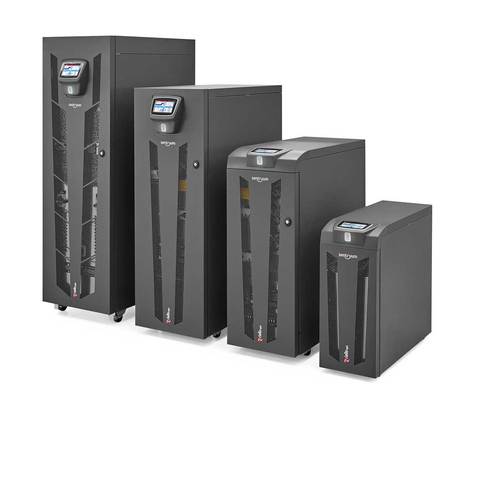

Our third generation of transformerless ON LINE UPS systems, the 10-120 kVA Sentryum rewrites the concept of flexible power by offering a choice of three compact cabinet sizes to suit the needs of any small data centre or mission-critical application.
Enhanced overload and short circuit capacity guarantee maximum availability. Incorporating a 5-inch colour touchscreen display and intuitive LED status indicator that automatically changes colour based on the UPS’s current operating state.
Mund të blihet me paraporositje
Përshkrim
S3T 40 XTD
| INPUT | |
| Rated power | 40000 VA |
| Voltage | 380 / 400 / 415 V three-phase + N |
| Voltage tolerance | 400 ±20% @ full load (for wider tolerance conditions apply) |
| Frequency tolerance | 40 – 72 Hz |
| Power factor | 0.99 |
| BY PASS | |
| Rated voltage | 380 / 400 / 415 V three-phase + N |
| Voltage tolerance | From 180 V (adjustable 180-200) to 264 V (adjustable 250-264) referring to neutral (Ph-N) |
| Rated frequency | 50 or 60 Hz (selectable) |
| Frequency tolerance | ±5% (selectable) |
| Number phases | 3 + N |
| OUTPUT and INVERTER OUTPUT | |
| Rated power | 40000 VA |
| Active power | 40000 W |
| Output current | 64 (bypass) A – 58 (inverter) A |
| Number phases | 3 + N |
| Crest factor (Ipeak/Irms) | 3 : 1 |
| Waveform | Sinusoidal |
| Static stability | ±0.5% |
| Dynamic stability | EN 62040-3 class performance 1 non-linear load |
| Frequency | 50 or 60 Hz |
| Voltage distortion with non-linear load | ≤1.5% |
| Voltage distortion with linear load | <1% |
| BATTERIES | |
| Type | VRLA AGM/GEL/NiCd/Li-ion/Supercaps |
| Type of charging | One level, Two level, Cyclic recharge (selectable) |
| ENVIRONMENTAL | |
| Color | RAL 7016 |
| Communication | UPS status led bar – Graphic touch screen display – 2 slots for communications interface USB – RS232 – Contact interface with 5x opto insulated Input and 4x Output relays |
| Protection rating | IP20 |
| Line-Interactive/Smart Active efficiency | Up to 99% |
| Noise (at 1 m) | <40 [dBA ±2] (SMART ACTIVE) |
| Remote signals | voltage free contacts |
| Operating temperature | 0 °C – +40 °C |
| Relative humidity | 5-95% non-condensing |
| Standards | European directives: LV 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility — Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant — Classification in accordance with IEC EN 62040-3 VFI – SS – 111 |
| DATA | |
| Weight | 116 kg |
| Dimensions (h w d) | 1320x440x840 mm |
