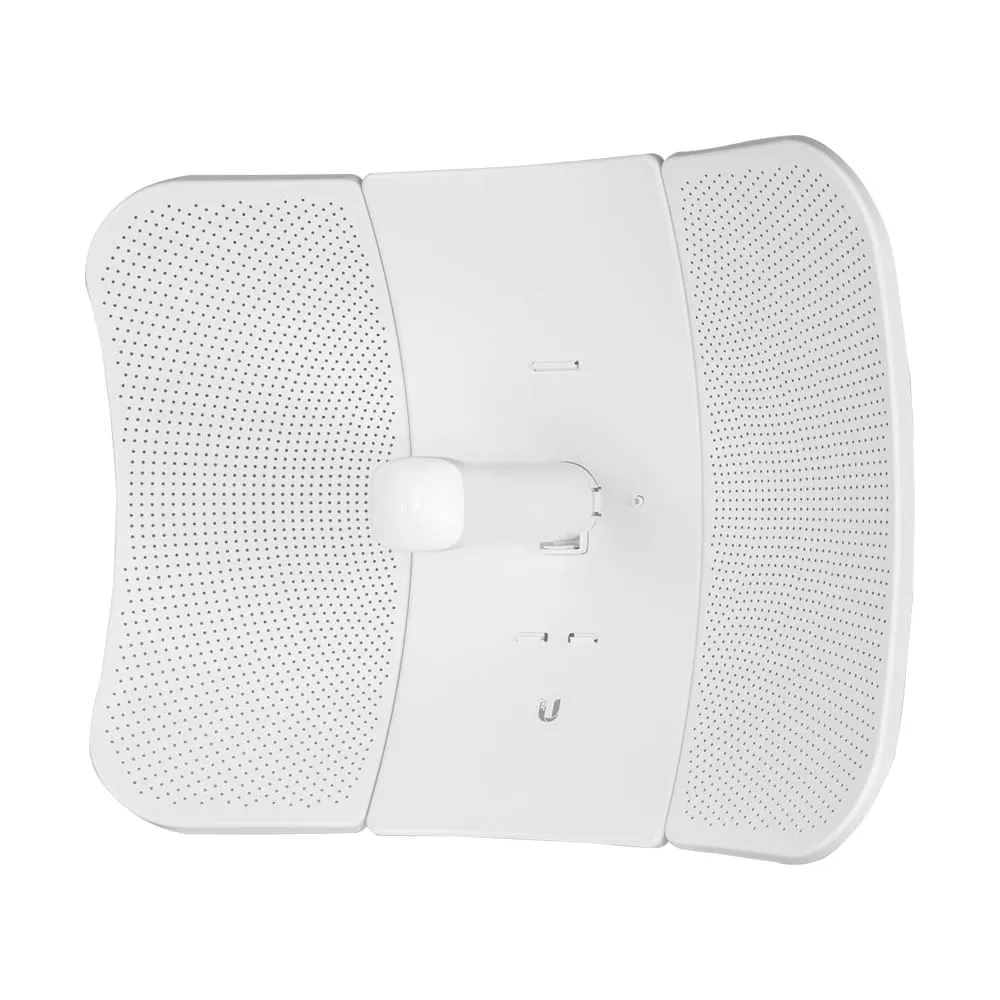

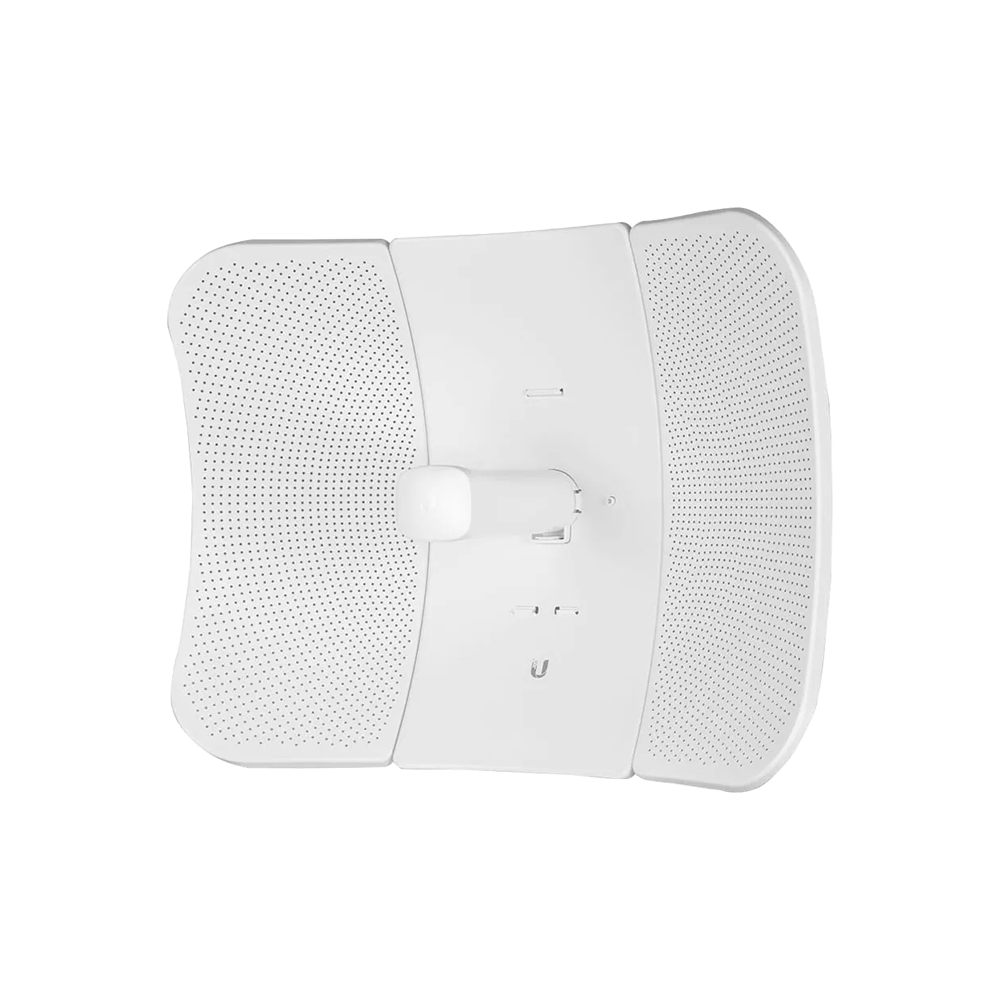

LiteBeam M5


LBE-M5-23

  • Up to 125 mph Wind Survivability
  • Outdoor UV Stabilized Plastic
  • Included Pole Mounting Kits
  • Supports Passive Power over Ethernet
  • MIPS 74K Processor
  • 64MB Memory
  • 1 x 10/100 Ethernet Ports

57.00

Snap together the LBE-M5-23 LiteBeam M5 from Ubiquiti Networks and take advantage of longer range, higher performance, and 3 axis adjustment flexibility. Operating on the license free 5 GHz frequency you can take advantage of data transfer rates of up to 100+ Mbps at distances of up to 18+ mi (30+ km). Combine the improved distance with Ubiquiti Networks own airMAX technology and you benefit from increased airtime efficiency through the use of Time Division Multiple Access or TDMA technology. Additionally, airMAX technology offers intelligent QoS and improved scalability.

SKU: 0033 Categories: , , Tag:
Wireless
Wireless Frequency
5 GHz
Sensitivity
-75 to -97 dBm
Antenna Gain
23 dBi
Transmit Power
19 to 25 dBm
Bluetooth
Yes
Throughput
100 Mb/s Total
Interface
Inputs/Outputs
1x RJ45 10/100 Mb/s Ethernet PoE (Unspecified)
Management
Mobile App Compatible
No
Hardware
RAM
64 MB
Processor
Qualcomm Atheros
CPU
Quad-Core: MIPS 74Kc
Electrical
Power Consumption
4 W
Environmental
Operating Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
5 to 95%
General
Certifications
CE, FCC, IC, RoHS
Mount Options
Pole
Range
9.3 Miles / 15 km
Dimensions
14.25 x 10.51 x 7.24″ / 362 x 267 x 184 mm
Weight
24.11 oz / 750 g
Packaging Info
Package Weight
2.61 lb
Box Dimensions (LxWxH)
11.7 x 5.45 x 4.5″
