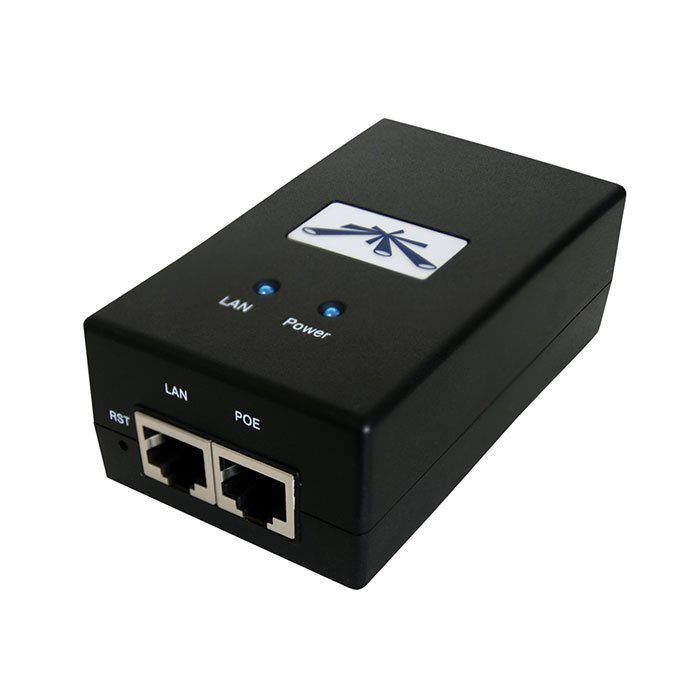

Ubiquiti Gigabit 24V PoE Injector 24W


PoE-24-24W-G

Ubiquiti Networks POE-24-24W-G is a Gigabit replacement PoE for use with Ubiquiti airFiber products. Its a 24VDC 1A, 24W model, and is designed to protect against any ESD events.

Product Features:
• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground

Product Specifications:
• Output voltage: 24VDC @ 1A
• Input voltage: 90-260VAC @ 47-63Hz
• Input current: 0.6A @ 120VAC, 0.4A @230VAC
• Efficiency: 80 %
• Output ripple: 1% Max
• Switching frequency: 65kHz
• Line regulation: /- 1%
• Load regulation: /- 3%
• Operating temperature: 32 to 104 deg F (0C to 40 deg C)
• Storage temperature: -22 to 158 deg F(-30C to 70 deg C)
• Operating humidity: 35% to 95% non condensing
• Size: 3.47 x 2.24 x 1.3in (88 x 57 x 33mm)
• Model: GP-H240-100G
UBIQUITI DATASHEET
