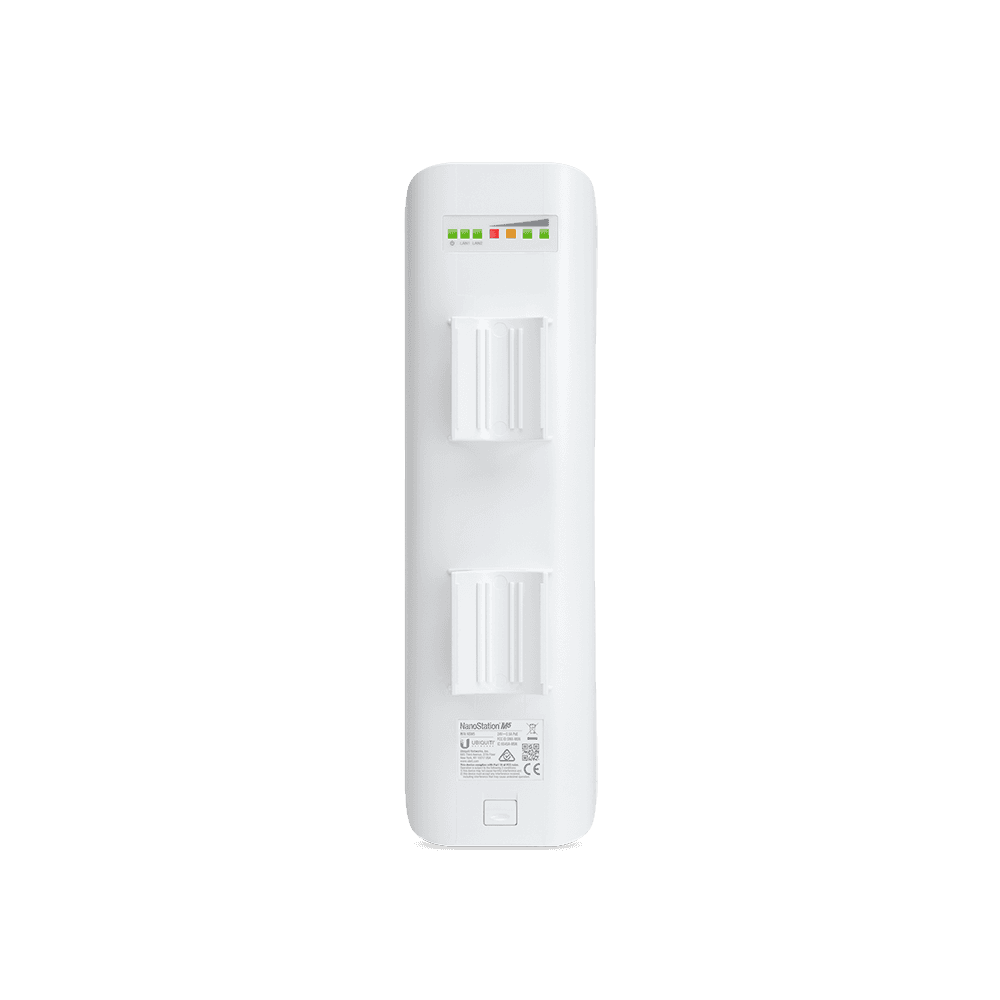

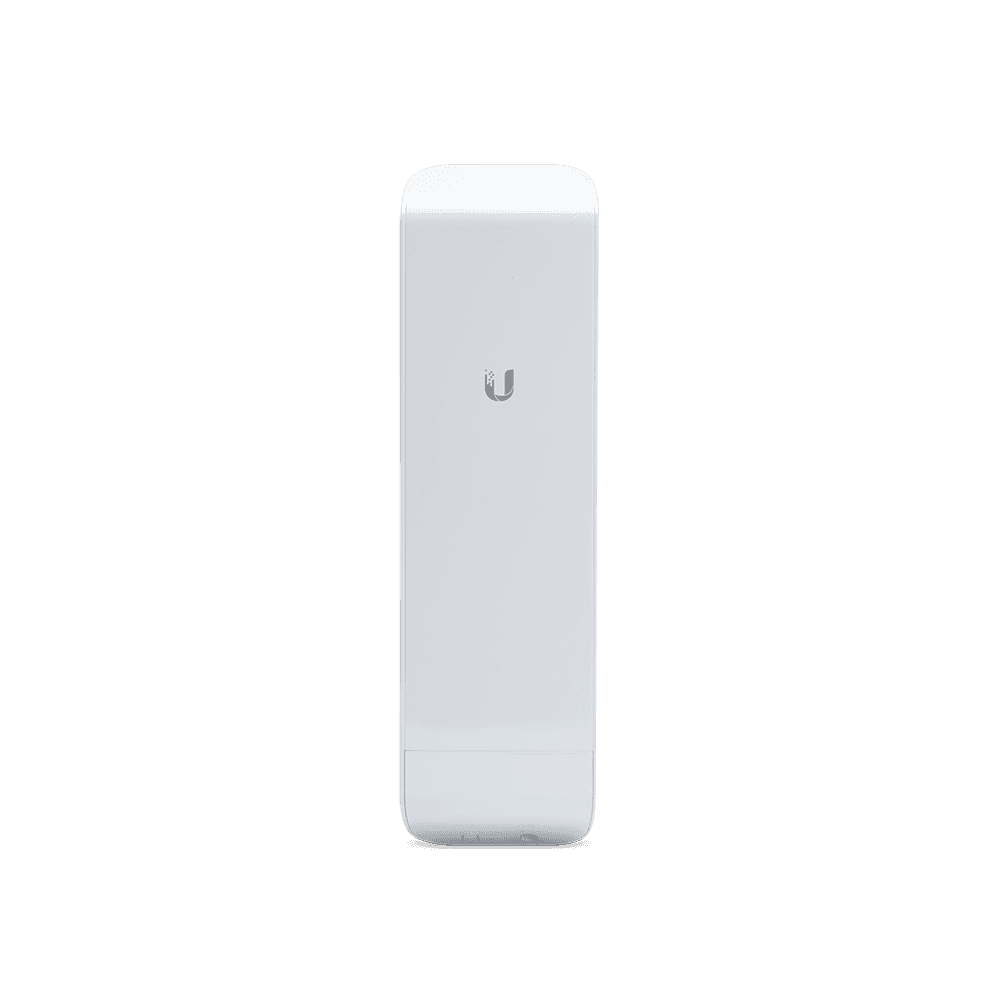

NanoStation M5

NSM5

  • 5 GHz Operating Frequency
  • 2 x 10/100 Ethernet PoE Ports
  • Indoor/Outdoor CPE
  • Works airMAX Antennas

Supporting both indoor and outdoor installation, the Ubiquiti airMAX NanoStation M5 is designed to reliably bridge networks across distances for shared internet service provider (ISP) connectivity.

This device operates using the 5 GHz band and may be mounted onto a pole using the included kit to operate as either an ISP-connected access point or remote base station. It may be powered by connecting its one of its two 10/100 Mb/s Ethernet ports to a passive PoE source such as an adapter or network switch. The airMAX NanoStation M5 may be integrated with separately purchased airMAX antennas without any complicated configuration.





Kodi i produktit : 0178 Kategori: , , Etiketë:
Wireless
Wireless Frequency
5 GHz
Number of Antennas
0
Antenna Gain
14.6 to 16.1 dBi
Bluetooth
Yes
Interface
Inputs/Outputs
2x RJ45 10/100 Mb/s Ethernet PoE (Unspecified)
Security
Lock Slot
No
Management
Mobile App Compatible
Yes: Android & iOS
Hardware
RAM
64 MB
Storage Capacity
8 MB
CPU
Single-Core: Up to 560 MHz MIPS
Electrical
DC Input Power
24 VDC at 0.5 A
Power Consumption
≤8 W
Environmental
Operating Temperature
-22 to 167°F / -30 to 75°C
Operating Humidity
5 to 95%
General
Certifications
FCC, CE, RoHS
Mount Options
Pole
Dimensions
11.6 x 3.1 x 1.2″ / 294 x 80 x 31 mm
Weight
0.9 lb / 400 g
Packaging Info
Package Weight
1.5 lb
Box Dimensions (LxWxH)
11.8 x 3.8 x 3.2″
