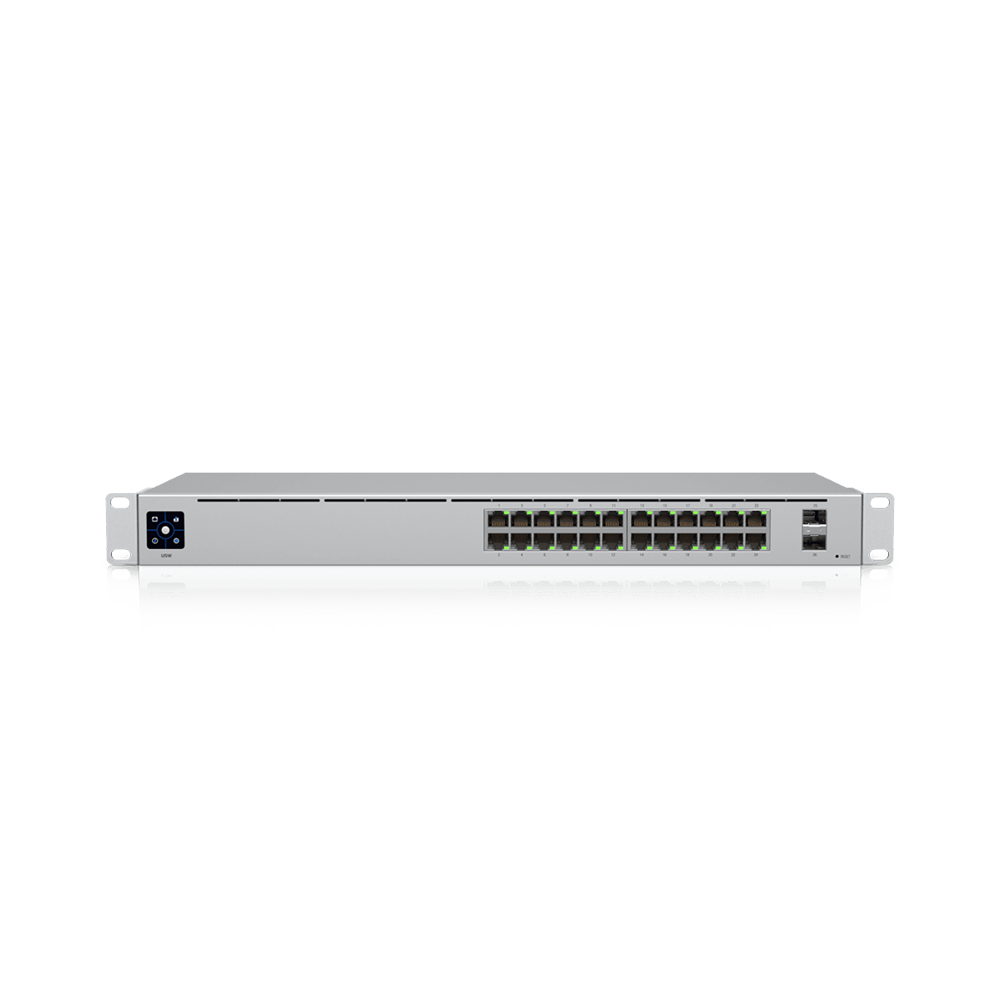

UniFi Switch Standard 24


USW-24



A 24-port, Layer 2 switch with a silent, fanless cooling system.



263.89

Koha e arritjes së produktit : 14/03/2025 - 15/03/2025

The Ubiquiti USW-24 UniFi 24-Port Cloud Managed Gigabit Switch provides 1 Gbps fibre uplink options to your enterprise network. The USW-24 features a 1.3″ touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis.

Ubiquiti UniFi USW-24 Switch key features

  • (24) GbE RJ45 ports
  • (2) 1G SFP ports
  • 1.3″ LCM colour touchscreen with AR switch management

Your USW-24 is fully provisioned to our Cloud Controller prior to dispatch, so you simply connect it to your network via an Ethernet cable and away you go! UniFi is the revolutionary WiFi system that combines enterprise performance, unlimited scalability, and a central management controller. Adding Access Points is simple! Just purchase any of the UniFi Cloud Controller Access Points to increase your WiFi network, and they will be dispatched ready to join your network. With Ubiquiti UniFi’s user management, you can see exactly who is on the network and the location of connected devices on your WiFi network. You can monitor user bandwidth and block users if required.

SKU: 2861 Category:

Product Specifications

  • Dimensions: 442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72″)
  • Weight: Without Mount: 2.70 kg (5.95 lb) / With Mount: 2.79 kg (6.15 lb)
  • Enclosure Material: SGCC Steel

Hardware

  • Total Non-Blocking Throughput: 26 Gbps
  • Switching Capacity: 52 Gbps
  • Forwarding Rate: 38.69 Mpps
  • Max. Power Consumption: 25W
  • Power Method: Universal AC Input: 100-240VAC, 50/60 Hz
  • Power Supply: AC/DC, Internal, 36W
  • Networking Interfaces: (24) 10/100/1000 Mbps Ethernet RJ45 Ports / (2) 1 Gbps SFP Ports
  • Management Interface: Ethernet In-Band
  • Modes: SMB Layer 2 Gigabit Ethernet Switch
  • ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
  • Operating Temperature: -5 to 40° C (23 to 104° F)
  • Operating Humidity: 10 – 90% Noncondensing
  • Certifications: CE, FCC, IC

LEDs

  • System: (1) Bootup Animation: Bootup in Progress / Firmware Upgrade Icon: Firmware Upgrading / Steady White: Factory Defaults, Awaiting Adoption / Steady Blue: Device is Adopted
  • Ethernet: Green: 1G, Amber: 10/100 Mbps
  • SFP: Green: 1G
