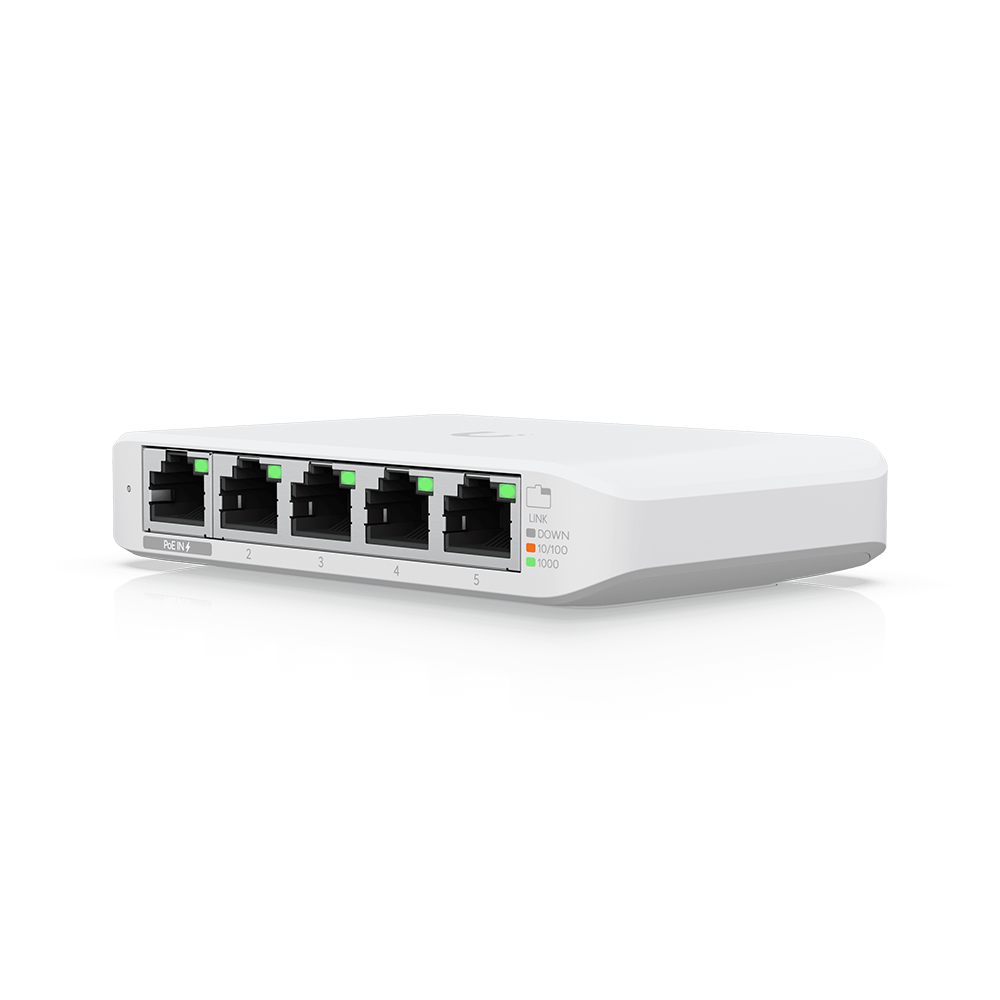

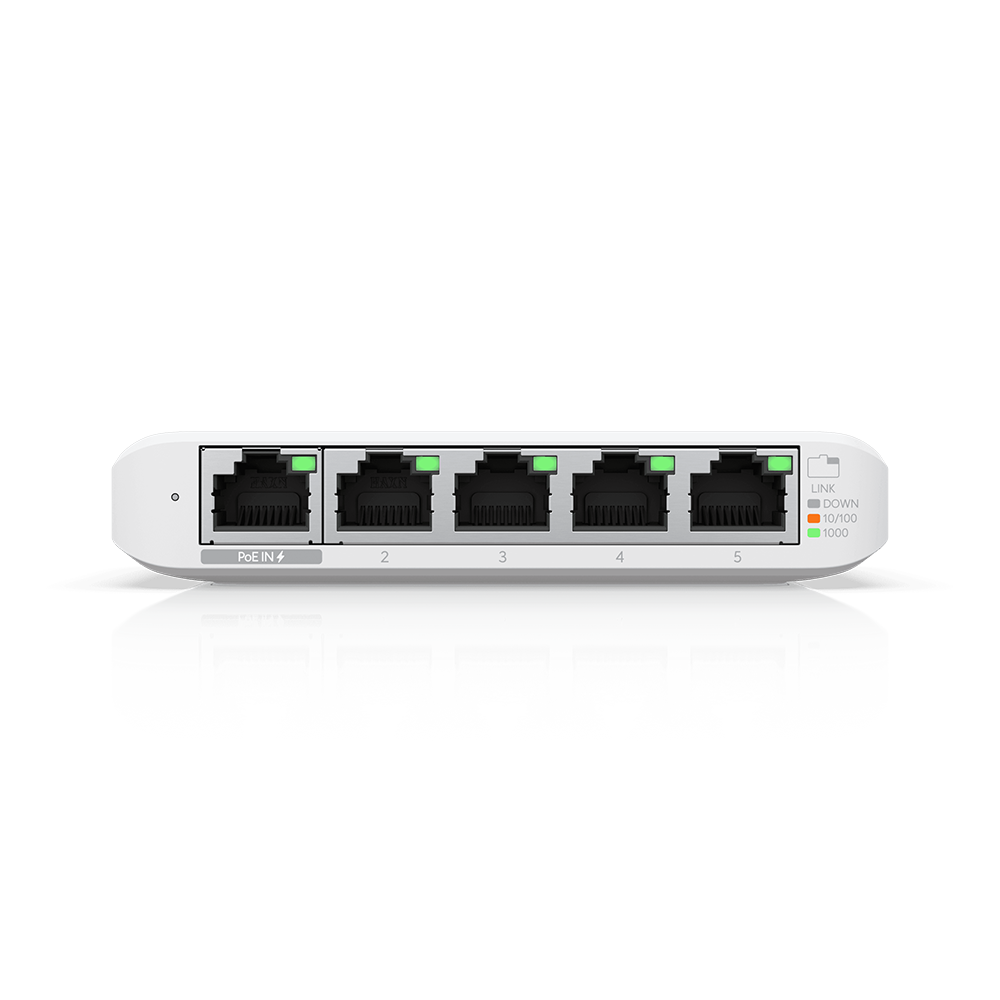

A compact, 5-port, Layer 2 switch that can be powered with PoE or a 5V USB-C adapter.
Specification
Dimensions
107 x 70 x 21 mm (4.2 x 2.8 x 0.8")
Port Layout
1 GbE RJ45
5 (1G/100M/10M)
Form Factor
Compact desktop
Switching Capacity
10 Gbps
Total Non-Blocking Throughput
5 Gbps
Forwarding Rate
7 Mpps
Supported VLANs
1,000
MAC Address Table Size
2,000
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
Max. Power Consumption
2.5W
Power Method

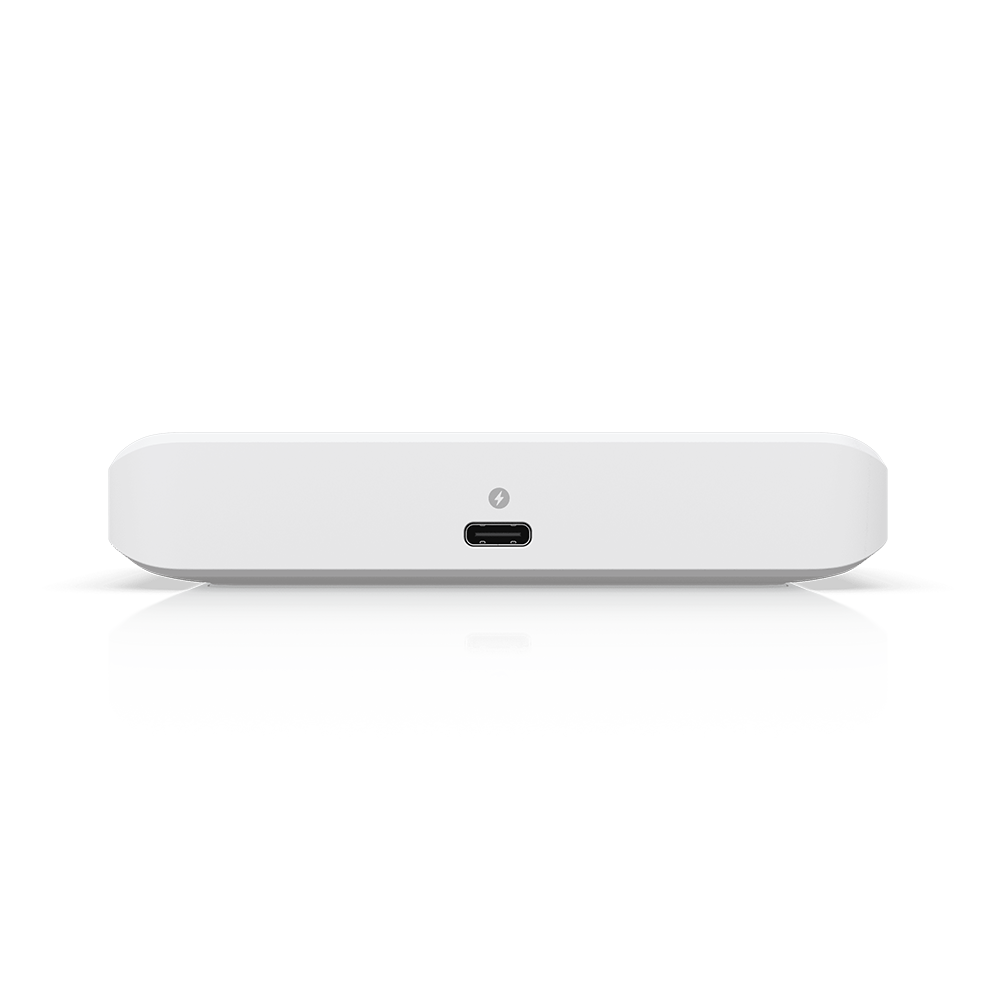

(1) USB Type-C, 5V DC, 1A (1) PoE
Power Input Method
USB Input PoE
Power Supply
AC/DC, external, 5W
Supported Voltage Range
4.8—5.2V DC/USB 44V—57V PoE
Management
Ethernet
Heat Dissipation
6.8 BTU/hr
Weight
150 g (5.3 oz)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
ESD Protection
Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature
-5 to 45° C (23 to 113° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 14501-20-08356
Application Requirements
UniFi Network
Version 5.12.5 and later
