Unifi Pro Max 24 Switch (USW-Pro-Max-24)

  • Etherlighting™ ports
  • Managed with UniFi Network 8.0.24 and later
  • DC power backup ready

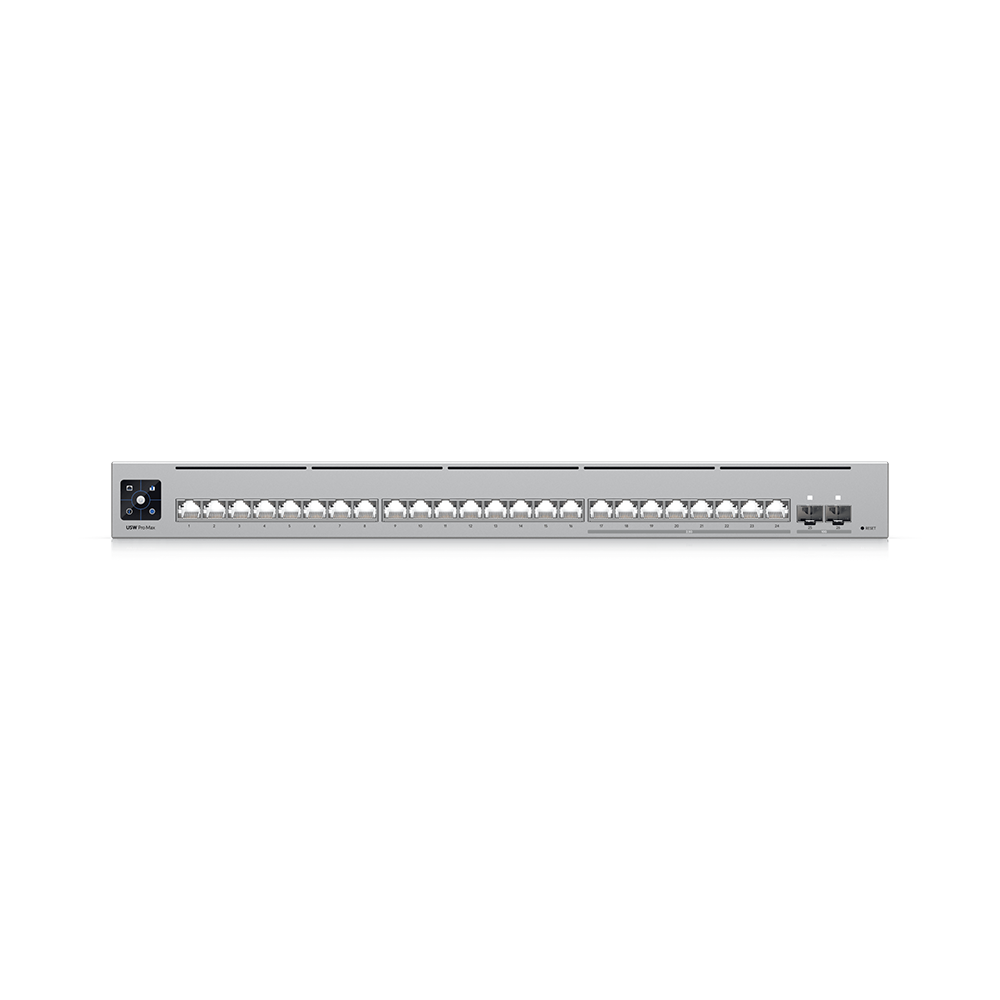

Ubiquiti Pro Max 24

Introducing the Ubiquiti Pro Max 24, a state-of-the-art Layer 3 Etherlighting™ switch featuring 24 ports, including (8) 2.5 GbE RJ45 ports, (16) GbE RJ45 ports, and (2) 10G SFP+ ports.

Ubiquiti USW-Pro-Max-24

Ubiquiti Pro Max 24 Key Features:

  • Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
  • (8) 2.5 GbE RJ45 ports
  • (16) GbE RJ45 ports
  • (2) 10G SFP+ ports
  • DC power backup ready
  • Managed with UniFi Network 8.0.24 and later

Ubiquiti USW-Pro-Max-24

The Etherlighting technology illuminates ports, providing clear visual cues for location, speed/link, and native VLAN/network status. With DC power backup readiness and seamless management through UniFi Network 8.0.24 and later, the Pro Max 24 offers a powerful and flexible networking solution for organisations seeking efficiency and scalability.

Ubiquiti USW-Pro-Max-24

Kodi i produktit : 9345 Kategori: ,

Mechanical

  • Dimensions: 442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7″)
  • Weight:
    • Without mounting brackets: 4.2 kg (9.3 lb)
    • With mounting brackets: 4.3 kg (9.5 lb)
  • Enclosure material: SGCC steel

Hardware

  • Management interface: Ethernet In-Band
  • Networking interface:
    • (16) GbE RJ45 ports
    • (8) 1/2.5 GbE RJ45 ports
    • (2) 10G SFP+ ports
  • Total non-blocking throughput: 56 Gbps
  • Switching capacity: 112 Gbps
  • Power method: Universal input, 100—240V AC, 50/60 Hz
    USP RPS DC input
  • Power supply: AC/DC, internal, 50W
  • Supported voltage range: 100—240V AC
  • Max. power consumption: 50W
  • LCM display: (1) 1.3″ touchscreen
  • Button: Factory reset
  • Operating temperature: -5 to 40° C (23 to 104° F)
  • Operating humidity: 10 to 90% noncondensing
  • Certifications: CE, FCC, IC

Etherlighting™

  • Ethernet: Locating
    Speed/link
    Native VLAN/network
  • SFP+: Locating
    Speed/link
    Native VLAN/network

LEDs

  • System: Status
  • RPS: Status

Application Requirements

  • UniFi Network: Version 8.0.24 and later
