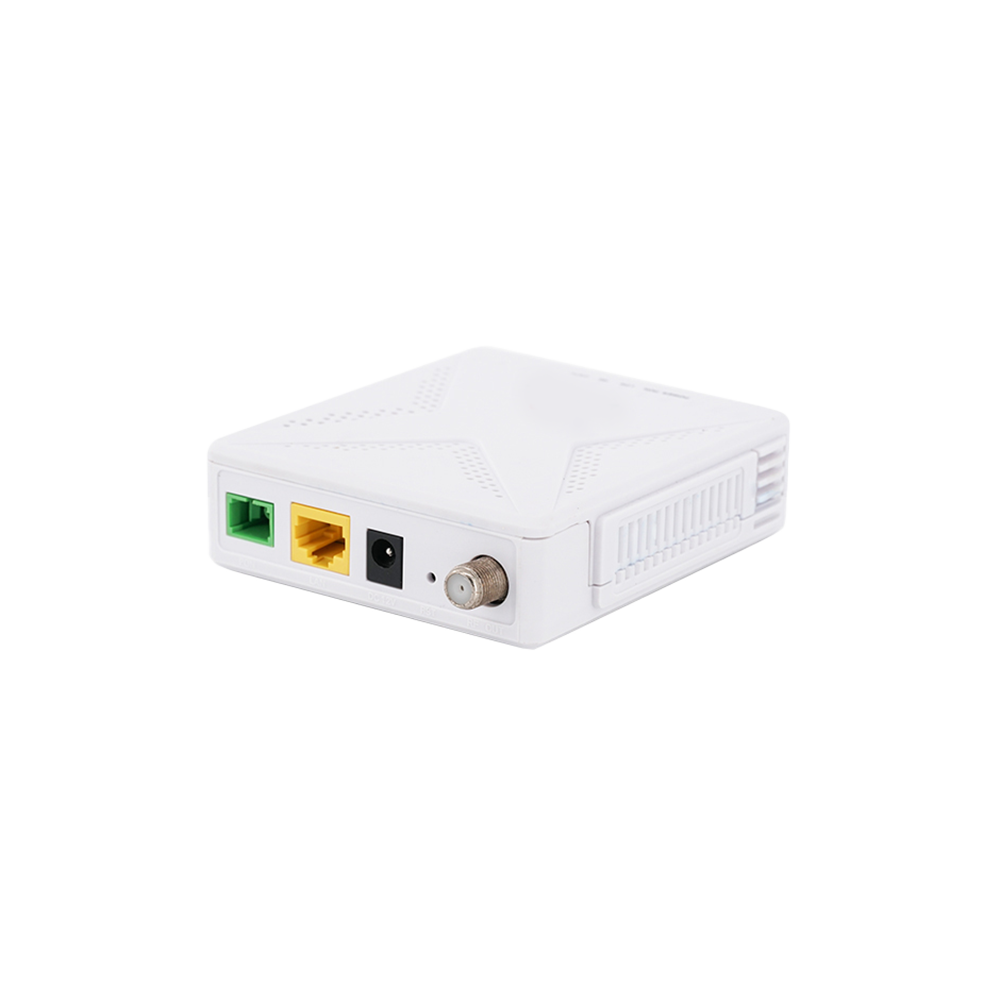

Model: V2801D-1GT1
Spec: 1*GE+CATV
Weight: 130g
| ○ Hardware Parameter | ||
| Dimension | 100mm×92mm×30mm(L×W×H) | |
| Net weight | 130g | |
| Operating condition | Operating Temp: -10 ~ +55°C
Operating Humidity: 5 ~ 95%(non-condensed) |
|
| Storing condition | Storing temp: -40 ~ +70°C
Storing humidity: 5 ~ 95% (non-condensed) |
|
| Power adapter | DC 12V, 0.5A, external AC-DC power adaptor | |
| Power supply | ≤4.2W | |
| Interface | 1GE+CATV | |
| Indicators | POWER, LOS, PON, LAN, CATV | |
| ○ Interface parameter | ||
| PON interface | l 1XPON port(EPON PX20+ and GPON Class B+)
l SC single mode, SC/APC connector l TX optical power: 0～+4dBm l RX sensitivity: -27dBm l Overload optical power: -3dBm(EPON) or -8dBm(GPON) l Transmission distance: 20KM l Wavelength: TX 1310nm, RX1490nm, CATV 1550nm |
|
| LAN interface | 1*GE Auto-negotiation RJ45 ports | |
| CATV interface | V2801D V2:
l RF Optical power : +2～-18dBm l Optical receiving wavelength: 1550±10nm l RF frequency range: 47～1000MHz l RF output impedance: 75Ω l RF output level: ≥ 70dBuV(0～-15dBm) l AGC range: 0～-15dBm l MER: ≥32dB(-14dBm optical input) |
V2801D V3:
l RF Optical power : 0～-3dBm l Optical receiving wavelength: 1550±10nm l RF frequency range: 47～1000MHz l RF output impedance: 75Ω l RF output level: ≥ 60dBuV（0~-3dBm） l AGC range: not support l MER: ≥32dB(0~-3dBm optical input) |
| ○ Function Data | |
| PON Mode | XPON Dual Mode |
| Uplink Mode | Bridging and Routing Mode
Well connect with OLTs of mainstream |
| CATV | Support CATV Rmote management |
| Standard | l Support CTC OAM 2.1 and 3.0
l Support ITUT984.x OMCI |
| Layer2 | l 802.1D & 802.1ad bridging
l 802.1p CoS l 802.1Q VLAN |
| Layer3 | l IPv4
l DHCP Client/Server l PPPoE, NAT, DMZ, DDNS |
| Multicast | IGMP v2/v3, IGMP snooping |
| Security and Firewall | l Prevent Rogue ONU
l DDOS, Filtering Based on ACL/MAC/URL |
| O&M | Support EMS\WEB\Telnet\CLI and unified network management of VSOL OLT |
