GPS Tracker

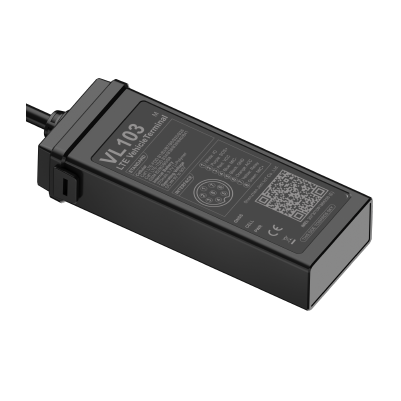

VL103M – 4G Multifunctional Vehicle Tracker
Compact in size, yet packed with various features, the VL103M is a powerful GPS tracker designed to handle industrial and commercial fleet applications ranging from rental agencies and public transportation to freight transport and beyond. The device also features an external buzzer/horn alarm that makes it easy to locate your car in case you can’t find it, further adding to the security of your fleet. In addition to these features, remote listen-in and the suite of event-triggered alerts will make the VL103M a valuable part of your fleet management strategy.
66.39 €
Koha e arritjes së produktit : 21/06/2025 - 23/06/2025
GPS & BDS & LBS Positioning
A synergy of multiple positioning systems ensures that locations are accurately displayed on the cloud platform.
External Buzzer/Horn Supported
Warn the driver once the tracker detects speeding or fatigue driving, and it also supports audible/light warnings to search for vehicles.
Low Voltage Alert
You’ll be alerted via SMS when the motorcycle battery voltage is lower than the threshold.
Multiple Alerts
Instant alerts for atypical events such as abnormal vibration, speeding, geo-fence entry/exit, etc.
Remote Listen-In
Inconspicuous mic allows for remote audio monitoring of the environment around the device.
IP66 Dust & Water Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
| GNSS | |
| Positioning system | GPS+BDS+LBS |
| Positioning accuracy | ＜2.5m CEP |
| Tracking sensitivity | -165dBm |
| Acquisition sensitivity | -148dBm |
| TTFF (open sky) | Avg. hot start ≤1sec Avg. cold start ≤32sec |
| Cellular | |
| Communication network | LTE Cat 1/GSM |
| Frequency | VL103M (L) LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28 GSM: B2/B3/B5/B8VL103M (E) LTE-FDD: B1/B3/B7/B8/B20/B28 LTE-TDD: B34/B38/B39/B40/B41 GSM: B2/B3/B5/B8 |
| Power | |
| Battery | 270mAh/3.7V industrial-grade Li-Polymer battery |
| Input voltage | 9-90VDC |
| Interface | |
| LED indication | GNSS (Blue), Cellular (Yellow), Power (Red) |
| SIM | Micro-SIM |
| Data storage | 16+16Mb |
| Digital inputs | ACC, SOS |
| Digital outputs | Relay, IO for buzzer/horn output |
| Physical specification | |
| Dimensions | 92.0 x 40.0 x 20.0mm |
| Weight | 55g |
| Operating environment | |
| Operating temperature | –20℃ to +70℃ |
| IP rating | IP66 |
| Feature | |
| Sensors | Accelerometer |
| Scenarios | Vibrating alert, Speeding alert, SOS call, Tamper alert, Geo-fence entry/exit alert, Vehicle battery detection |
